Main Dimensions & Performance Data
| d | 20 mm | Inner diameter bearing |
| D | 55 mm | Outside diameter bearing |
| T | 20 mm | Height |
| Ca | 75,100 N | Basic dynamic load rating, axial |
| C0a | 376,000 N | Basic static load rating, axial |
| ≈m | 0.26 kg | Weight |
Mounting dimensions
| r1smin | 1 mm | Edge Spacing |
| r2smin | 0.3 mm | Edge Spacing |
| da max | 40 mm | Connection measure Inner ring |
| Da min | 38 mm | Housing Connection Diameter |

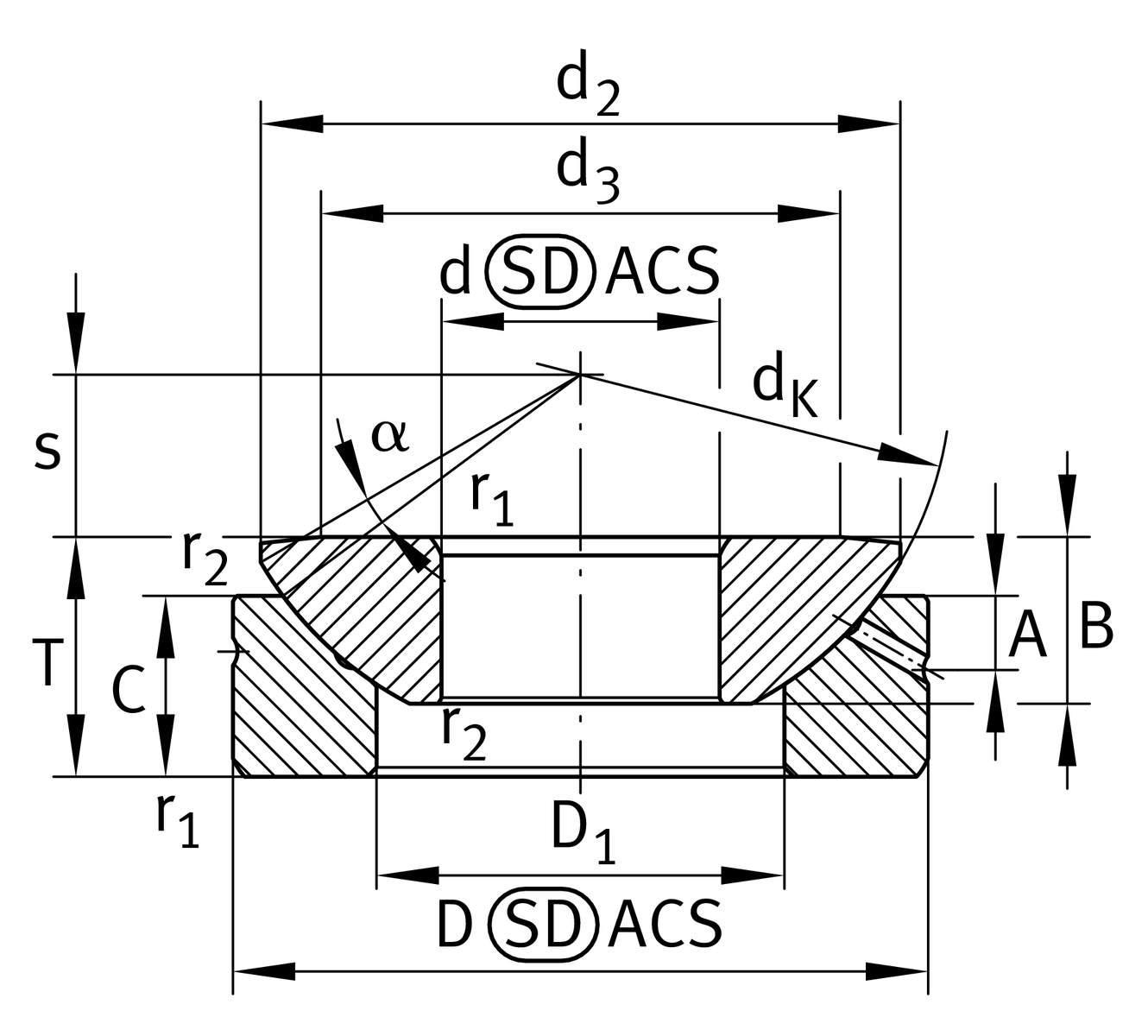

Dimensions
| dK | 60 mm | Ball diameter |
| d3 | 40 | Front surface diameter of shaft washer |
| D1 | 33.5 mm | Inner diameter of housing washer |
| B | 14.3 mm | Width Inner ring |
| C | 13 mm | Width Outer ring |
| s | 12.5 mm | Plane Surface Spacing |
| A | 6 mm | Distance lubrication Bore |
| α | 6 ° | Tilt angle |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0.01 mm | Bore diameter bearing, lower tolerance |
| DOT | 0 mm | Outer diameter, upper tolerance |
| DUT | -0.013 mm | Outside diameter, lower tolerance |
| TOT | 0 mm | Height, upper tolerance |
| TUT | -0.4 mm | Height, lower tolerance |
| CUT | 0 mm | Width outer ring, upper tolerance |
| COT | -0.24 mm | Width outer ring, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| BUT | -0.24 mm | Width inner ring, lower tolerance |
| d2 | 50 mm | Connection measure Inner ring |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
