GE20-AW

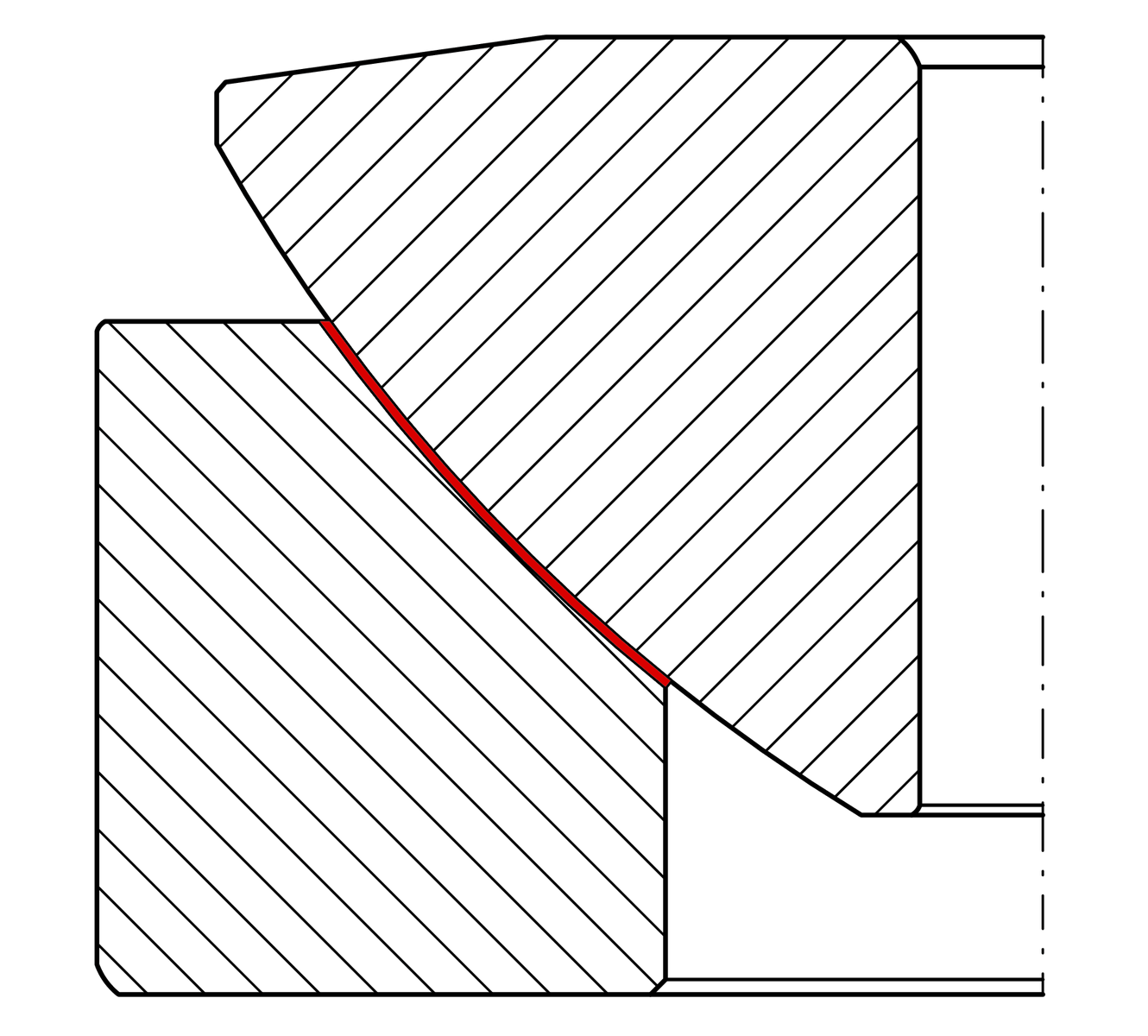

Spherical plain bearing GE20-AW
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
20 mm
Bore diameter bearing
D
55 mm
Outside diameter bearing
T
20 mm
Height
B
14.3 mm
Width Inner ring
Ca
225,000 N
Basic dynamic load rating, axial
C0a
376,000 N
Basic static load rating, axial
≈m
0.26 kg
Weight

Mounting dimensions
r1smin
1 mm
Edge Spacing
r2smin
0.3 mm
Edge Spacing

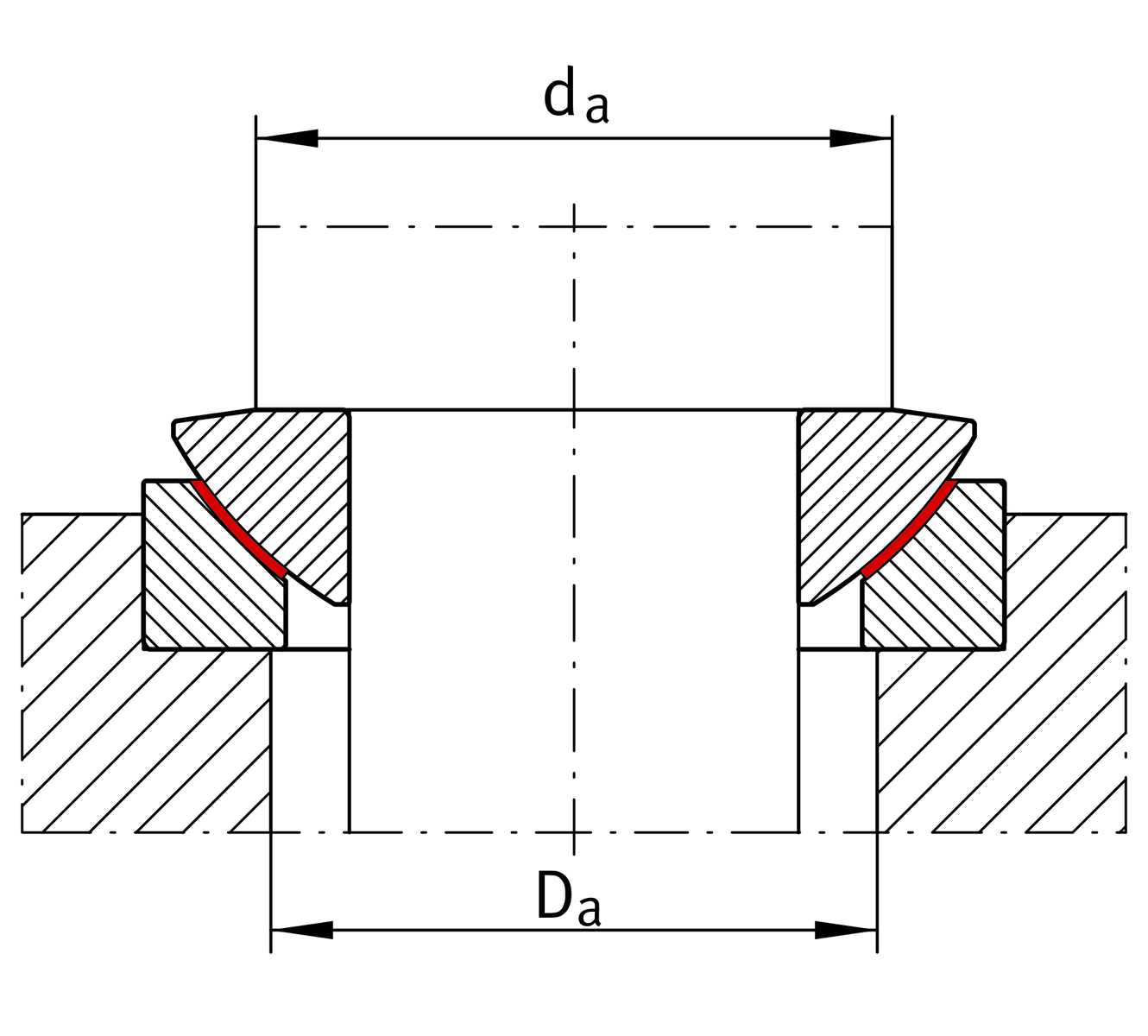

da max
40 mm
Connection measure Inner ring
Da min
38 mm
Housing Connection Diameter

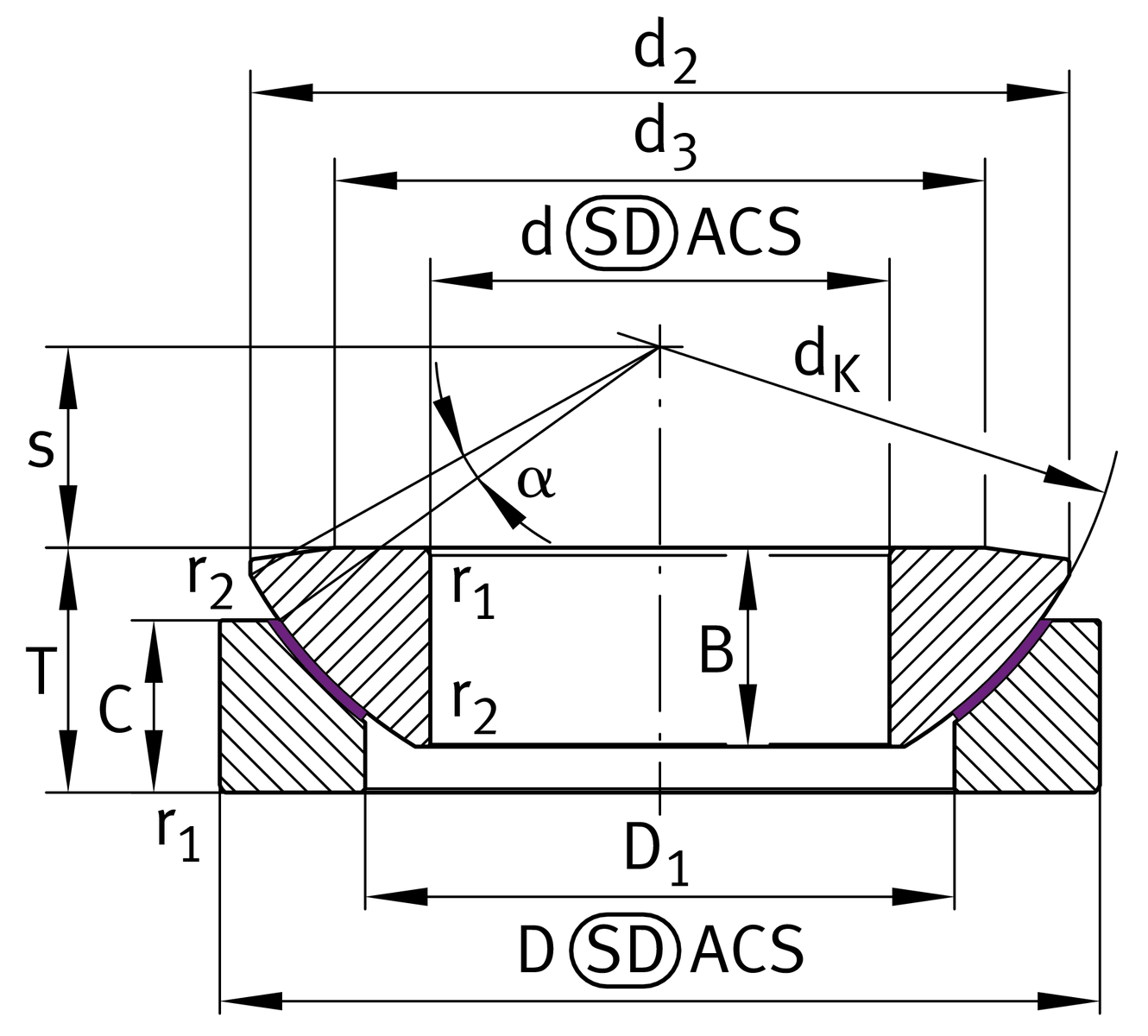

Dimensions
dK
60 mm
Ball diameter
d2
50 mm
Outer eye diameter
d3
40 mm
Front surface diameter of shaft washer
D1
33.5 mm
Bore diameter of housing washer
C
13 mm
Width Outer ring
s
12.5 mm
Plane Surface Spacing
α
6 °
Tilt angle
dOT
0 mm
Bore diameter bearing, upper tolerance
dUT
-0.01 mm
Bore diameter bearing, lower tolerance
DOT
0 mm
Outside diameter, upper tolerance
DUT
-0.013 mm
Outside diameter, lower tolerance
TOT
0 mm
Height, upper tolerance
BOT
0 mm
Width inner ring, upper tolerance
TUT
-0.4 mm
Height, lower tolerance
BUT
-0.24 mm
Width inner ring, lower tolerance
COT
0 mm
Width outer ring, upper tolerance
CUT
-0.24 mm
Width outer ring, lower tolerance

Temperature range
Tmin
-50 °C
Operating temperature min.
Tmax
150 °C
Operating temperature max.
