FAG INA Schaeffler
INA
GRA012-NPP-B-AS2/V
Radial insert ball bearing GRA012-NPP-B-AS2/V
Thêm vào yêu cầu báo giá

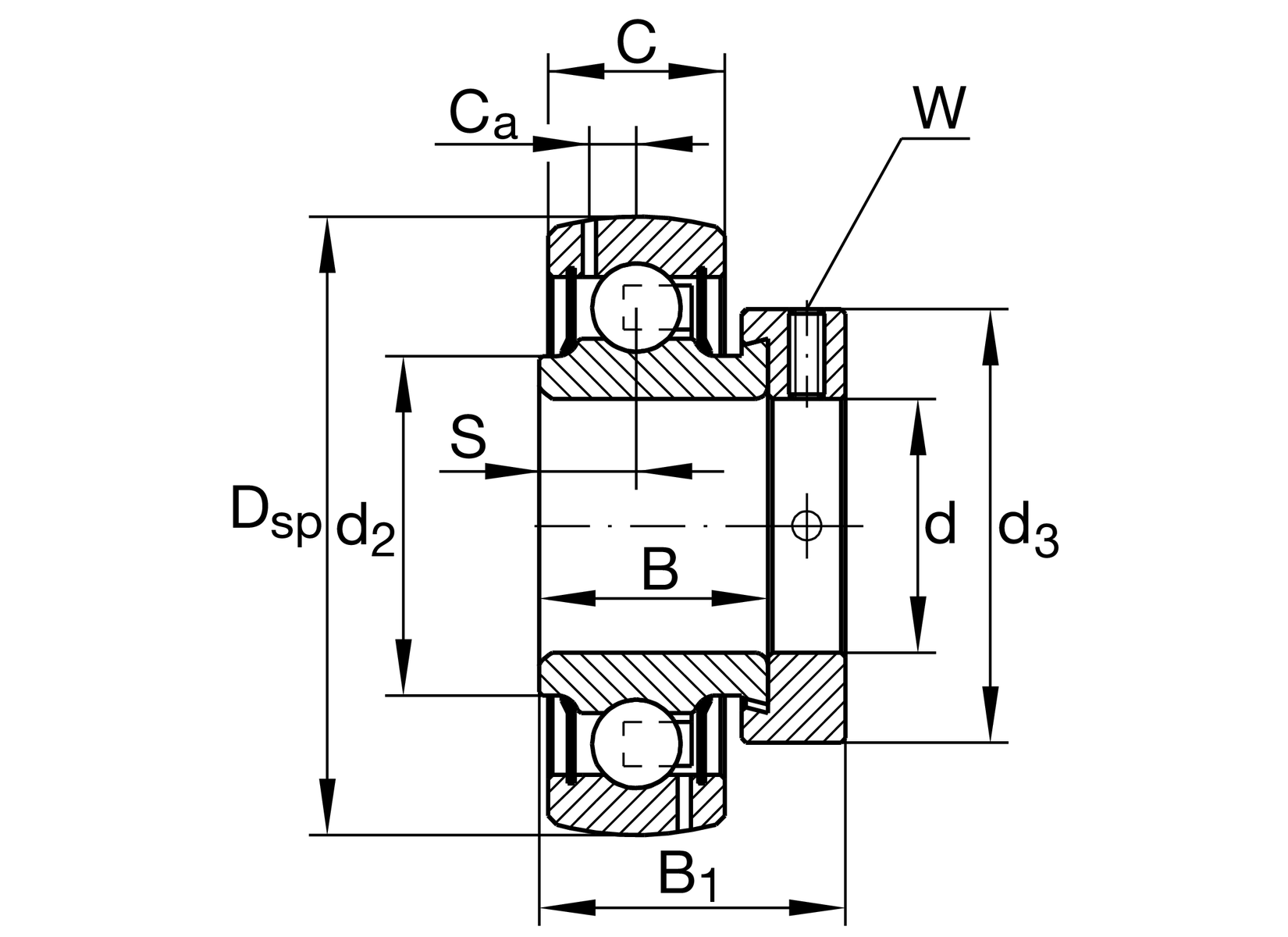

Main Dimensions & Performance Data
d
19.05 mm
Bore diameter
d
19.05 mm
Bore diameter, inch
DSP
47 mm
Outside diameter
B1
31 mm
Locking collar total width
B
21.4 mm
Width
Cur
345 N
Fatigue load limit, radial
Cr
13,600 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
≈m
161 g
Weight

Dimensions
C
14 mm
Width, outer ring
S
7.5 mm
Distance raceway
d2
26.9 mm
Rib diameter sealing inner ring
Ca
3.9 mm
Distance to lubrication hole
d3
33 mm
Outside diameter locking collar/locknut
W
3.175 mm
Width across flats (Inch)

Calculation factors
f0
13.1
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
