FAG INA Schaeffler
INA
GRA010-NPP-B-AS2/V
Radial insert ball bearing GRA010-NPP-B-AS2/V
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
15.875 mm
Bore diameter
d
15.875 mm
Bore diameter, inch
DSP
40 mm
Outside diameter
B1
28.6 mm
Locking collar total width
B
19 mm
Width
Cur
248 N
Fatigue load limit, radial
Cr
10,100 N
Basic dynamic load rating, radial
C0r
4,750 N
Basic static load rating, radial
≈m
114.5 g
Weight

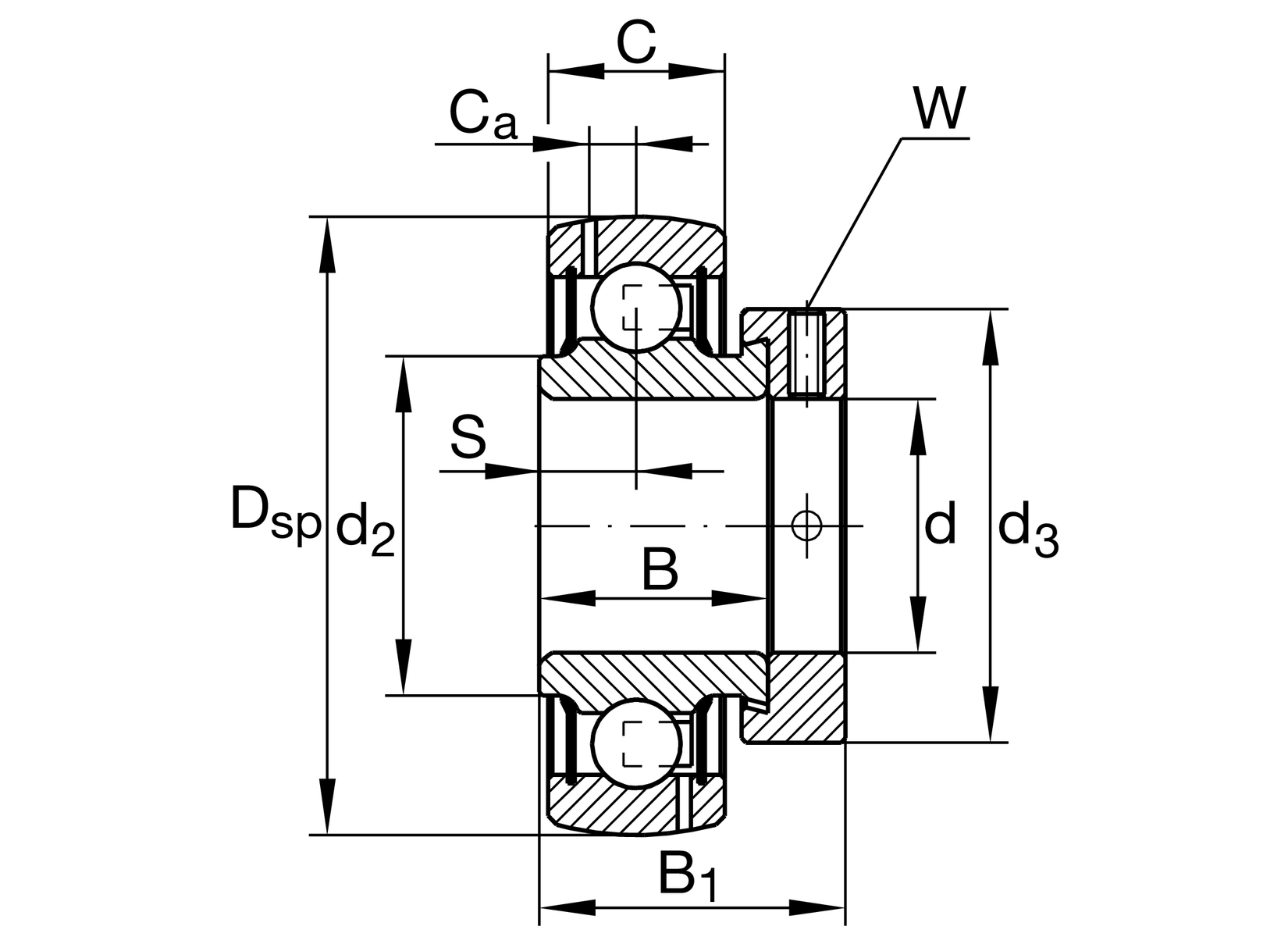

Dimensions
C
12 mm
Width, outer ring
S
6.5 mm
Distance raceway
d2
23 mm
Rib diameter sealing inner ring
Ca
3.4 mm
Distance to lubrication hole
d3
28 mm
Outside diameter locking collar/locknut
W
3.175 mm
Width across flats (Inch)

Calculation factors
f0
13
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
