FAG INA Schaeffler
FAG
UKFL218
Flanged housing unit UKFL218
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
80 mm
Bore diameter
L
205 mm
Flange width
H
320 mm
Height flange
Cr
102,000 N
Basic dynamic load rating, radial
C0r
72,000 N
Basic static load rating, radial
Cur
3,350 N
Fatigue load limit, radial
≈m
10.9 kg
Weight

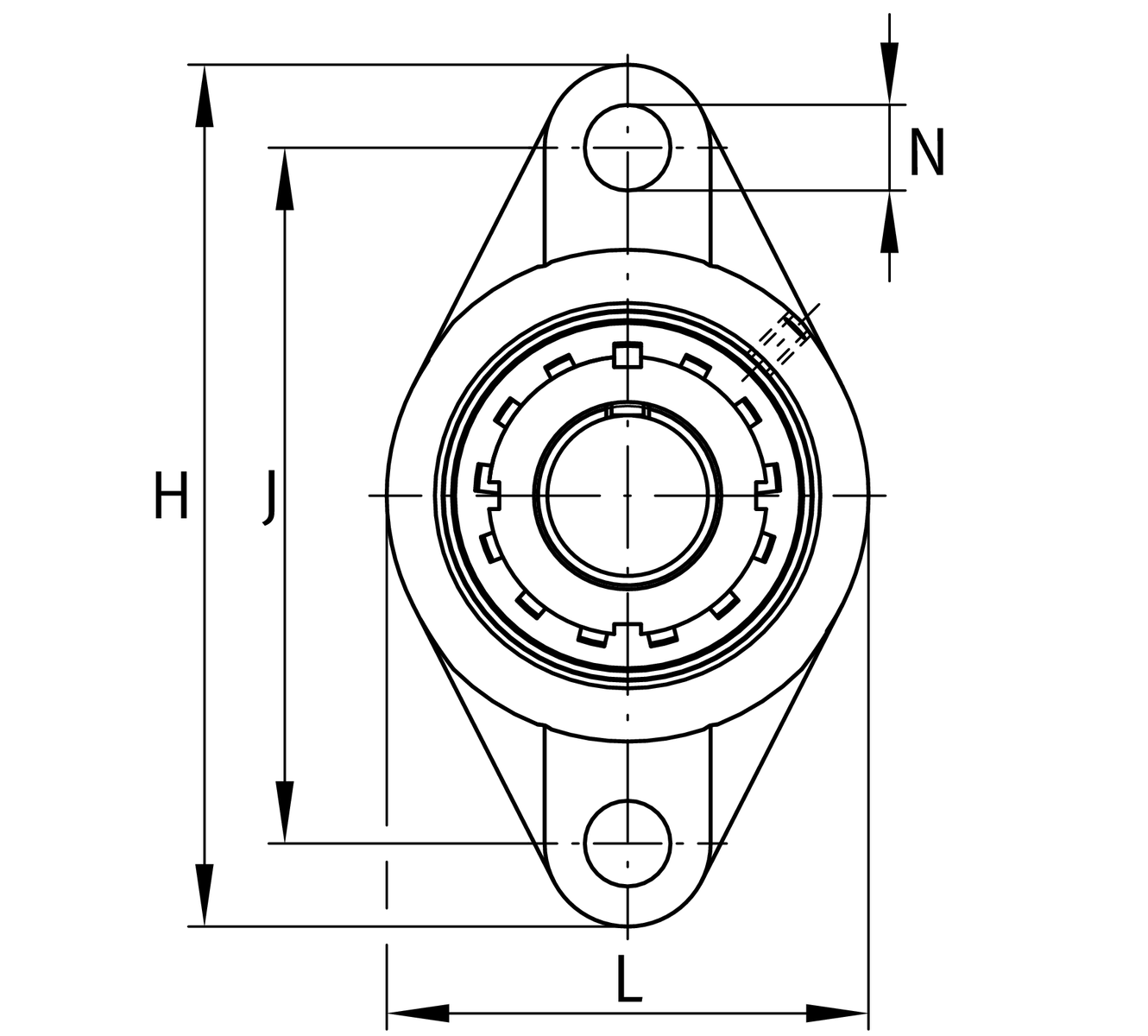

Mounting dimensions
J
265 mm
Distance fixing bore
N
25 mm
Fixing bore
n
2
Number of screwing holes

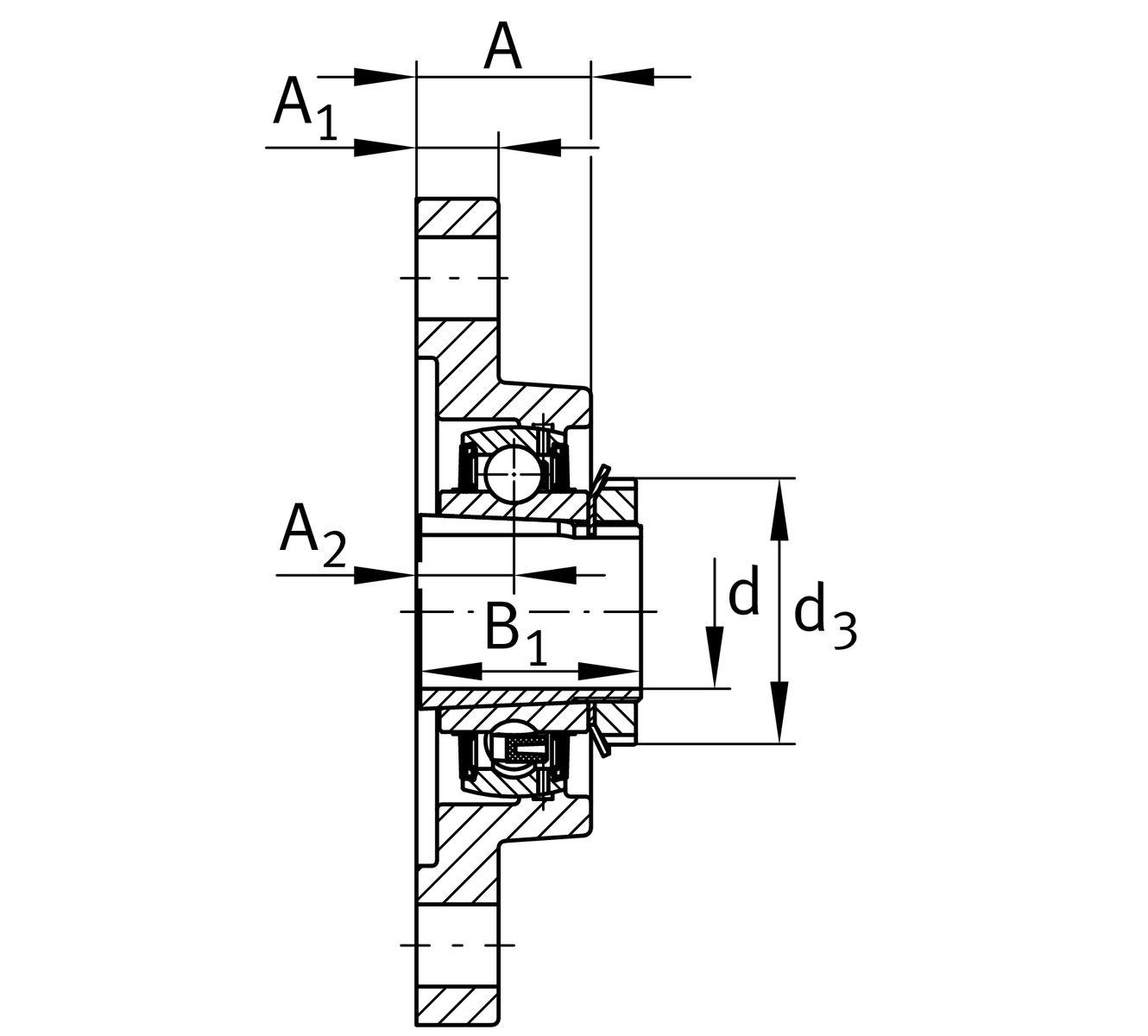

Dimensions
A
68 mm
Height housing
A1
26 mm
Thickness of flange
A2
40 mm
Distance raceway
B
51 mm
Width
B1
86 mm
Locking collar total width
d3
120 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
FL218
Housing
UK218
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
