Main Dimensions & Performance Data
| d | 75 mm | Bore diameter |
| L | 190 mm | Flange width |
| H | 305 mm | Height flange |
| Cr | 88,000 N | Basic dynamic load rating, radial |
| C0r | 64,000 N | Basic static load rating, radial |
| Cur | 3,050 N | Fatigue load limit, radial |
| ≈m | 9.12 kg | Weight |

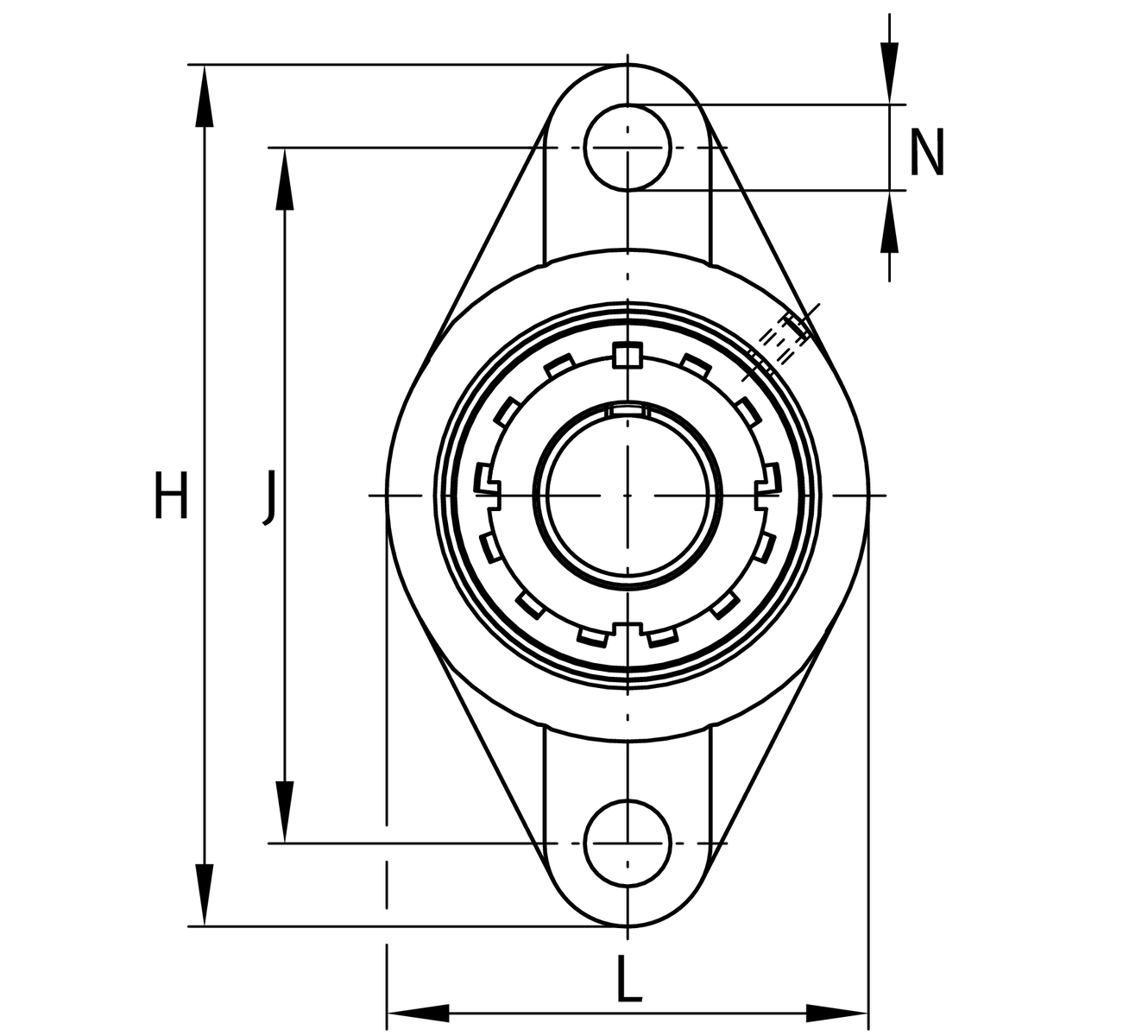

Mounting dimensions
| J | 248 mm | Distance fixing bore |
| N | 25 mm | Fixing bore |
| n | 2 | Number of screwing holes |

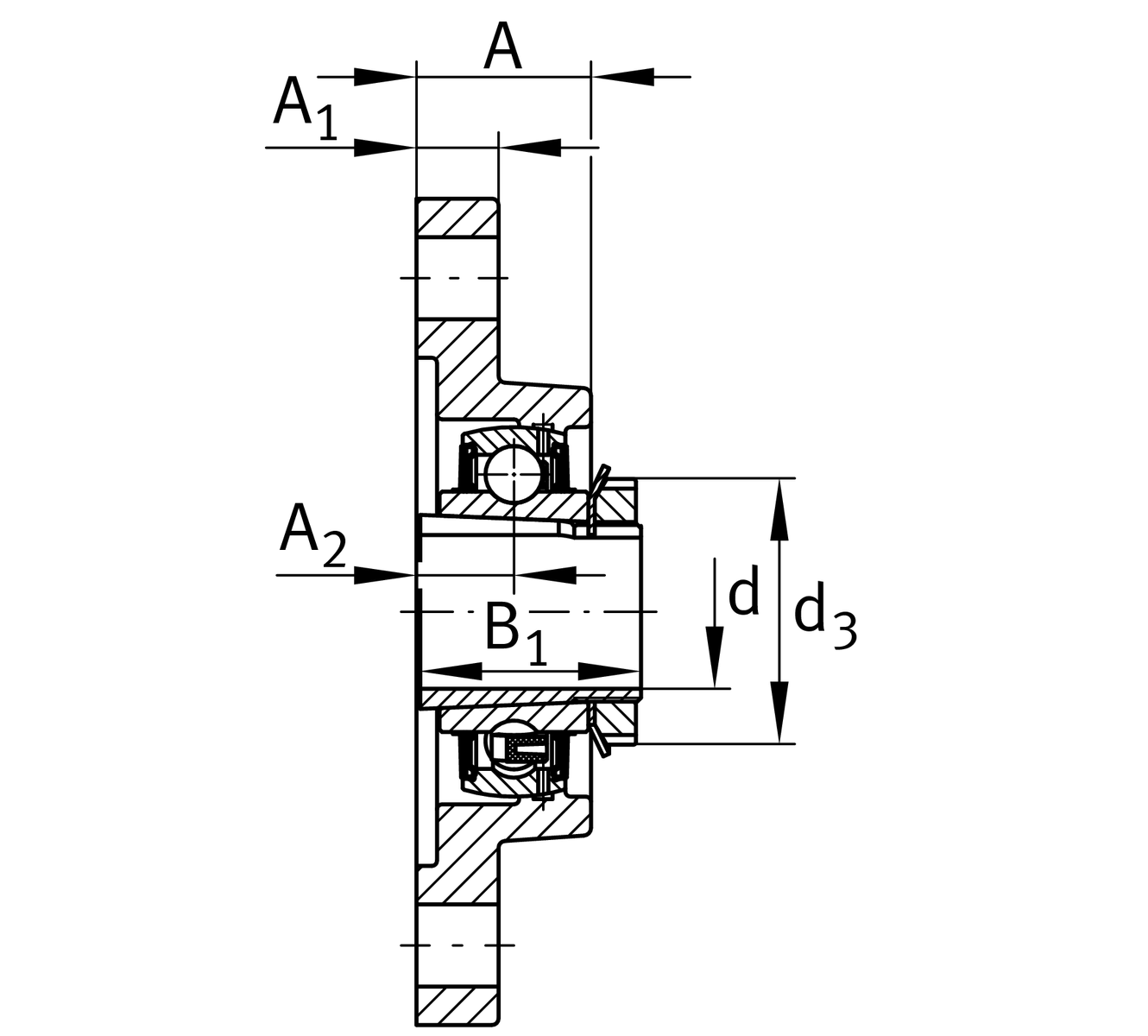

Dimensions
| A | 63 mm | Height housing |
| A1 | 26 mm | Thickness of flange |
| A2 | 36 mm | Distance raceway |
| B | 48 mm | Width |
| B1 | 82 mm | Locking collar total width |
| d3 | 110 mm | Outside diameter eccentric locking collar |
Additional information
1 | Number of housings | |
FL217 | Housing | |
UK217 | Bearing designation |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Material | GG | Grey cast iron |
