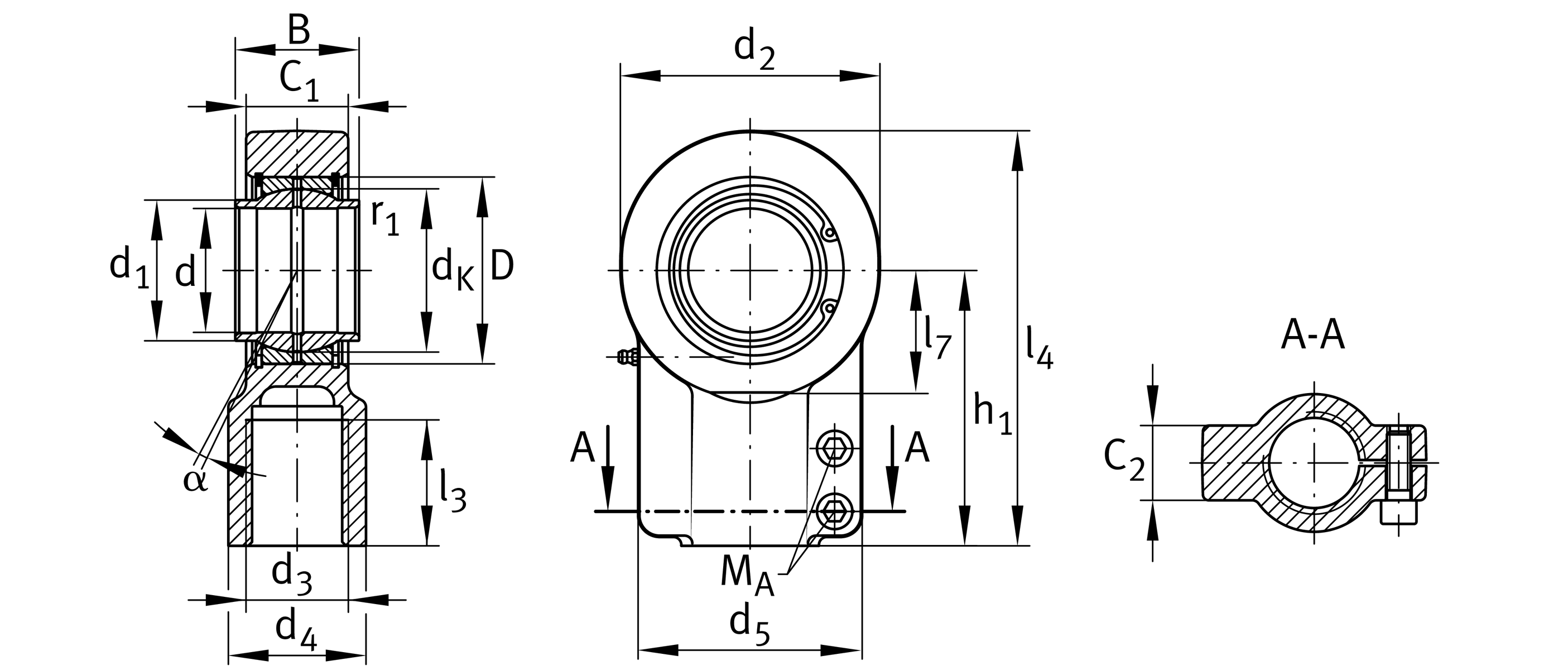

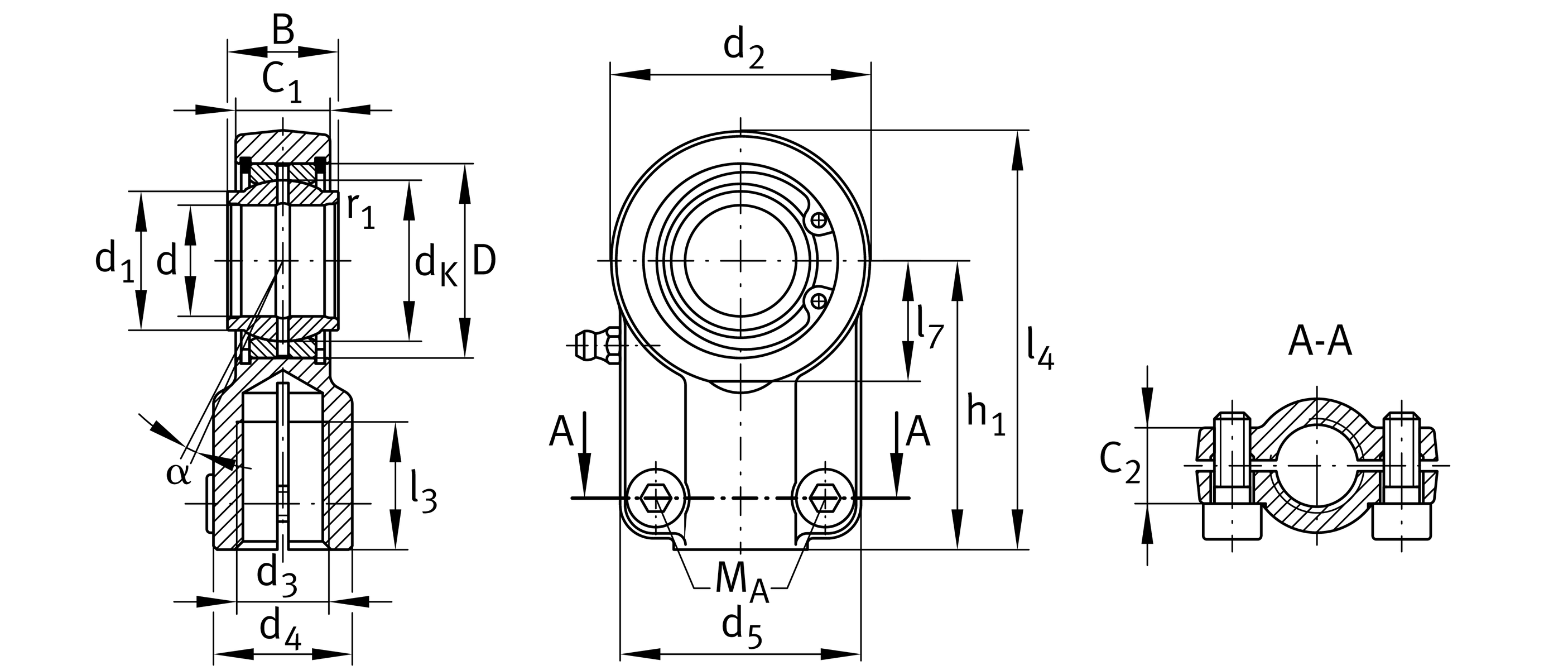

Main Dimensions & Performance Data
| Cr | 17,700 N | Basic dynamic load rating, radial |
| C0r | 35,400 N | Basic static load rating, radial |
| d | 16 mm | Bore diameter bearing |
| d2 | 40 mm | Outer eye diameter |
| l4 | 64 mm | Total length internal thread head |
| D | 28 mm | Outside diameter bearing |
| B | 16 mm | Width inner ring |
| ≈m | 0.193 kg | Weight |
Dimensions
| α | 4 ° | Tilt angle |
| C1 | 13 mm | Width of the rod end |
| C2 | 13 mm | Width |
| dK | 23 mm | Ball diameter |
| d3 | M14x1,5 | Thread size |
| d4 | 21 mm | Shank diameter |
| d5 | 40 mm | Shank diameter, large |
| d 7 | M6x16 | Diameter |
| h1 | 44 mm | Shank Length Internal thread head |
| l3 | 19 mm | Thread length Internal thread |
| l7 | 18 mm | Distance drilling with/shaft start |
| dUT | 0 mm | Bore diameter bearing, lower tolerance |
| dT | H7 | Bore diameter bearing, tolerance |
| dOT | 0.018 mm | Bore diameter bearing, upper tolerance |
| BUT | -0.18 mm | Width inner ring, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| MA | 13 Nm | Tightening torque |
| FZ | 12,500 N | Cylinder Force |
| Gr | 0,03 - 0,082 | Radial Clearance |
| Grmin | 0.03 mm | Radial clearance, minimum |
| Grmax | 0.082 mm | Radial clearance, maximum |
Mounting dimensions
| r1smin | 0.3 mm | Edge Spacing |
| d1 | 20 mm | Outer flange diameter inner ring |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without |
