Main Dimensions & Performance Data
| Cr | 952,000 N | Basic dynamic load rating, radial |
| C0r | 1,390,000 N | Basic static load rating, radial |
| d | 125 mm | Bore diameter bearing |
| d2 | 265 mm | Outer eye diameter |
| l4 | 405 mm | Total length internal thread head |
| D | 180 mm | Outside diameter bearing |
| B | 125 mm | Width inner ring |
| ≈m | 45.22 kg | Weight |

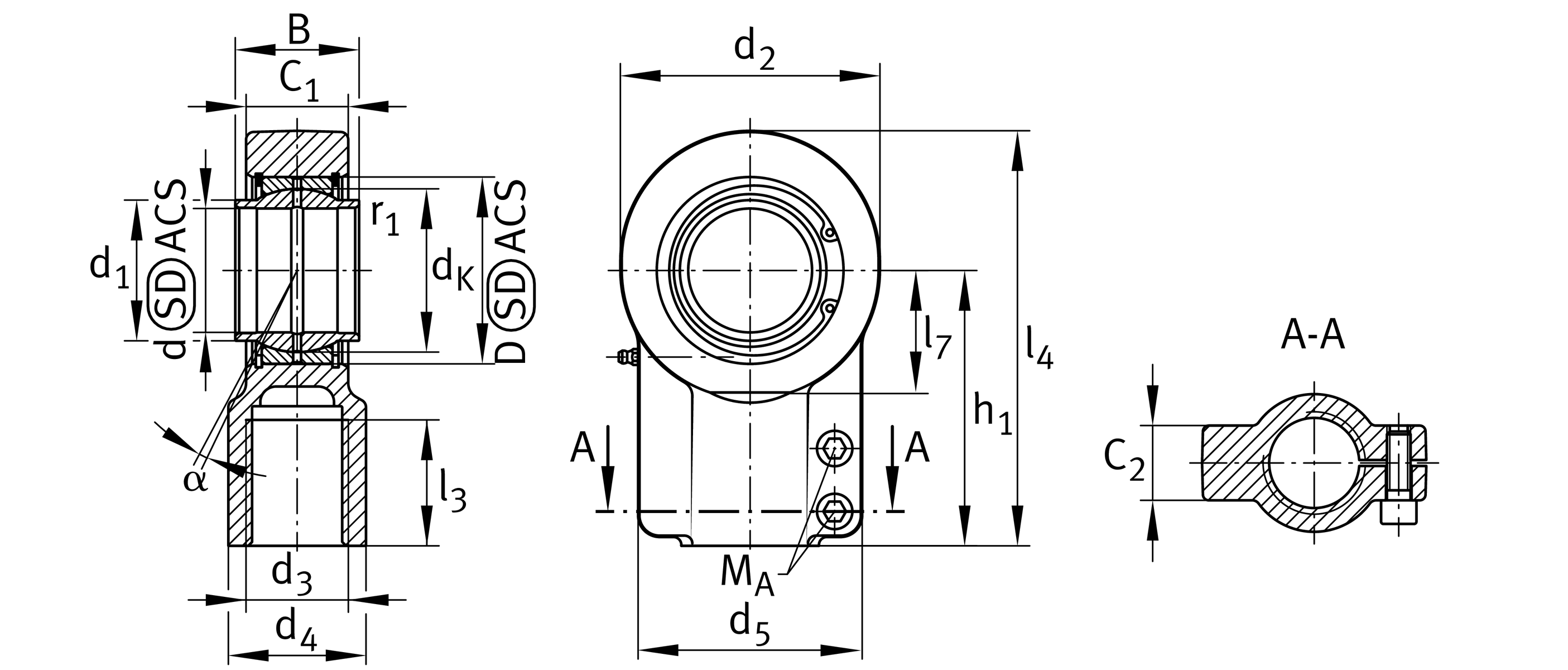

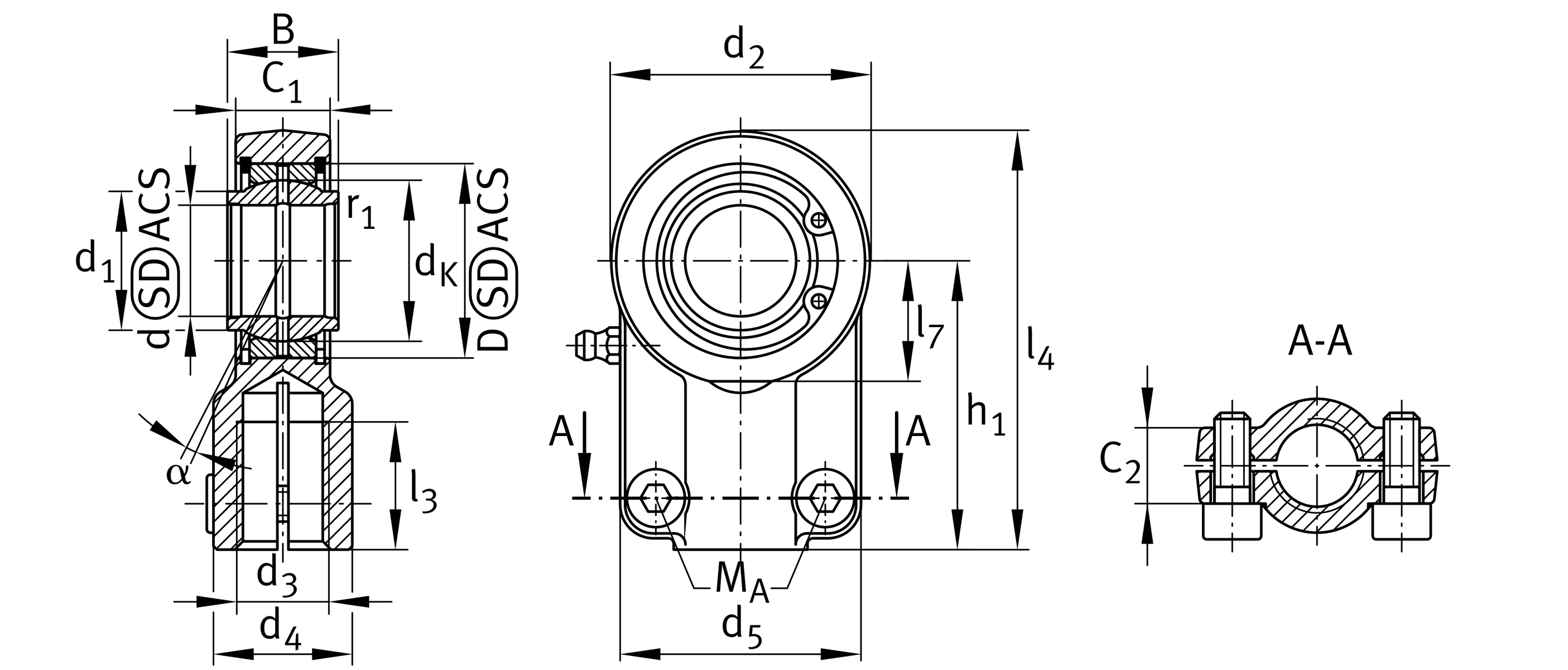

Dimensions
| α | 4 ° | Tilt angle |
| C1 | 103 mm | Width of the rod end |
| C2 | 72 mm | Width |
| dK | 160 mm | Ball diameter |
| d3 | M100x3 | Thread size |
| d4 | 135 mm | Shank diameter |
| d5 | 200 mm | Shank diameter, large |
| d 7 | M24x70 | Diameter |
| h1 | 260 mm | Shank Length Internal thread head |
| l3 | 113 mm | Thread length Internal thread |
| l7 | 120 mm | Distance drilling with/shaft start |
| dUT | 0 mm | Bore diameter bearing, lower tolerance |
| dT | H7 | Bore diameter bearing, tolerance |
| dOT | 0.04 mm | Bore diameter bearing, upper tolerance |
| BUT | -0.4 mm | Width inner ring, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| MA | 660 Nm | Tightening torque |
| FZ | 800,000 N | Cylinder Force |
| Gr | CN | Radial Clearance |
| Grmin | 0.043 mm | Radial clearance, minimum |
| Grmax | 0.165 mm | Radial clearance, maximum |
Mounting dimensions
| r1smin | 1 mm | Edge Spacing |
| d1 | 138 mm | Outer flange diameter inner ring |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
