DRS50140
Seal carrier Assy DRS50140
Thêm vào yêu cầu báo giá

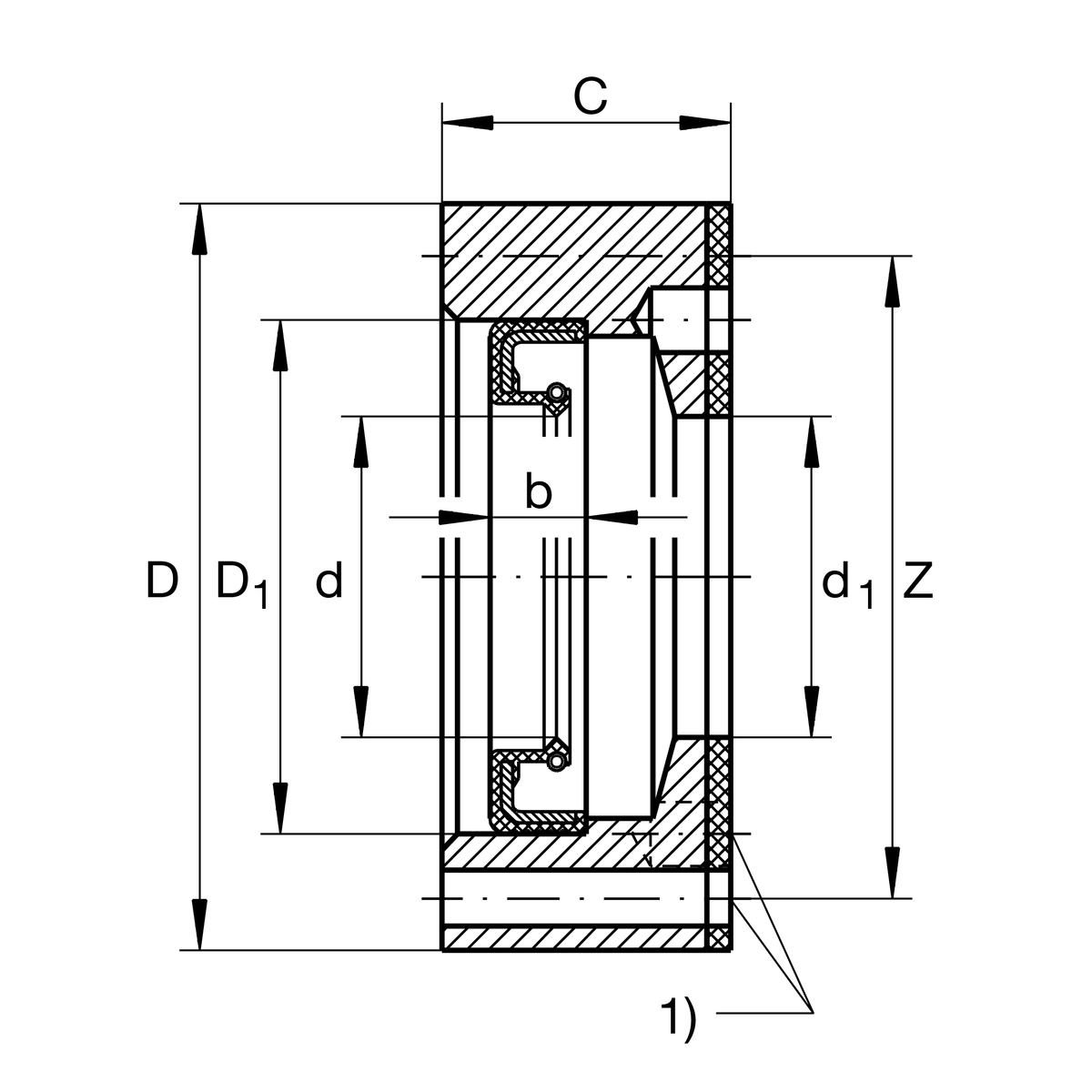

Main Dimensions & Performance Data
d1
95 mm
Inner diameter centering
D
140 mm
Outside diameter
C
30 mm
Width wave carrier
≈m
1.345 kg
Weight

Dimensions
Z
127.5 mm
Pitch circle diameter (holes)
d
95 mm
Inner diameter centering seal lip
D1
115 mm
Outside diameter seal
b
13 mm
Width seal
M5X40
Screw size
1)
4
Number of screws

Additional information
ZARF50140(-L)-TV
Bearing designation
