Main Dimensions & Performance Data
| d | 70 mm | Bore diameter |
0 mm | Bore diameter upper tolerance | |
-0.008 mm | Bore diameter lower tolerance | |
| D | 155 mm | Outside diameter |
0 mm | Outside diameter upper tolerance | |
-0.015 mm | Outside diameter lower tolerance | |
| B | 45 mm | Width |
0 mm | Width upper tolerance | |
-0.25 mm | Width lower tolerance | |
| Ca | 97,000 N | Basic dynamic load rating, axial |
| C0a | 241,000 N | Basic static load rating, axial |
| Cua | 14,600 N | Fatigue load limit, axial |
| nG Grease | 3,800 1/min | Limiting speed for grease lubrication |
| nϑ | 2,800 1/min | Thermally safe operating speed |
| MR | 1.2 Nm | Bearing frictional torque |
| ≈m | 4.386 kg | Weight |
Mounting dimensions

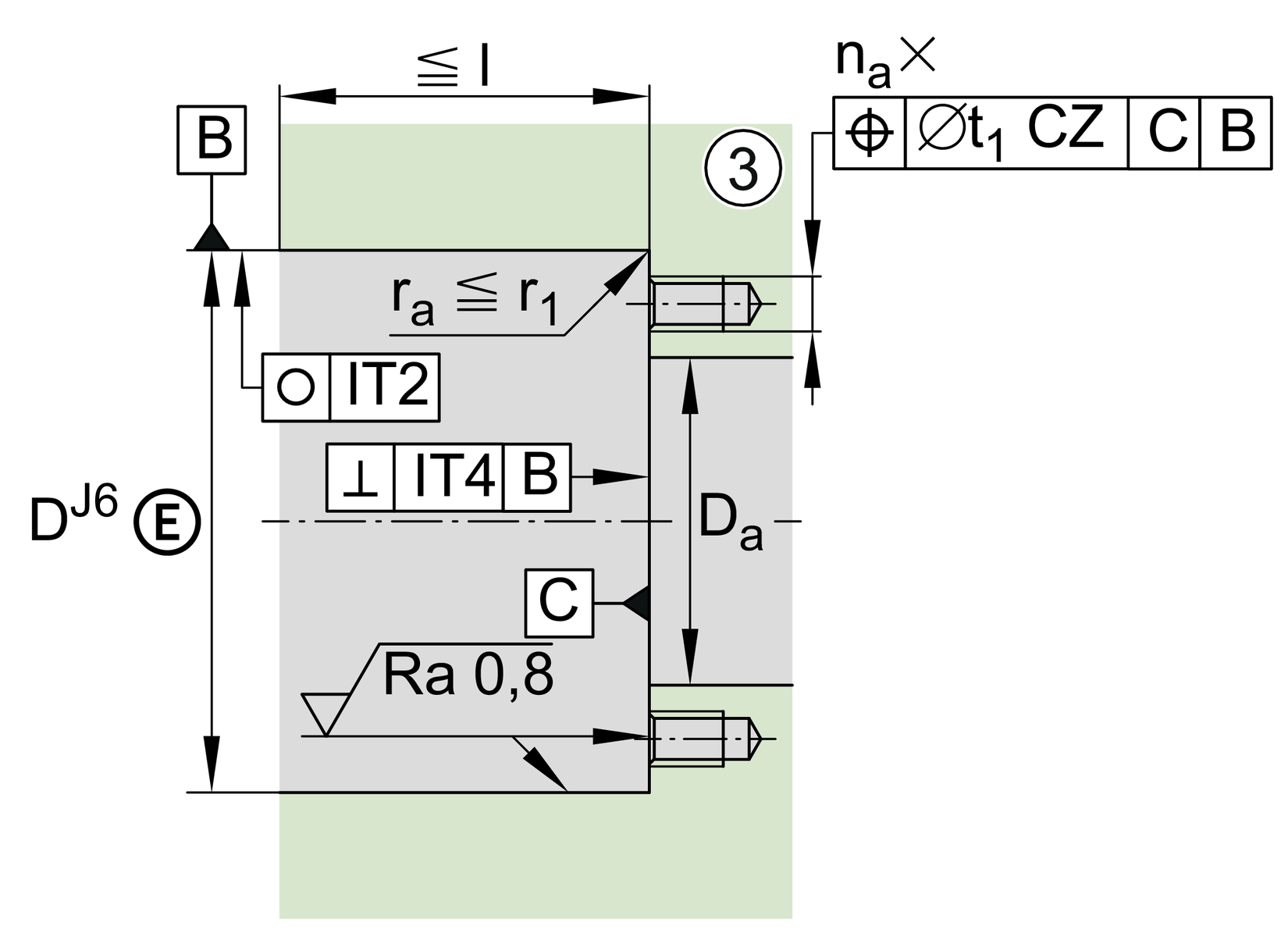

| Da max | 110 mm | Maximum diameter of housing |

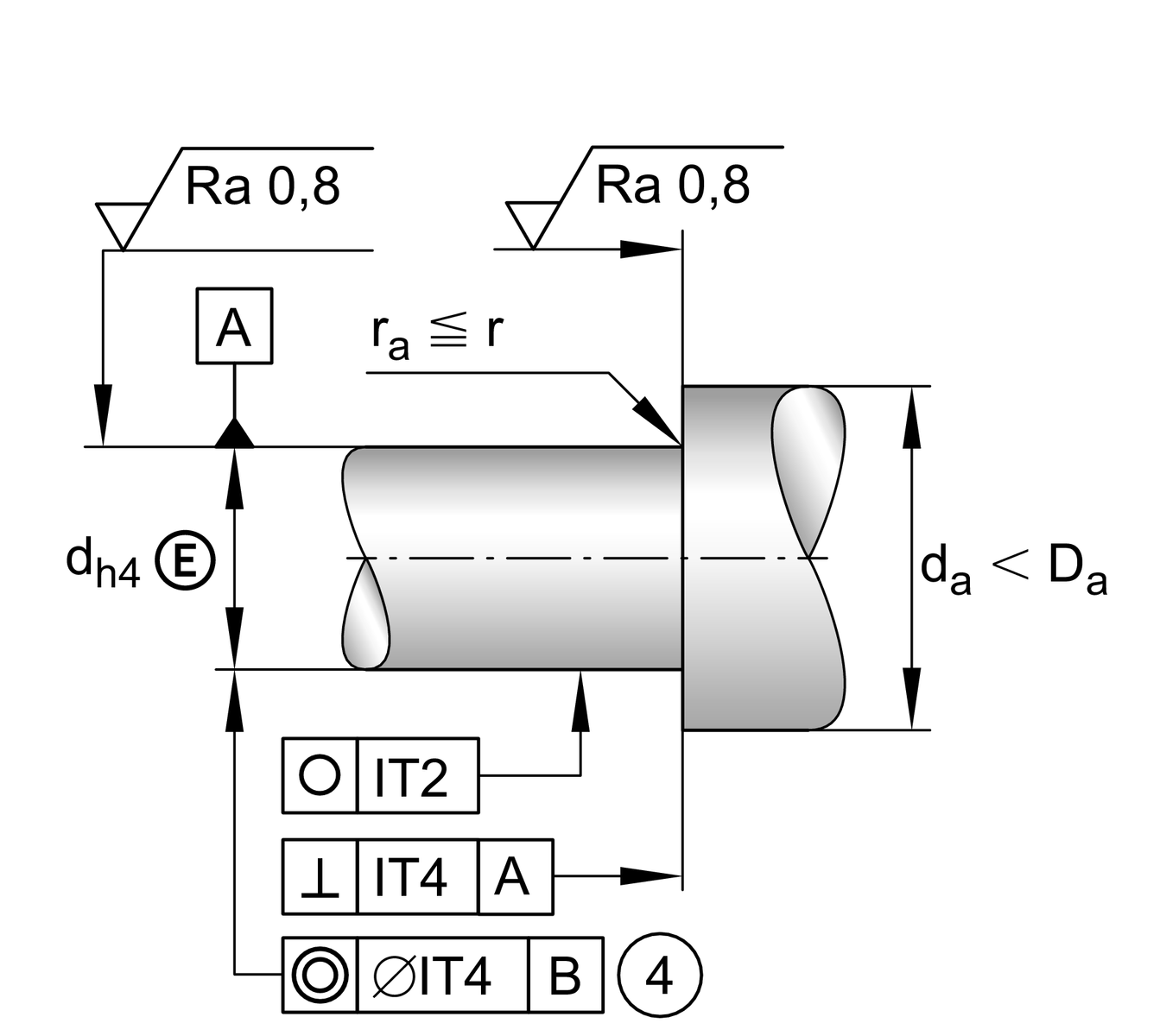

| da min | 92 mm | Minimum diameter shaft |

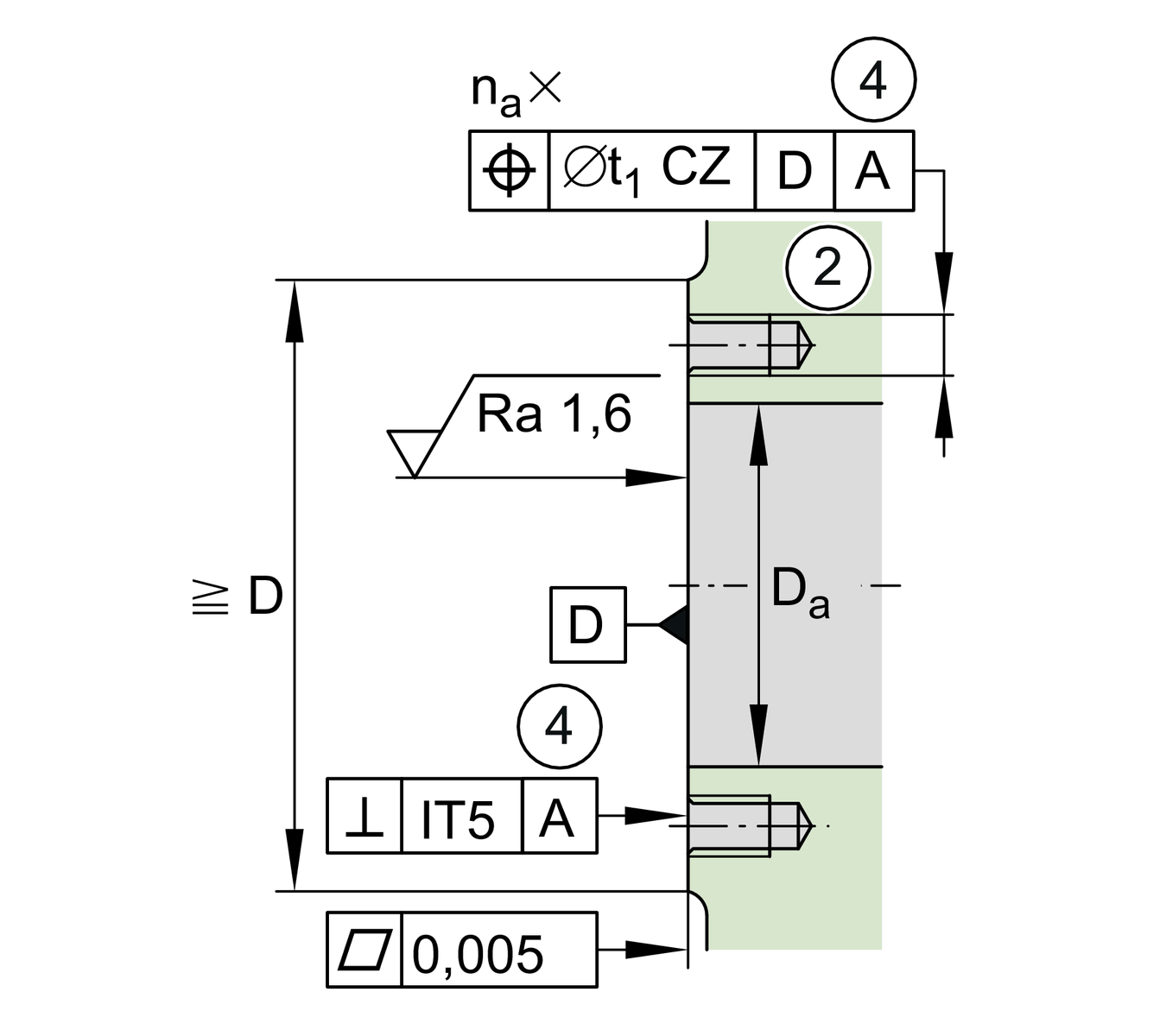

| t1 | 0.2 mm | Position tolerance of bore in the housing |
M8 | Size of fixing screws | |
| na | 8 | Number of holes in adjacent construction |

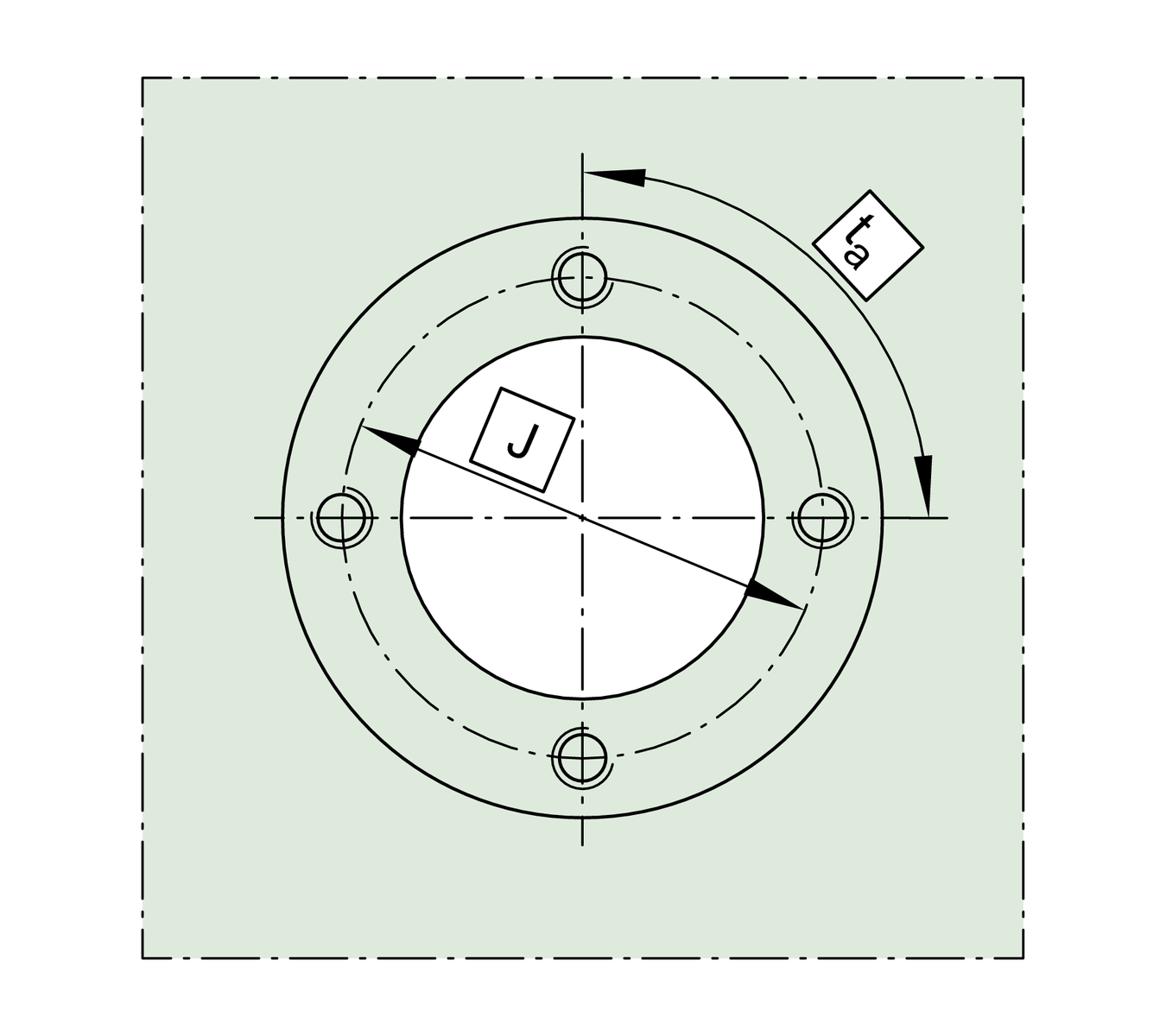

| ta | 45 ° | Pitch separation angle of holes in adjacent construction |
M6 | Connection thread for lubrication |
Dimensions

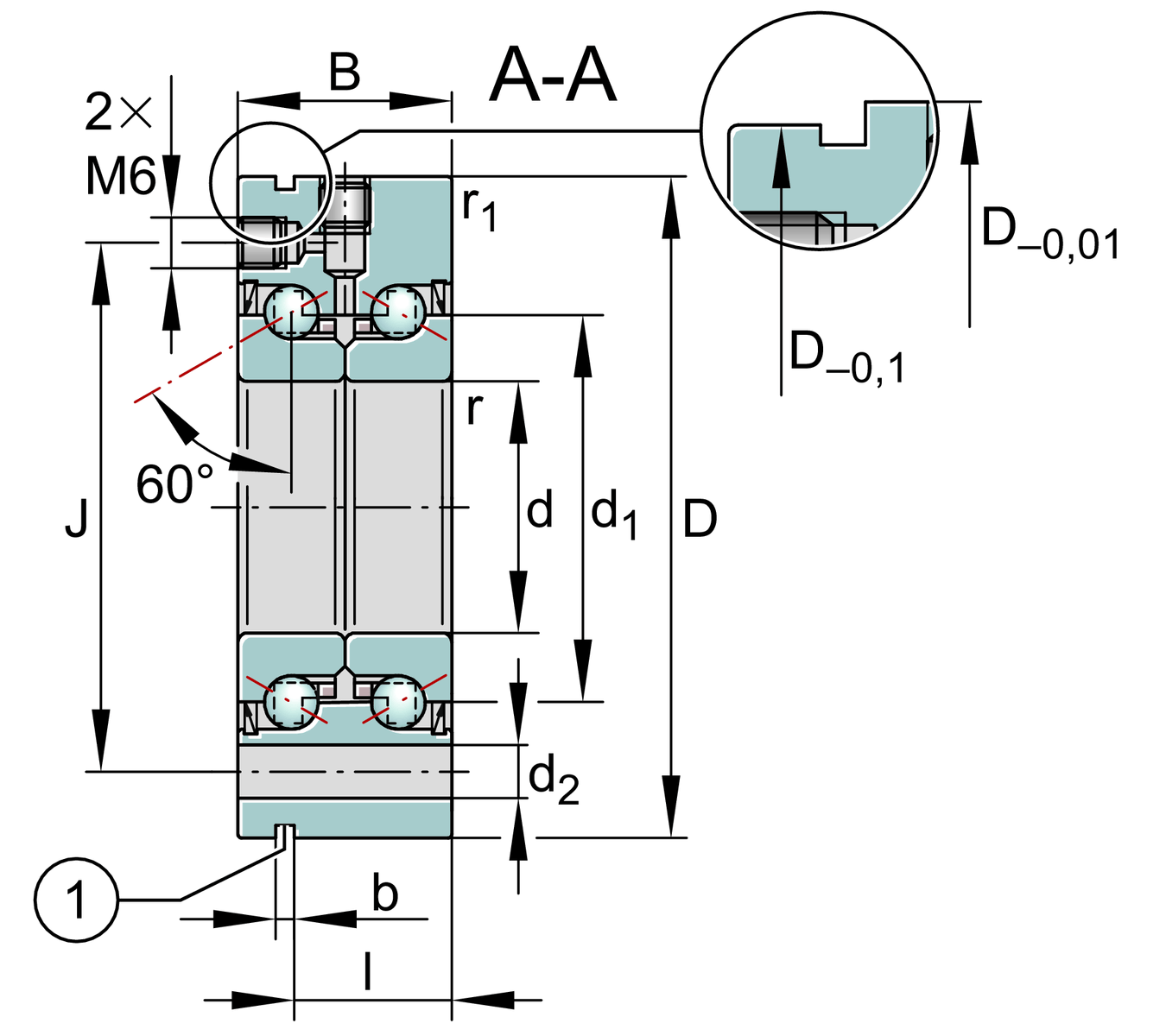

| d1 | 95 mm | Rib diameter inner ring |
| rmin | 0.6 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |
| J | 130 mm | Pitch circle diameter fixing holes |
| d2 | 8.8 mm | Fixing holes diameter |
| b | 3 mm | Width of extraction slot |
| I | 35 mm | Distance of extraction slot |

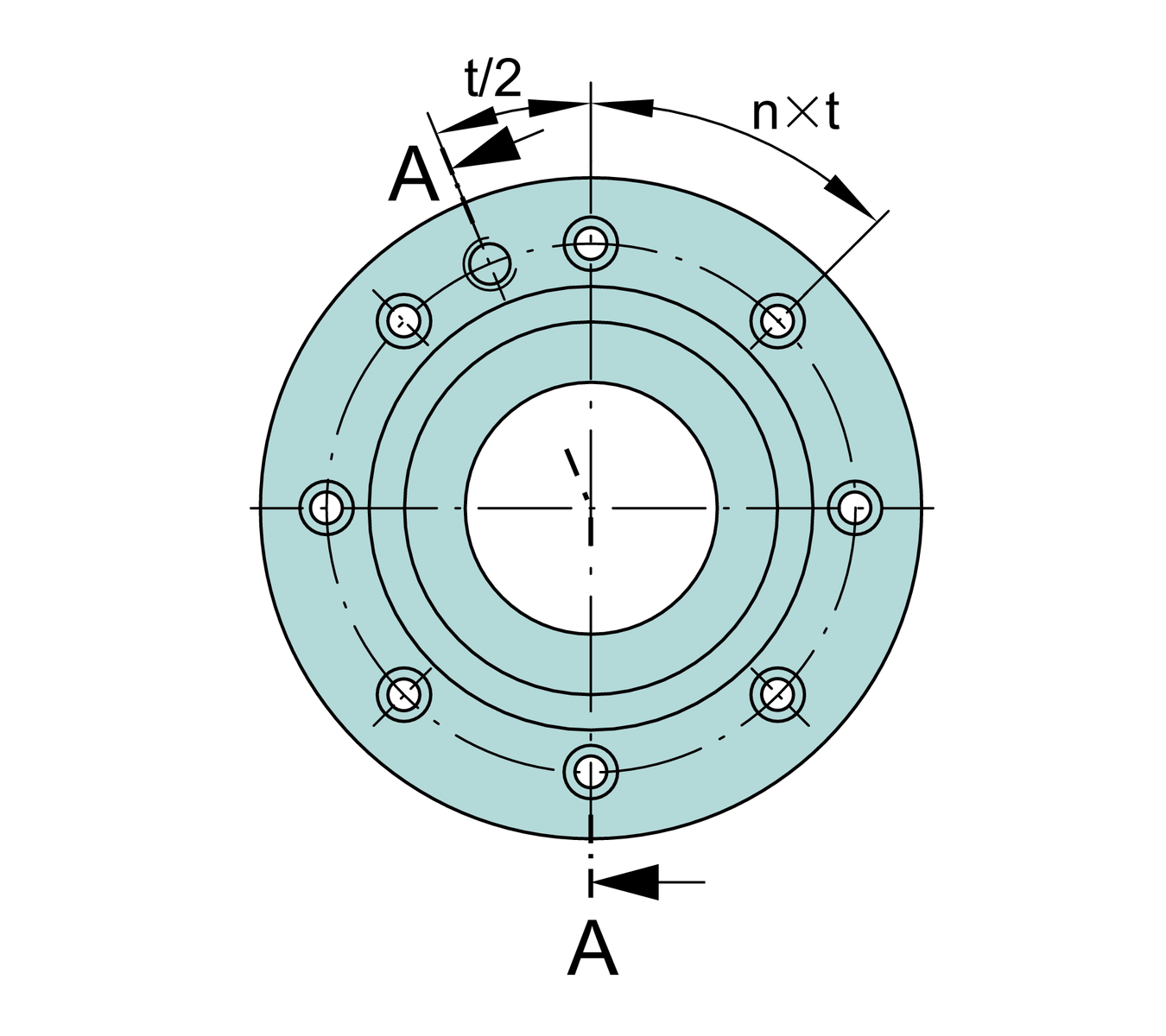

| n | 8 | Pitch quantity of fixing holes |
| t | 45 ° | Pitch separation angle of fixing holes |
| a | 60 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| caL | 1,450 N/µm | Rigidity axial |
| ckL | 2,250 Nm/mrad | Tilting rigidity |
| Mm | 19.8 kg*cm2 | Mass moment of inertia |
3 µm | Axial runout | |
ZMA70/110 | Recommended INA precision locknut for radial locking | |
AM70 | Recommended INA precision locknut for axial locking | |
| MA | 130 Nm | Tightening torque for the recommended INA precision locknut |
19,031 N | Required locknut force axial |
Your current product variant
| Sealing | 2Z | Minimal gap seals on both sides |
| Tolerance class | Standard |
