UKFL215

Flanged housing unit UKFL215

Thêm vào yêu cầu báo giá

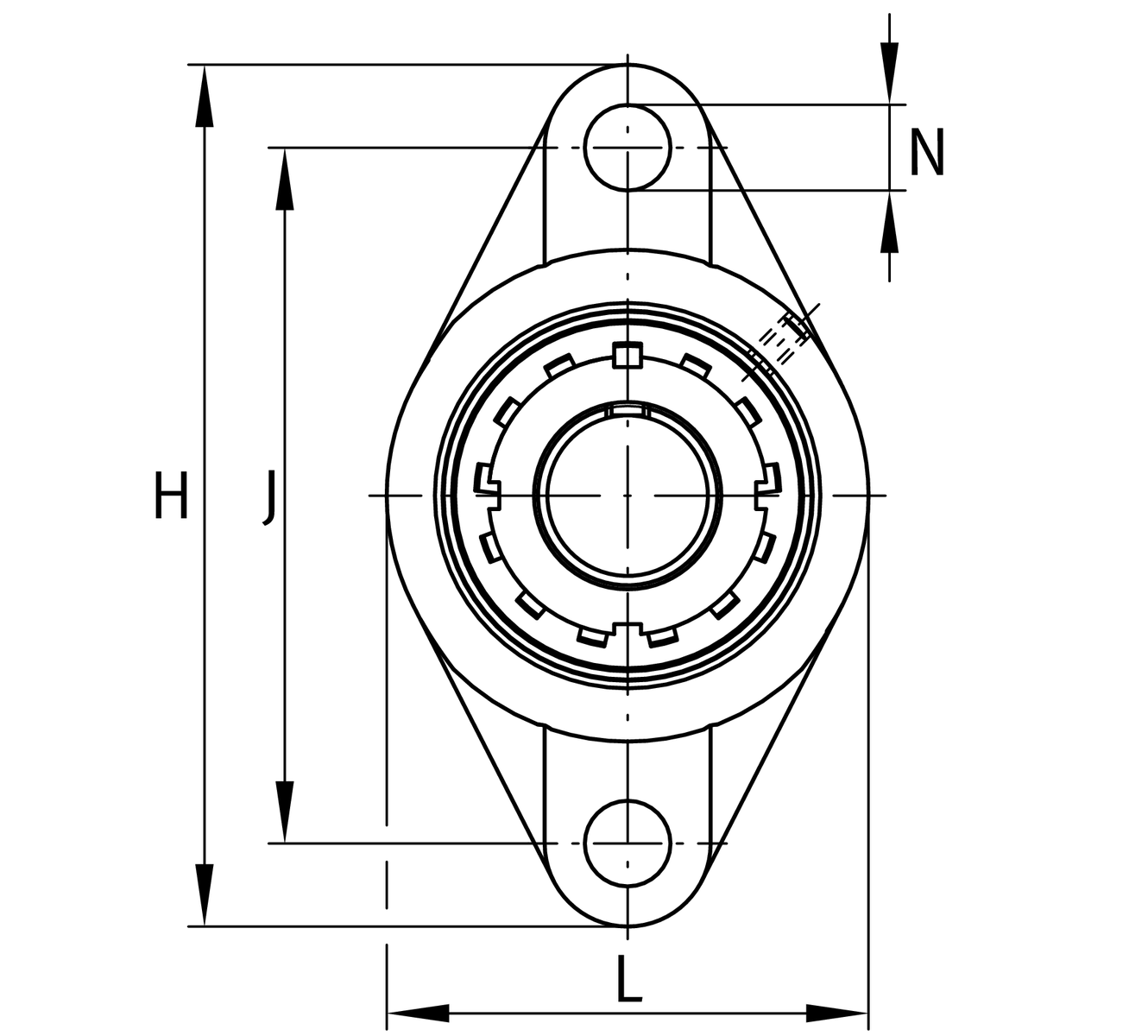

Main Dimensions & Performance Data

d	65 mm	Bore diameter
L	165 mm	Flange width
H	275 mm	Height flange
C_r	66,000 N	Basic dynamic load rating, radial
C_0r	44,500 N	Basic static load rating, radial
C_ur	2,300 N	Fatigue load limit, radial
≈m	6.18 kg	Weight

Mounting dimensions

J	225 mm	Distance fixing bore
N	23 mm	Fixing bore
n	2	Number of screwing holes

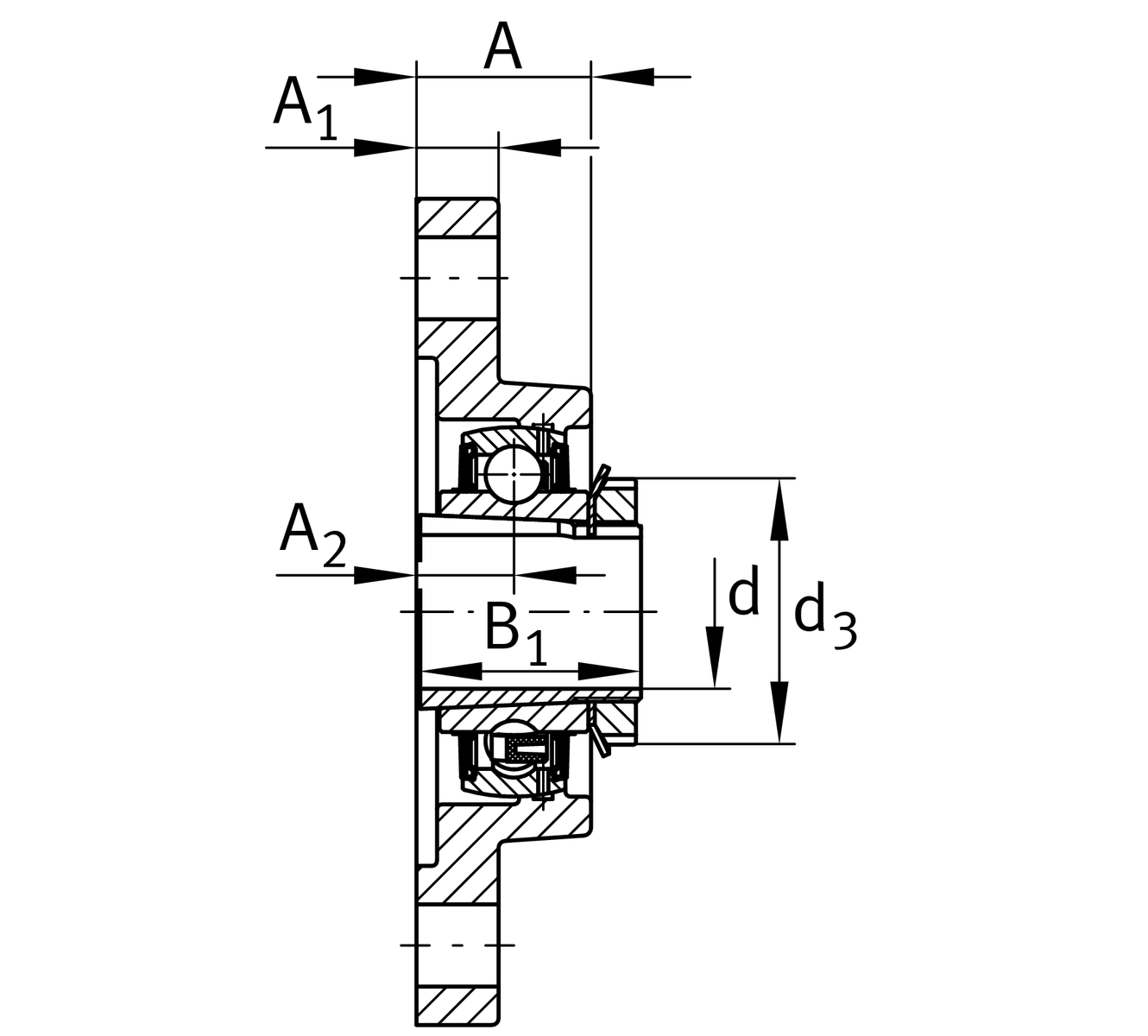

Dimensions

A	56 mm	Height housing
A₁	24 mm	Thickness of flange
A₂	34 mm	Distance raceway
B	44.5 mm	Width
B₁	73 mm	Locking collar total width
d₃	98 mm	Outside diameter eccentric locking collar

Additional information

	1	Number of housings
	FL215	Housing
	UK215	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
