FAG INA Schaeffler
FAG
UKFL213
Flanged housing unit UKFL213
Thêm vào yêu cầu báo giá

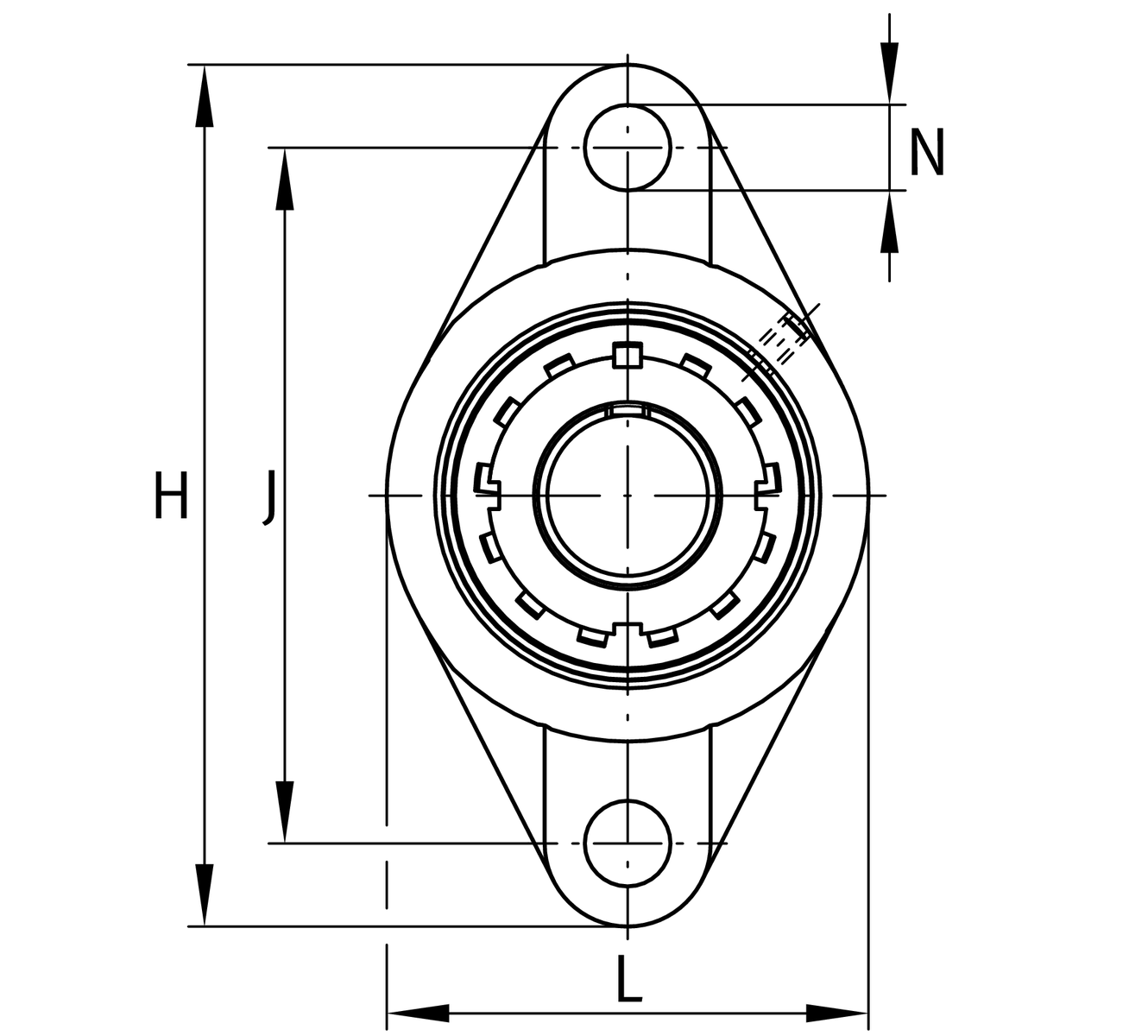

Main Dimensions & Performance Data
d
60 mm
Bore diameter
L
155 mm
Flange width
H
258 mm
Height flange
Cr
61,000 N
Basic dynamic load rating, radial
C0r
40,000 N
Basic static load rating, radial
Cur
2,090 N
Fatigue load limit, radial
≈m
4.85 kg
Weight

Mounting dimensions
J
210 mm
Distance fixing bore
N
23 mm
Fixing bore
n
2
Number of screwing holes

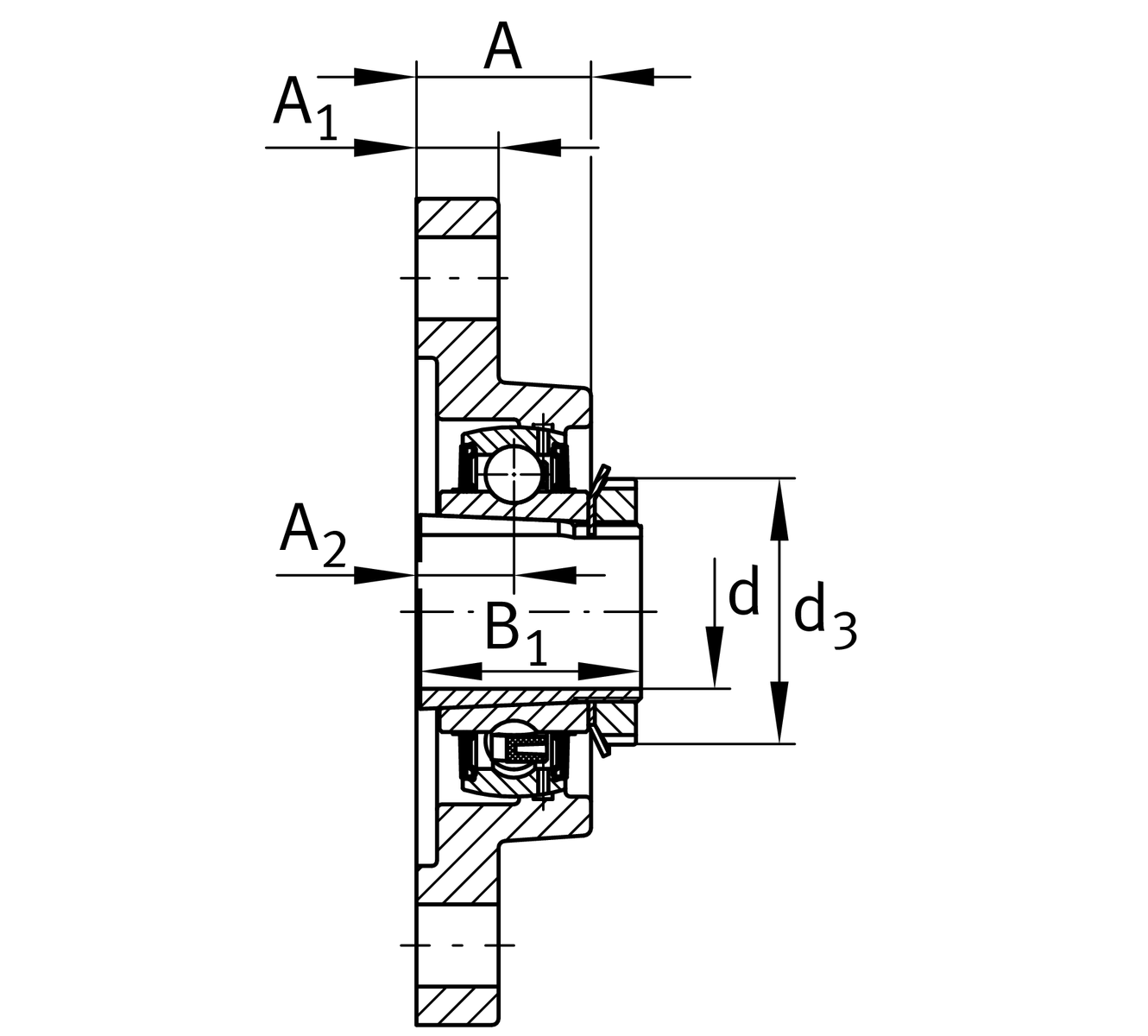

Dimensions
A
50 mm
Height housing
A1
24 mm
Thickness of flange
A2
30 mm
Distance raceway
B
41 mm
Width
B1
65 mm
Locking collar total width
d3
85 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
FL213
Housing
UK213
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
