Main Dimensions & Performance Data
| d | 98 mm | Bore diameter inner ring |
| D | 130 mm | Outside diameter |
| H | 16 mm | Height |
| Cr | 37,000 N | Basic dynamic load rating, radial |
| C0r | 63,000 N | Basic static load rating, radial |
| Ca | 89,000 N | Fatigue load limit, axial |
| Coa | 315,000 N | Basic static load rating, axial |
| Cur | 7,700 N | Fatigue limit load, radial |
| Cua | 31,000 N | Fatigue limit load, axial |
| nG | 650 1/min | Limiting speed |
| nϑr | 2,200 1/min | Reference speed |
| ≈m | 420 g | Weight |

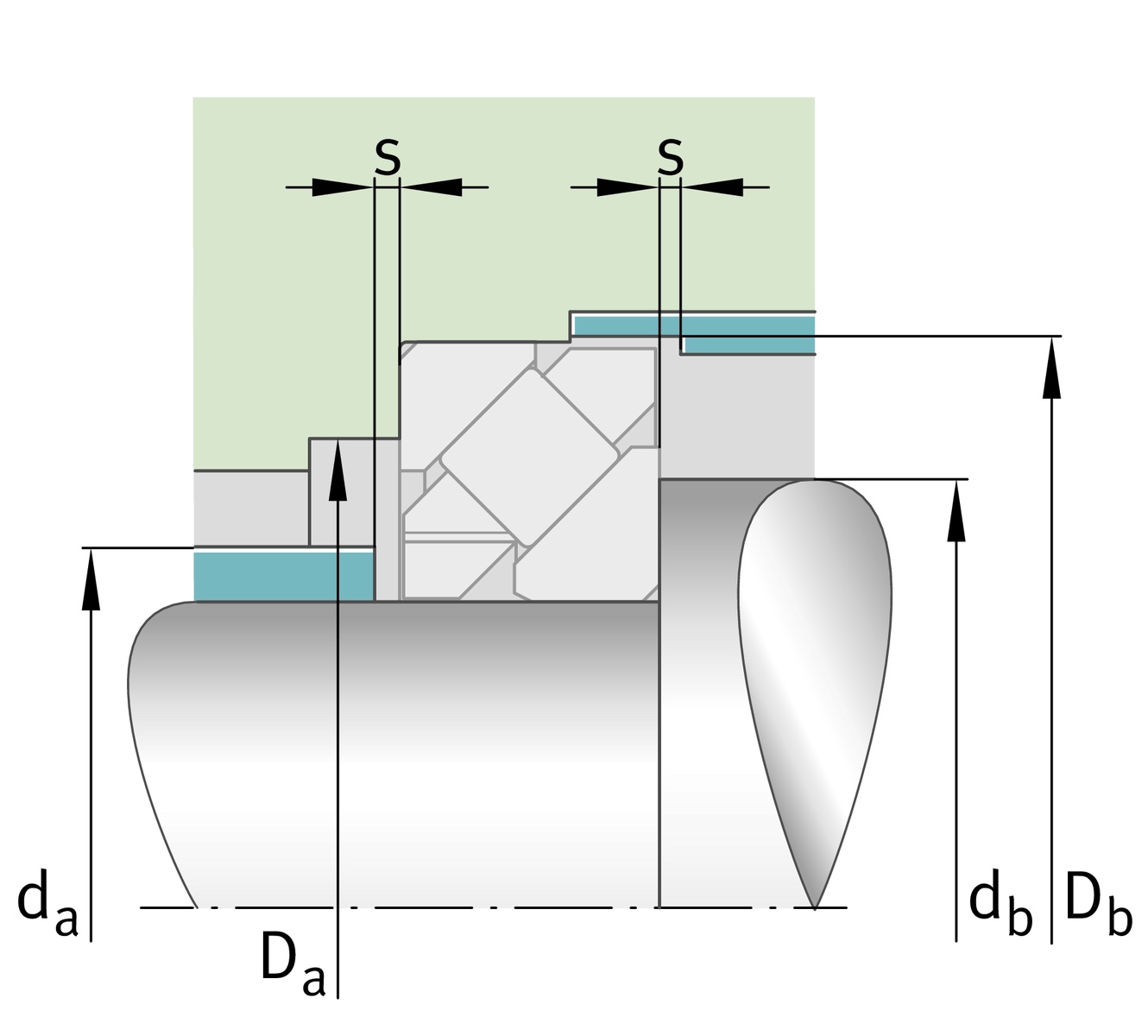

Mounting dimensions
| Da | 113 mm | Maximum diameter of housing shoulde |
| db | 115 mm | Minimum shaft shoulder |
| Dbmin | 131 mm | Housing undercut for cage |
| s | 1.5 mm | minimum distance |

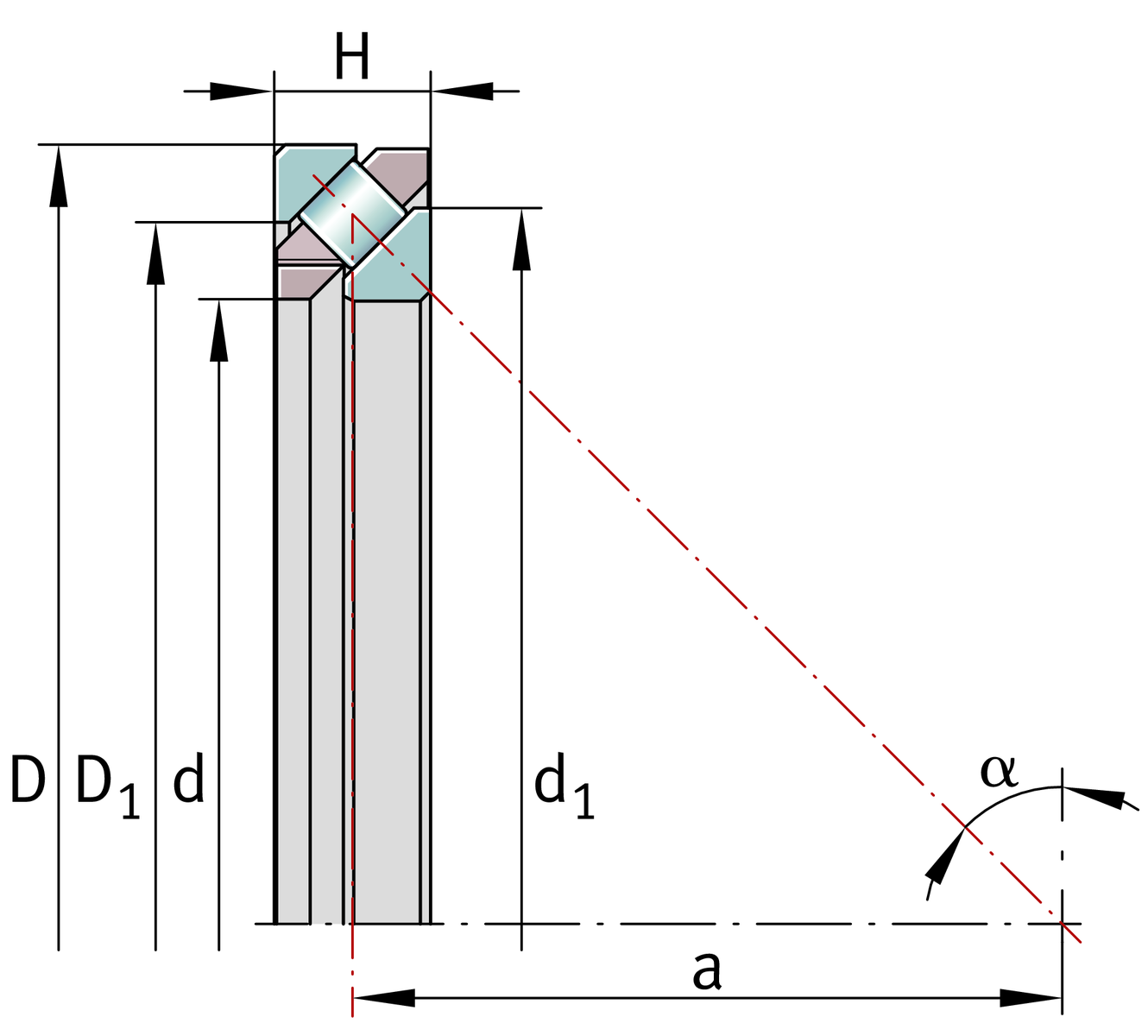

Dimensions
| D1 | 113 mm | Bore diameter outer ring |
| d1 | 115 mm | Outside diameter inner ring |
| a | 57 mm | Contact point distance |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
