Main Dimensions & Performance Data
| d | 45 mm | Bore diameter inner ring |
| D | 58 mm | Outside diameter |
| H | 7 mm | Height |
| Cr | 7,600 N | Basic dynamic load rating, radial |
| C0r | 11,200 N | Basic static load rating, radial |
| Ca | 18,200 N | Fatigue load limit, axial |
| Coa | 56,000 N | Basic static load rating, axial |
| Cur | 1,950 N | Fatigue limit load, radial |
| Cua | 7,900 N | Fatigue limit load, axial |
| nG | 1,400 1/min | Limiting speed |
| nϑr | 3,900 1/min | Reference speed |
| ≈m | 33.97 g | Weight |

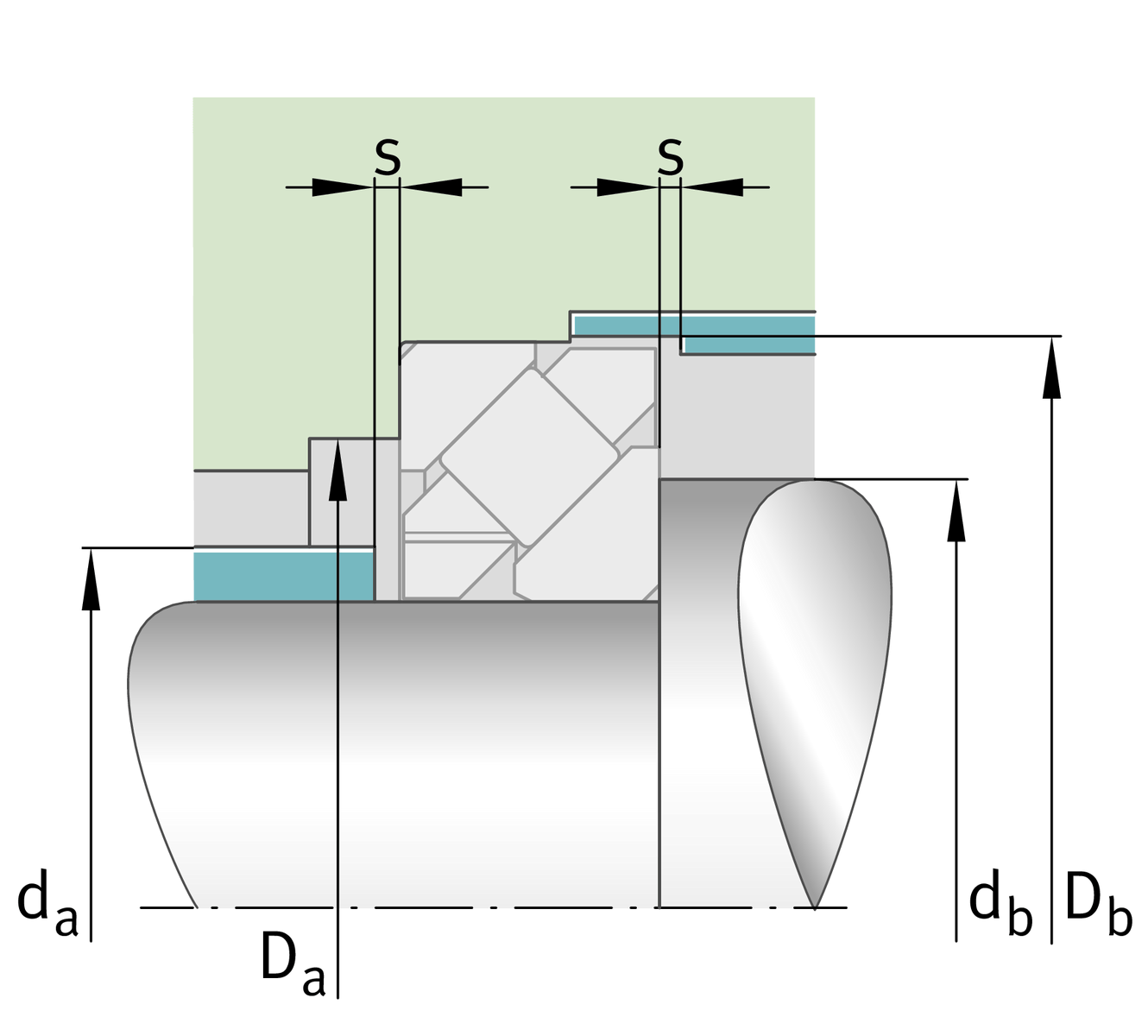

Mounting dimensions
| Da | 51 mm | Maximum diameter of housing shoulde |
| db | 52.2 mm | Minimum shaft shoulder |
| Dbmin | 59 mm | Housing undercut for cage |
| s | 1 mm | minimum distance |

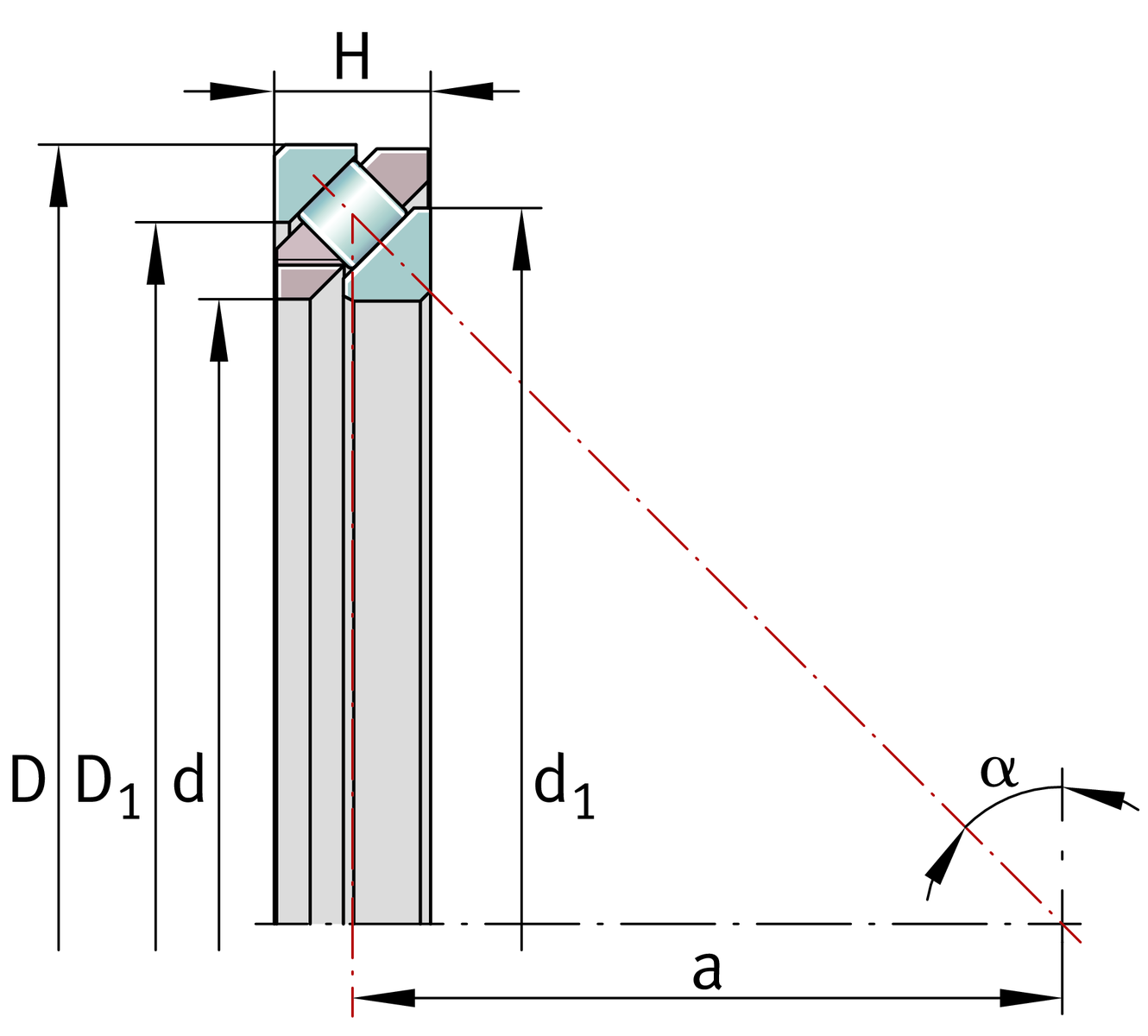

Dimensions
| D1 | 51 mm | Bore diameter outer ring |
| d1 | 52.2 mm | Outside diameter inner ring |
| a | 25.75 mm | Contact point distance |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
