UGN9741
Guideways with four raceways, with slot UGN9741
Thêm vào yêu cầu báo giá

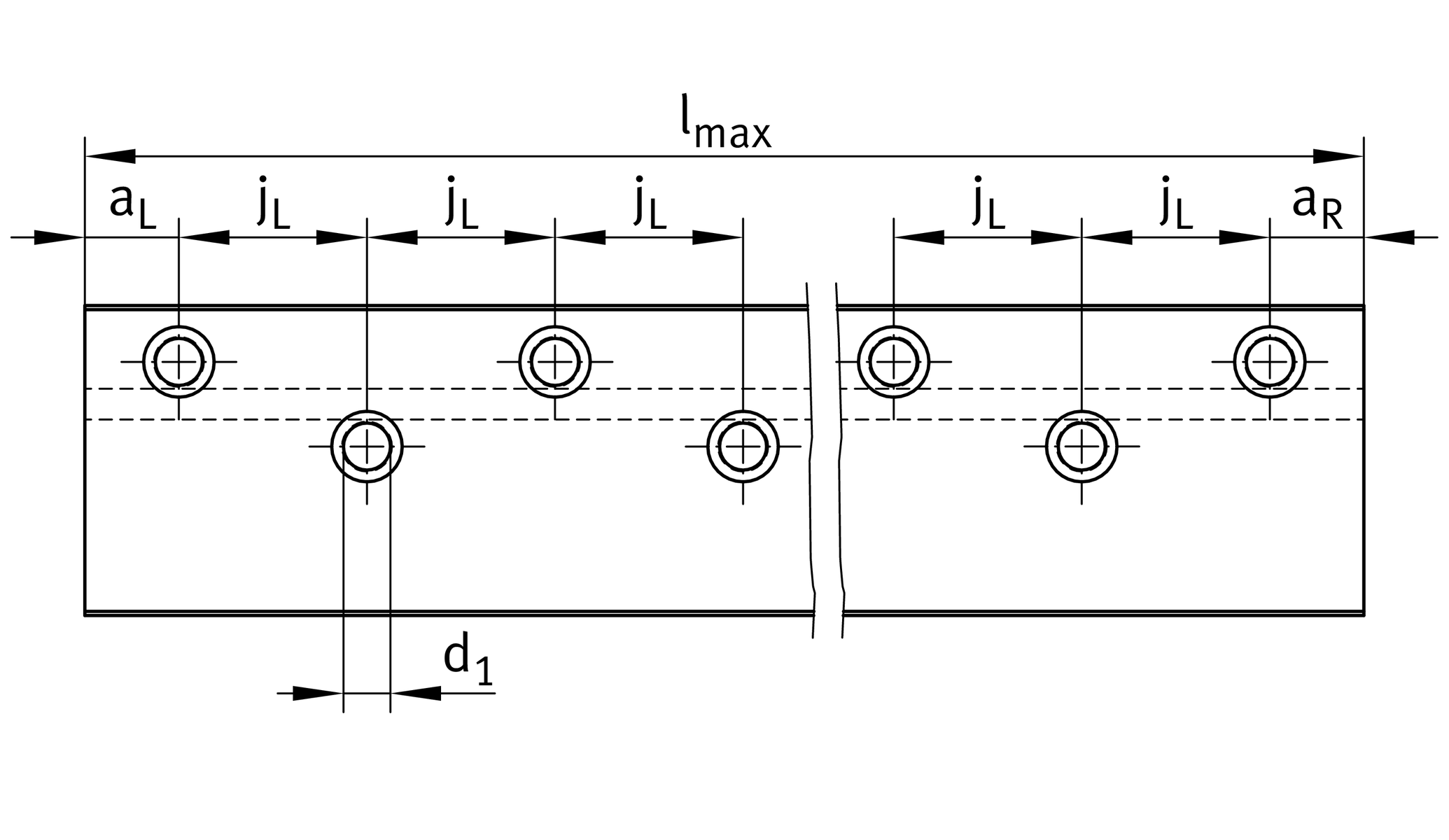

Main Dimensions & Performance Data
lmax
3,000 mm
length maximum 1
97 mm
width
Tol B
-0,1
tolerance
H
41 mm
height
Tol H
-0,1
tolerance

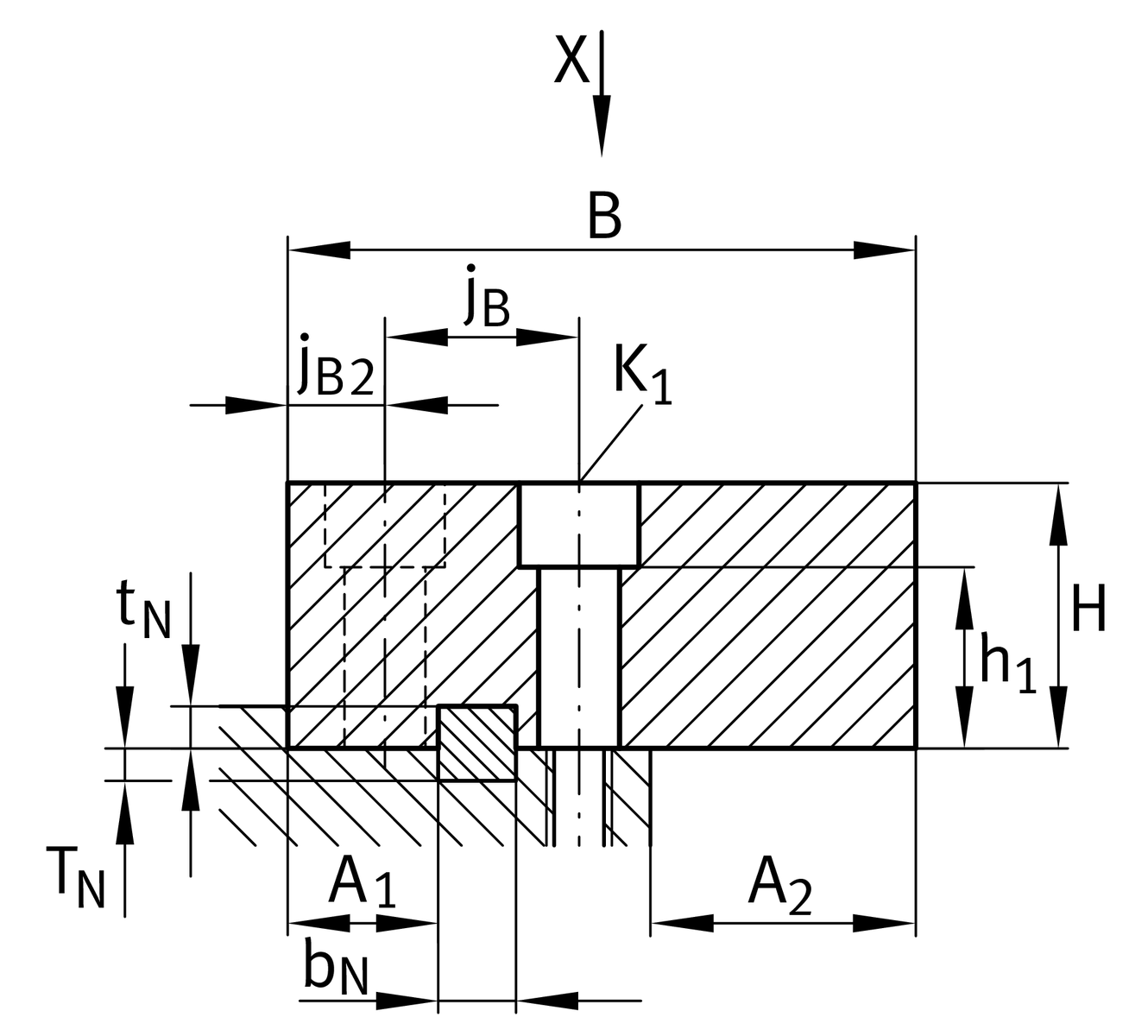

Mounting dimensions
jB
30 mm
jB2
15 mm
jL
40 mm
aR min
15 mm
 2
aR max
35 mm
 2
aL min
15 mm
 2
aL max
35 mm
 2
h1
27.5 mm
A2 max
41 mm
N2
18.5 mm
A1
23.25 mm

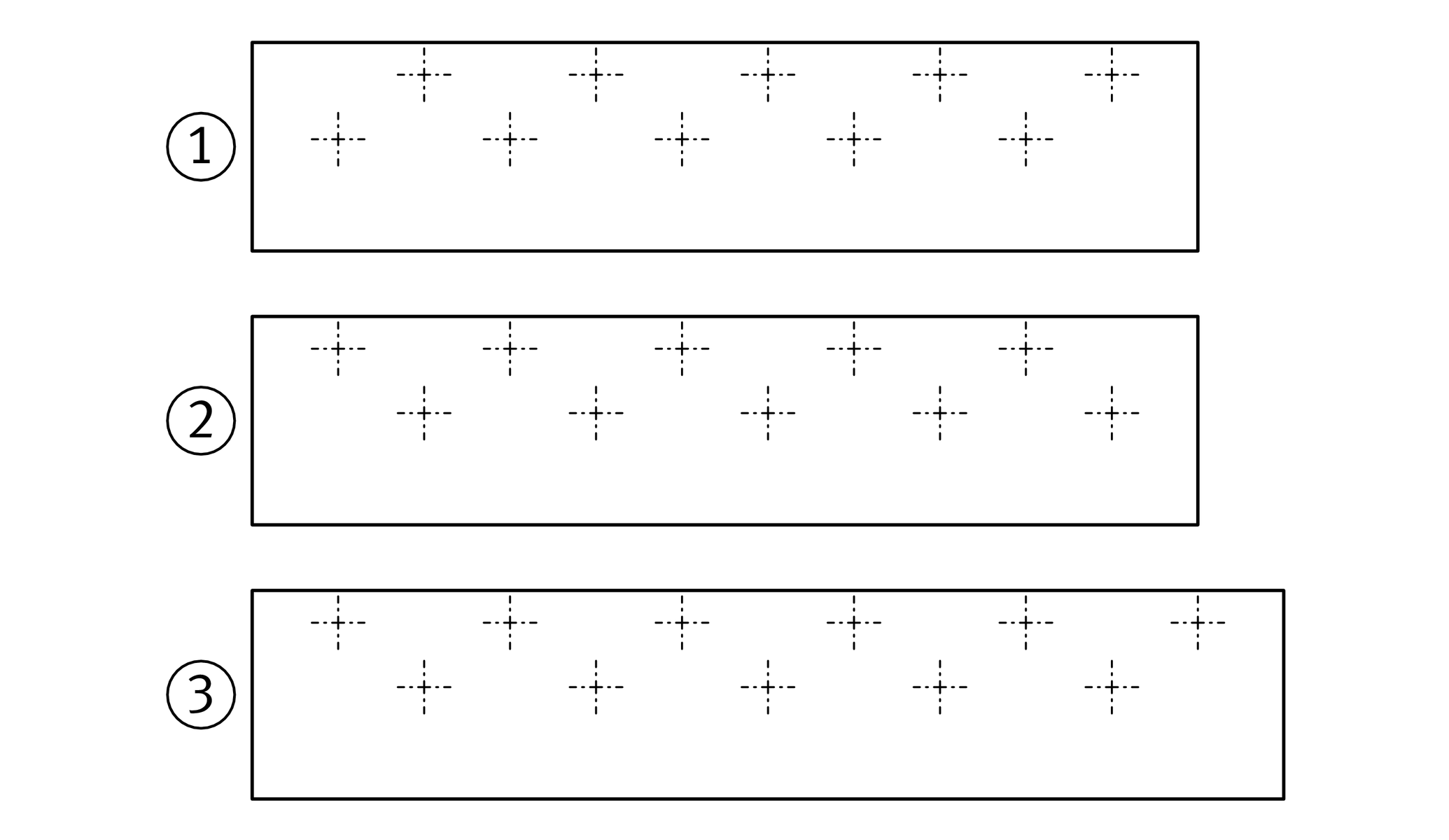

slot position 3
bN
12 mm
width slot 3
TN
5 mm
 3
tN
6.5 mm
 3
10x10
square steel bar DIN EN 10278 4
K1
M10
fixing srews (DIN ISO 4762-12.9)
K1 MA
83 Nm
torques fixing screws 5
d1
12.5 mm
bore diameter

Related products
KVK18,5
suitable closing plug 6
RUS26086, RUS26102, RUS26126, RUSV42086-KS, RUSV42102-KS, RUSV42126-KS, PR14061
suitable for linear roller bearing 7

Your current product variant
Size code9741
Thêm vào yêu cầu báo giá
