FAG INA Schaeffler
INA
UGN16260
Guideways with four raceways, with slot UGN16260
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data

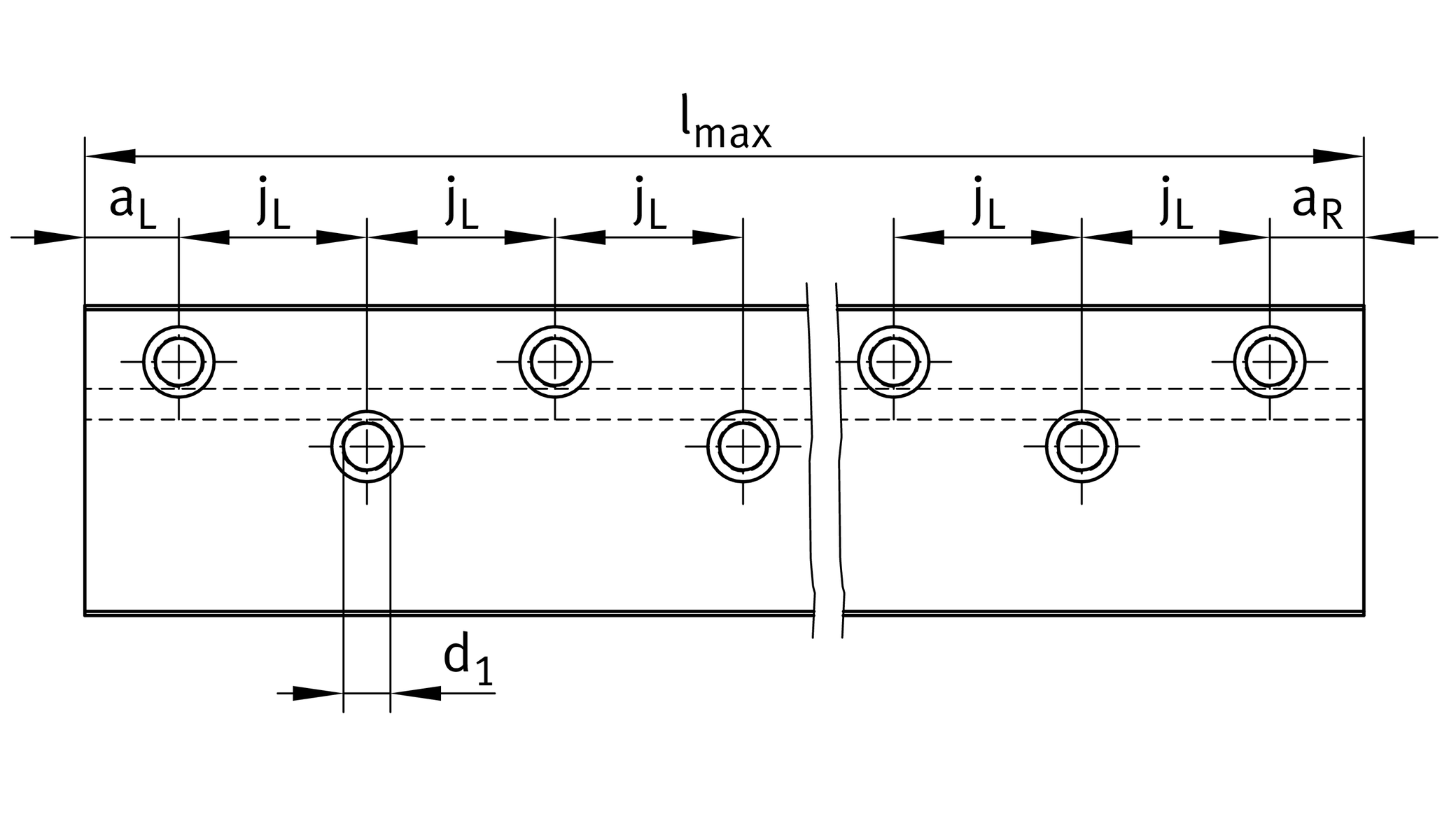

lmax
3,000 mm
length maximum 1
162 mm
width
Tol B
-0,1
tolerance
H
60 mm
height
Tol H
-0,1
tolerance

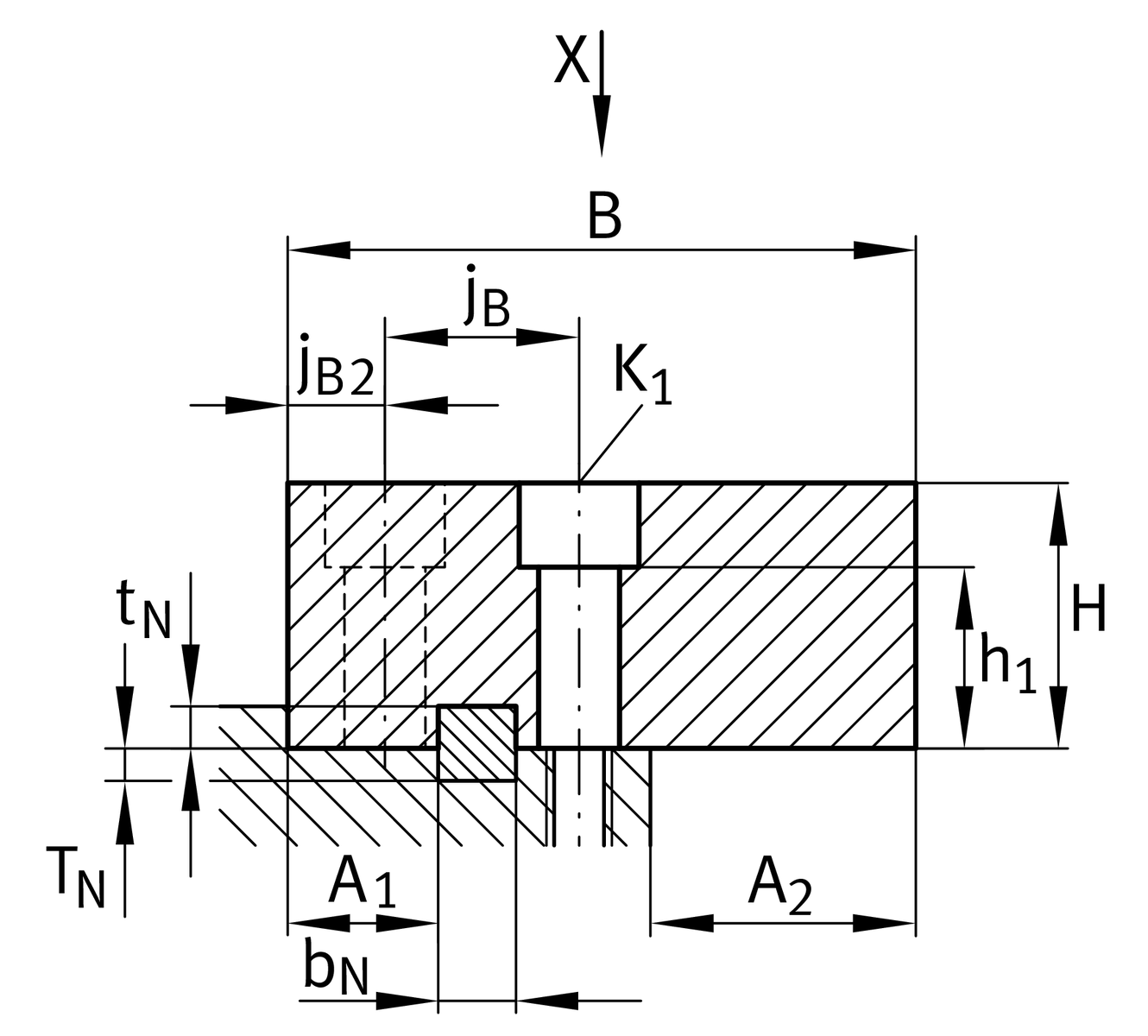

Mounting dimensions
jB
44 mm
jB2
20 mm
jL
40 mm
aR min
20 mm
 2
aR max
40 mm
 2
aL min
20 mm
 2
aL max
40 mm
 2
h1
35.5 mm
A2 max
77 mm
N2
26.5 mm
A1
31.25 mm
slot position 3
bN
18 mm
width slot 3
TN
8 mm
 3
tN
9.5 mm
 3
16x16
square steel bar DIN EN 10278 4
K1
M16
fixing srews (DIN ISO 4762-12.9)
K1 MA
350 Nm
torques fixing screws 5
d1
18.5 mm
bore diameter

Related products
KA26,5-M
suitable closing plug 6
RUS65210, PR14135
suitable for linear roller bearing 7

Your current product variant
Size code16260
