FAG INA Schaeffler
INA
UG16260
Guideways with four raceways UG16260
Thêm vào yêu cầu báo giá

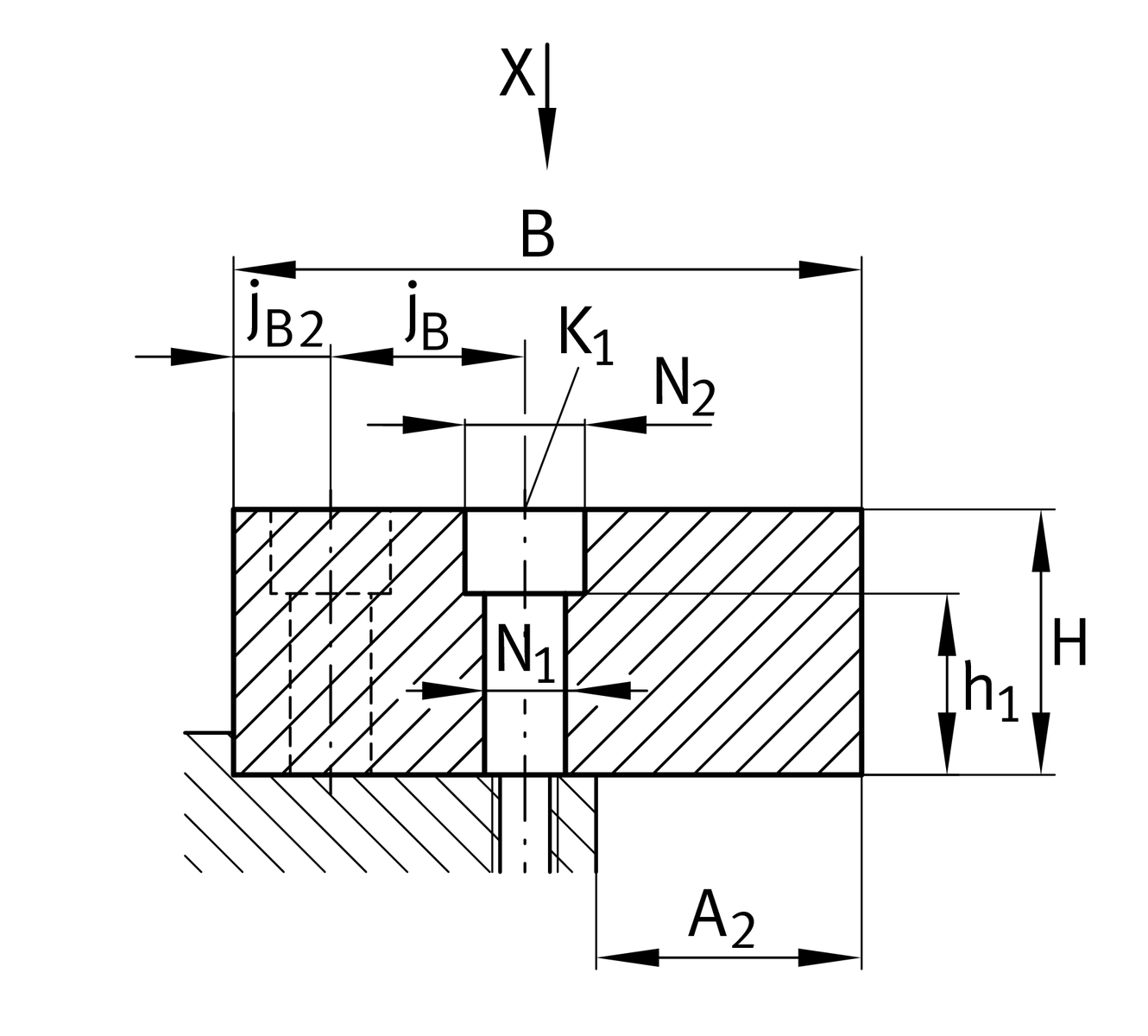

Main Dimensions & Performance Data
lmax
3,000 mm
length maximum 1
B
162 mm
width
Tol B
-0,1
tolerance
H
60 mm
height
Tol H
-0,1
tolerance

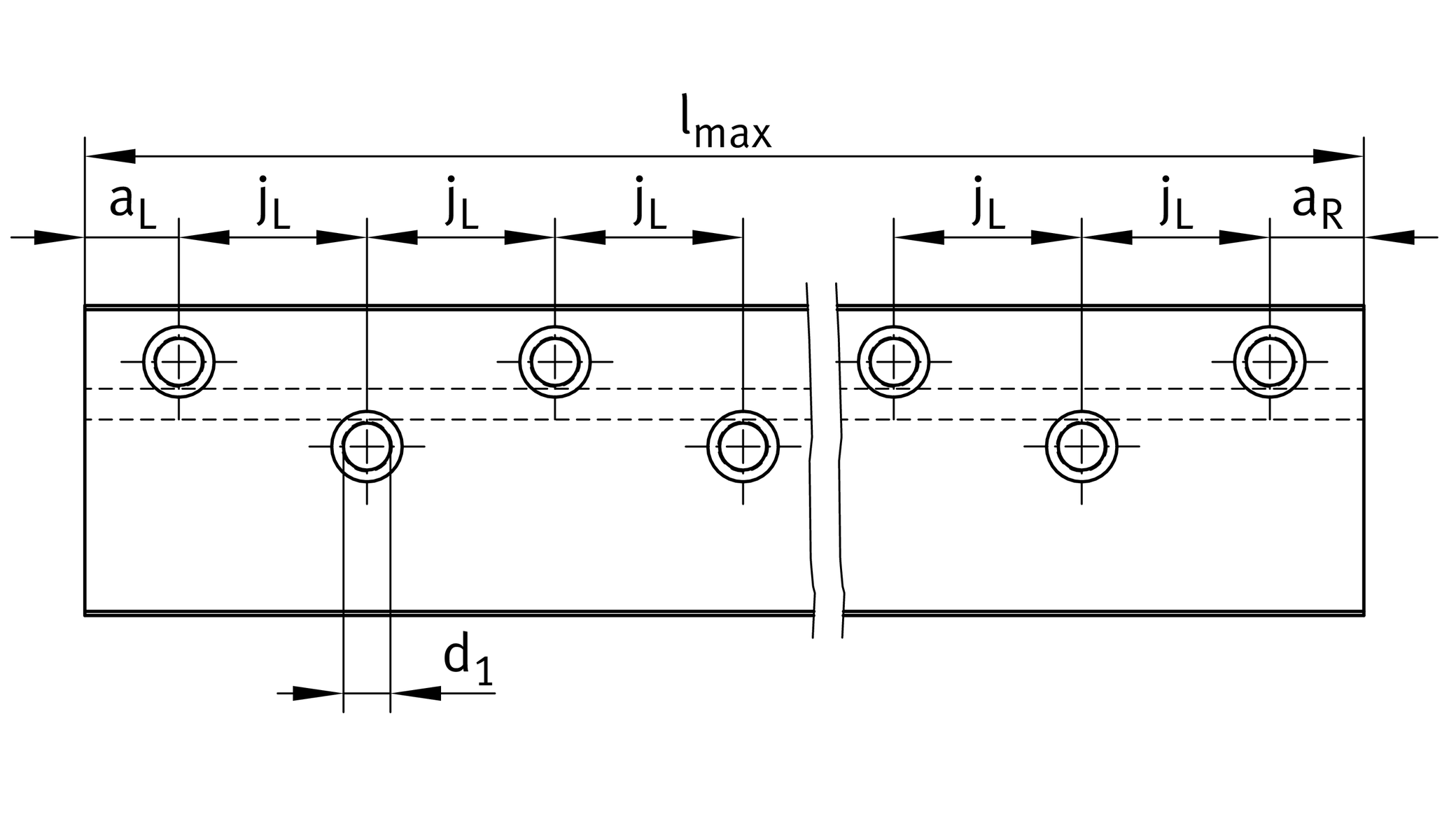

Mounting dimensions
jB
44 mm
jB2
20 mm
jL
40 mm
aR min
20 mm
 2
aR max
40 mm
 2
aL min
20 mm
 2
a
40 mm
 2
h1
35.5 mm
A2 max
77 mm
N2
26.5 mm
K1
M16
fixing srews (DIN ISO 4762-12.9)
K1 MA
350 Nm
torques fixing screws 3
d1
18.5 mm
bore diameter

Related products
KA26,5-M
suitable closing plug 4
RUS65210, PR14135
suitable linear roller bearing 5

Your current product variant
Size code16260
