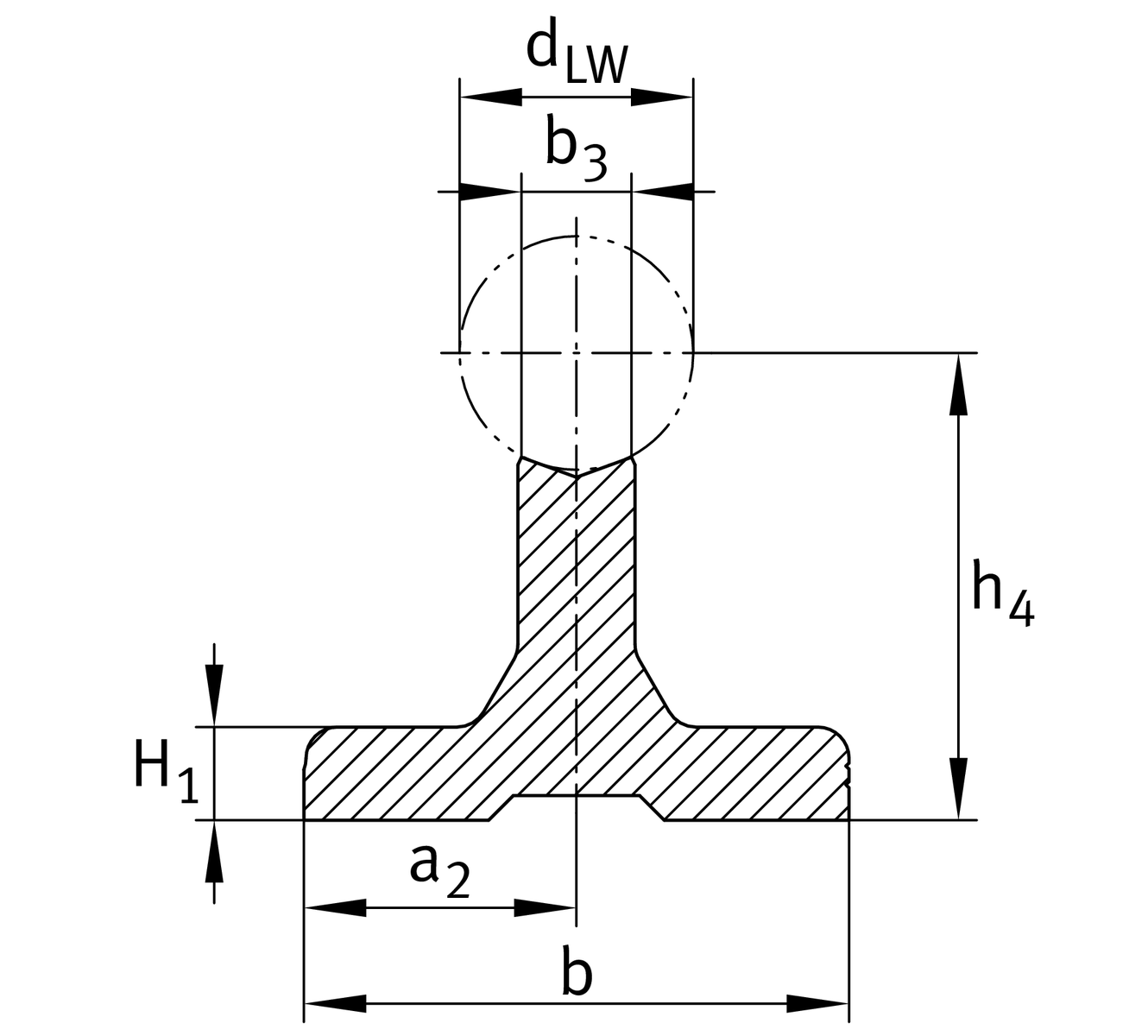

Main Dimensions & Performance Data
| BGR | 32 | Dimension support body |
| h4 | 82.55 mm | Height dimension 1 |
| Tol h4 | 0.051 mm | Height dimension TOL high |
| Tol h4 | -0.051 mm | Height dimension TOL low |
| b | 95.25 mm | Support rail width bottom |

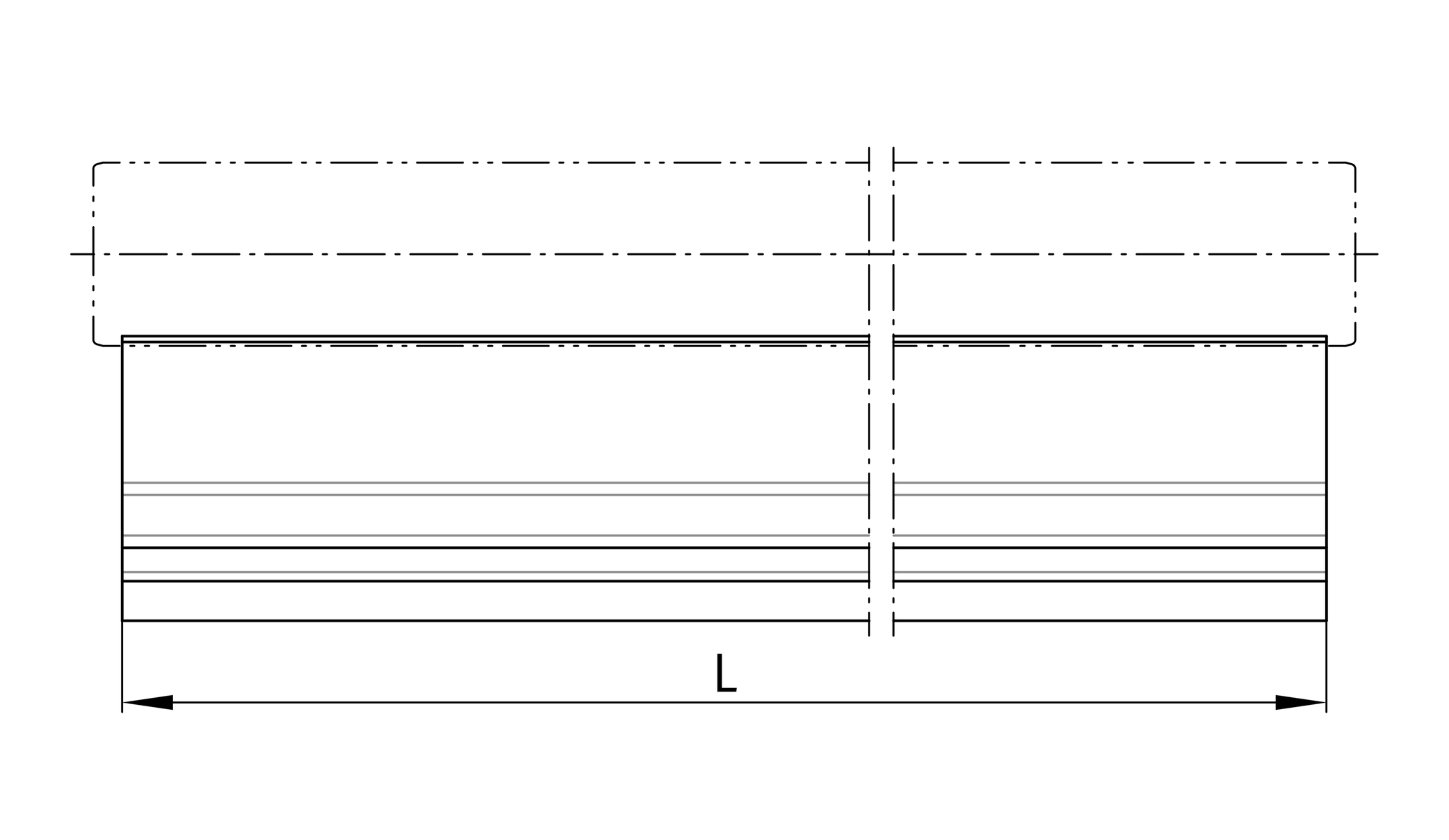

| Lmax | 1,219.2 mm | Support rail length |
| ≈m | 8.71 kg | Weight |
Mounting dimensions
| b3 | 22.352 mm | Support rail width prism |
| a2 | 47.625 mm | Support rail Width END |
| Tol a2 | 0.051 mm | Height dimension TOL high |
| Tol a2 | -0.051 mm | Height dimension TOL low |
| H1 | 12.7 mm | Support rail height END |
| m | 4.8 lbs/ft | Support rail weight |
Your current product variant
| Diameter shaft | 2" | dLW |
