Main Dimensions & Performance Data
| BGR | 24 | Dimension support body |
| h4 | 63.5 mm | Height dimension 1 |
| Tol h4 | 0.051 mm | Height dimension TOL high |
| Tol h4 | -0.051 mm | Height dimension TOL low |
| b | 76.2 mm | Support rail width bottom |
| Lmax | 1,219.2 mm | Support rail length |
| ≈m | 5.5 kg | Weight |

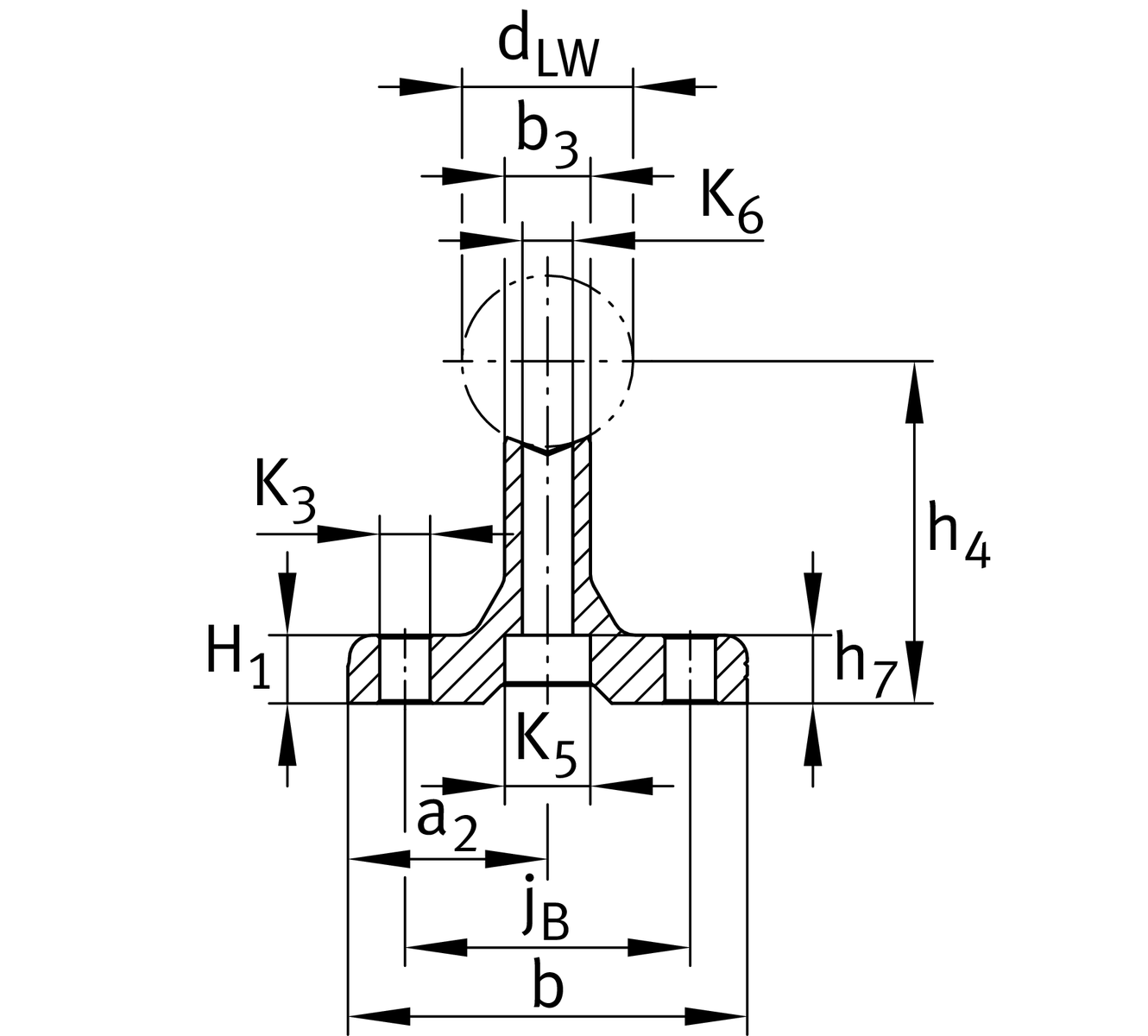

Mounting dimensions
| jB | 57.15 mm | distance bore |
| b3 | 17.526 mm | Support rail width prism |
| a2 | 38.1 mm | Support rail Width END |
| Tol a2 | 0.051 mm | Height dimension TOL high |
| Tol a2 | -0.051 mm | Height dimension TOL low |

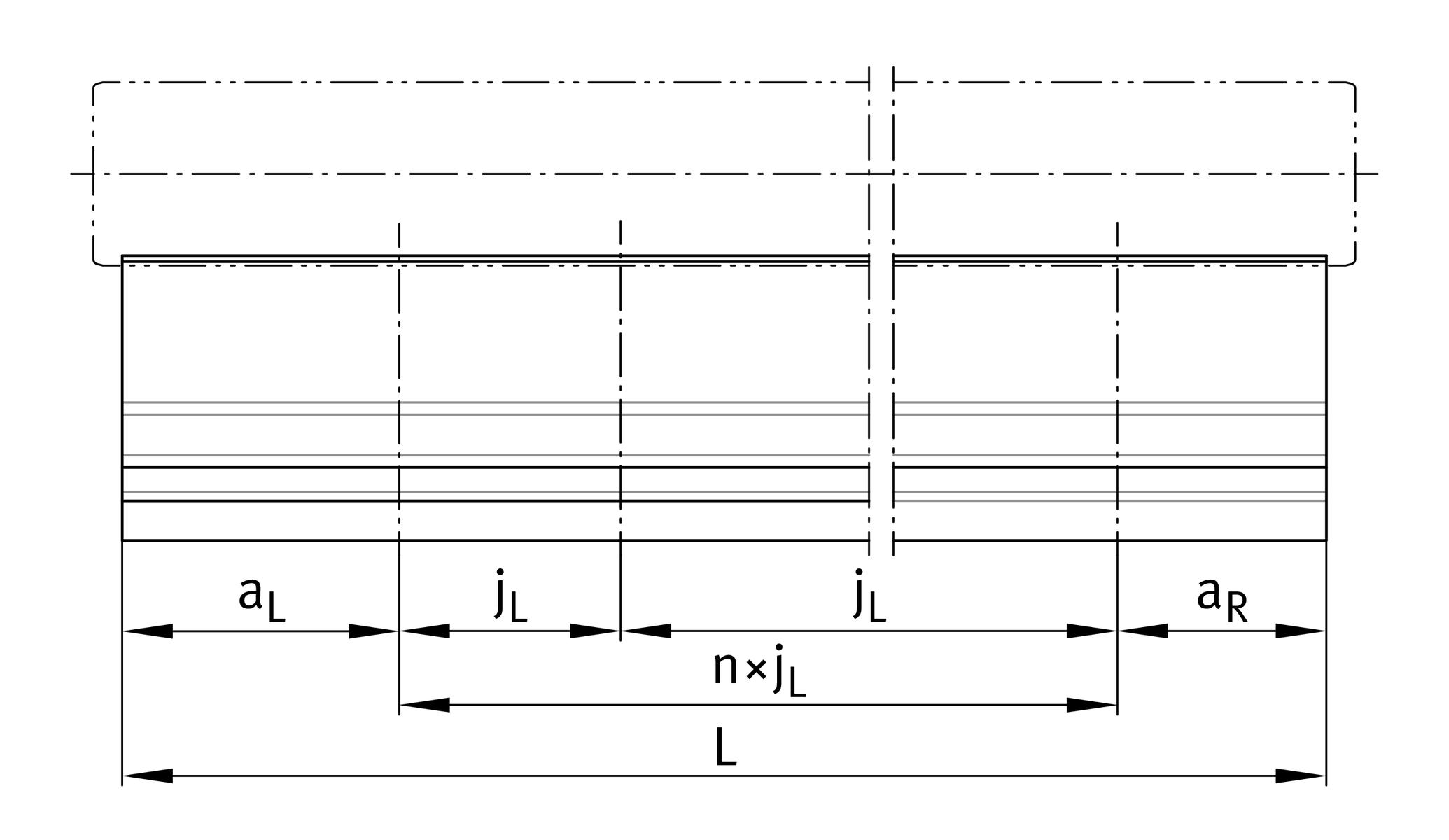

| jL | 203.2 mm | distance radial thread |
| aL min | 15.24 mm | distance radial thread aL (min) 2 |
| aL max | 177.8 mm | distance radial thread aL (max) 2 |
| aR min | 15.24 mm | distance radial thread right aR (min) 2 |
| aR max | 177.8 mm | distance radial thread right aR (max) 2 |
| H1 | 9.525 mm | Support rail height END |
| K3 | 8.712 mm | diameter adjacent construction bore |
| K5 | 15.875 mm | diameter counterbore |
| h7 | 9.906 mm | Depth counterbore |
| K6 | 10.312 mm | diameter connecting design bore |
| m | 3.03 lbs/ft | Support rail weight |
Your current product variant
| Diameter shaft | 1-1/2" | dLW |
