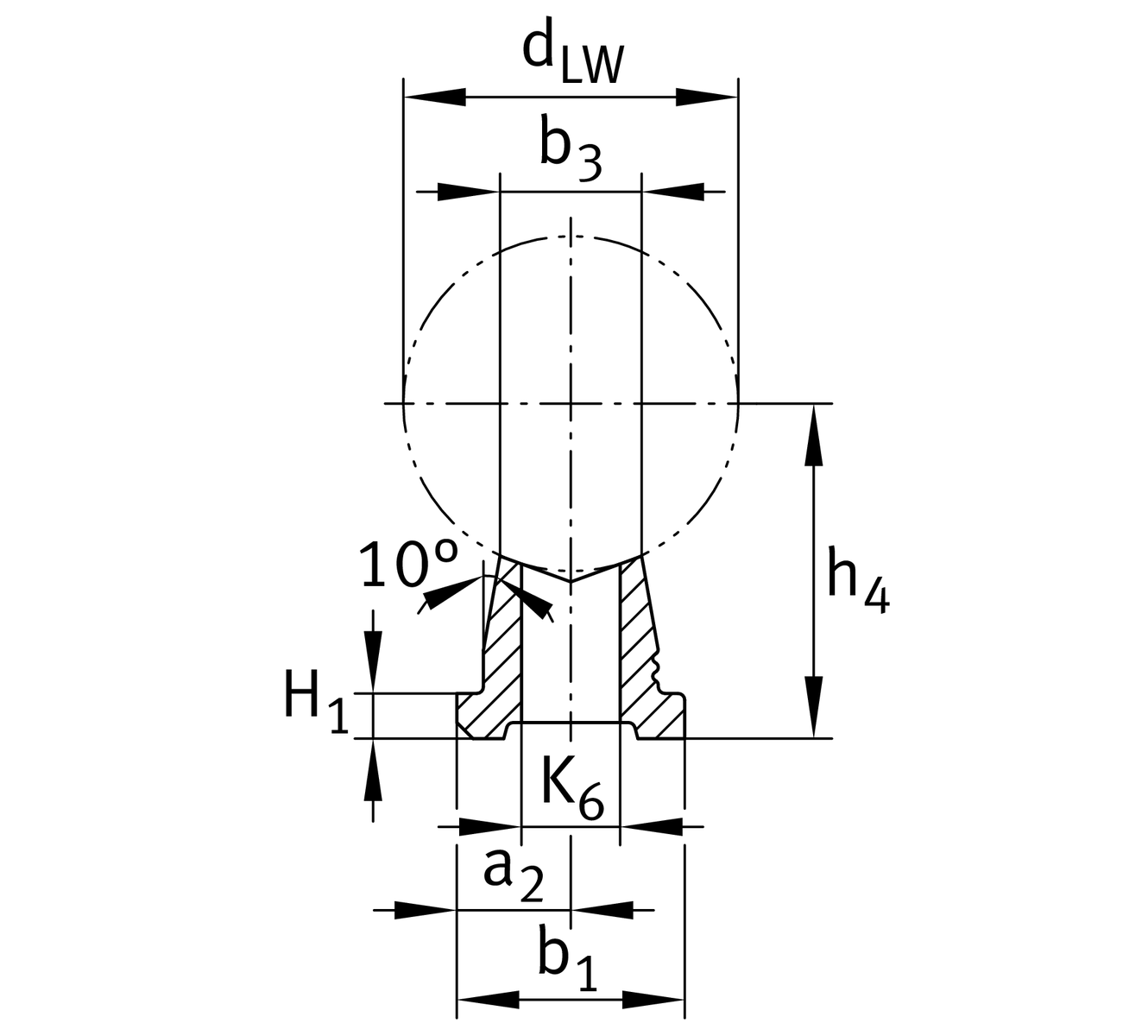

Main Dimensions & Performance Data
| BGR | 16 | Dimension of support body |
| h4 | 1 in | Height dimension 1 |
| Tol h4 | 0.002 in | Height dimension tolerance High |
| Tol h4 | -0.002 in | Height dimension tolerance Low |
| b1 | 0.69 in | Support Rail-Width-Bottom |
| Lmax | 48 in | Support rail length |

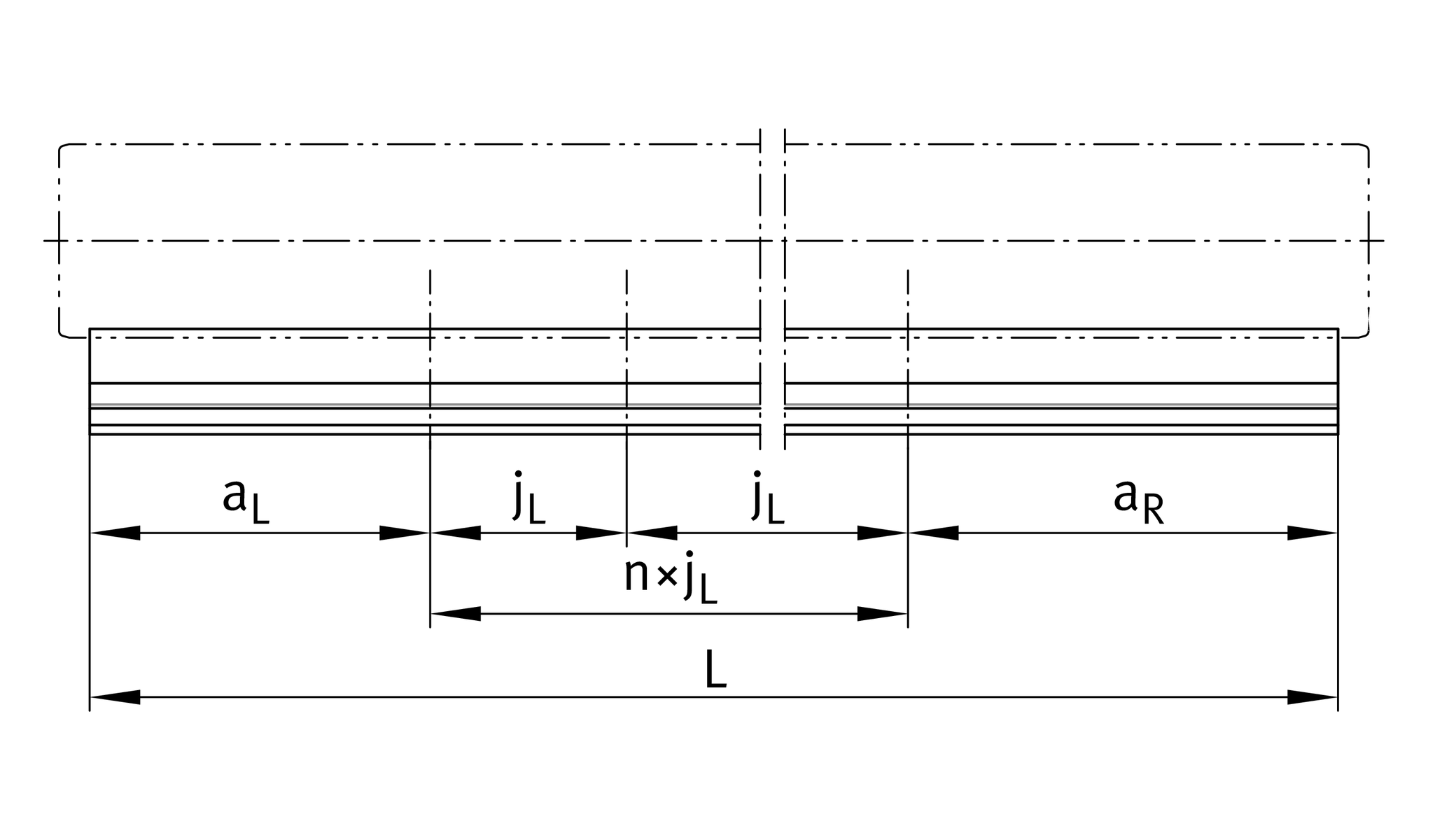

Mounting dimensions
| a2 | 0.345 in | Support rail width stop bar |
| Tol a2 | 0.05 in | Height dimension tolerance High |
| Tol a2 | -0.05 in | Height dimension tolerance Low |
| b3 | 0.422 in | Support rail width prism |
| H1 | 0.12 in | Support Rail height stop bar |
| m | 0.35 lbs/ft | Support Rail weight |
| K6 | 0.281 in | Connecting Bore |
| aL min | 0.6 in | distance radial thread left (min) 2 |
| aL max | 5.5 in | distance radial thread left (max) 2 |
| aR min | 0.6 in | distance radal thread right (min) 2 |
| aR max | 5.5 in | distance radal thread right (max) 2 |
| jL | 6 in | distance radial thread |
Your current product variant
| Diameter shaft | 1" | dLW |
