SK014-205-KRR-B
Self-aligning deep groove ball bearings SK014-205-KRR-B
Thêm vào yêu cầu báo giá

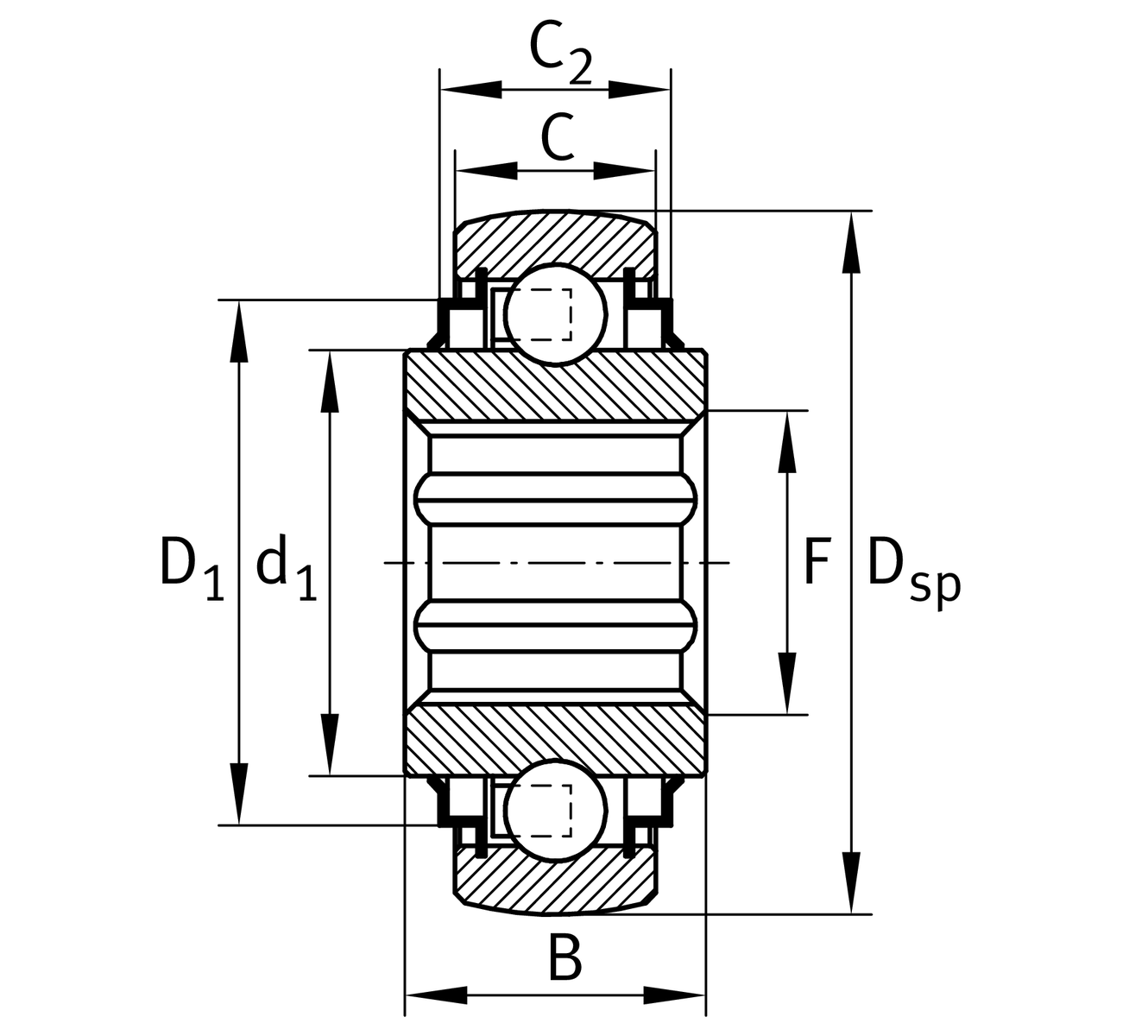

Main Dimensions & Performance Data
DSP
52 mm
Outside diameter
B
25.4 mm
Width
Cr
14,900 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
170.6 g
Weight

Dimensions
D1
42.6 mm
Outside diameter seal
C
15 mm
Width, outer ring
F
26.2 mm

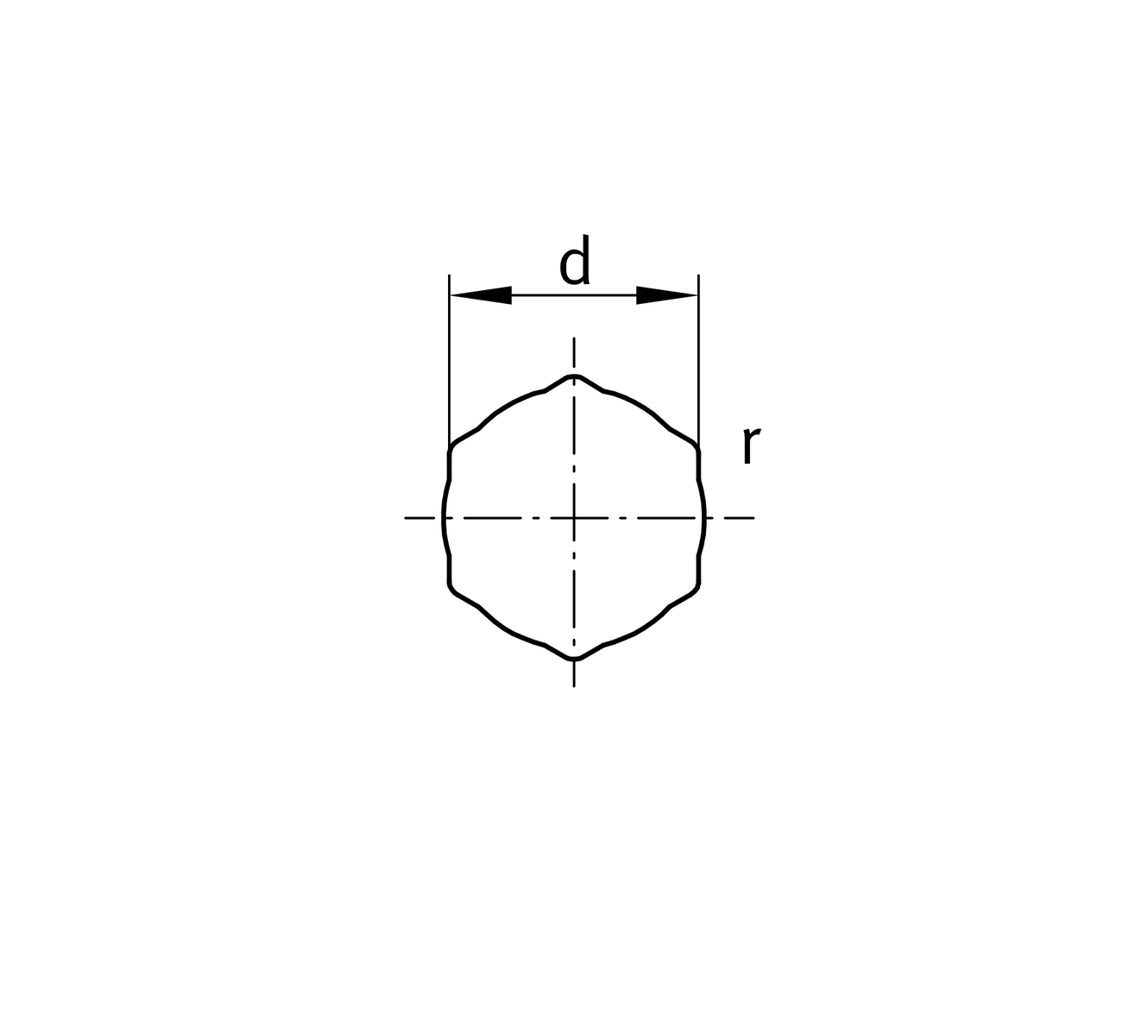

Maximum distance hexagonal bore
r
0.13 mm
Radius hexagonal bore
C2
16.7 mm
Sealing total width
d1
33.8 mm
Rib diameter inner ring
d
22.225 mm
Width of flats
0.15 mm
Width across flats upper tolerance
d
22.225 mm
Width across flats (Inch)
0.05 mm
Width across flats lower tolerance

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceBSpherical
Deviating ballset205205
