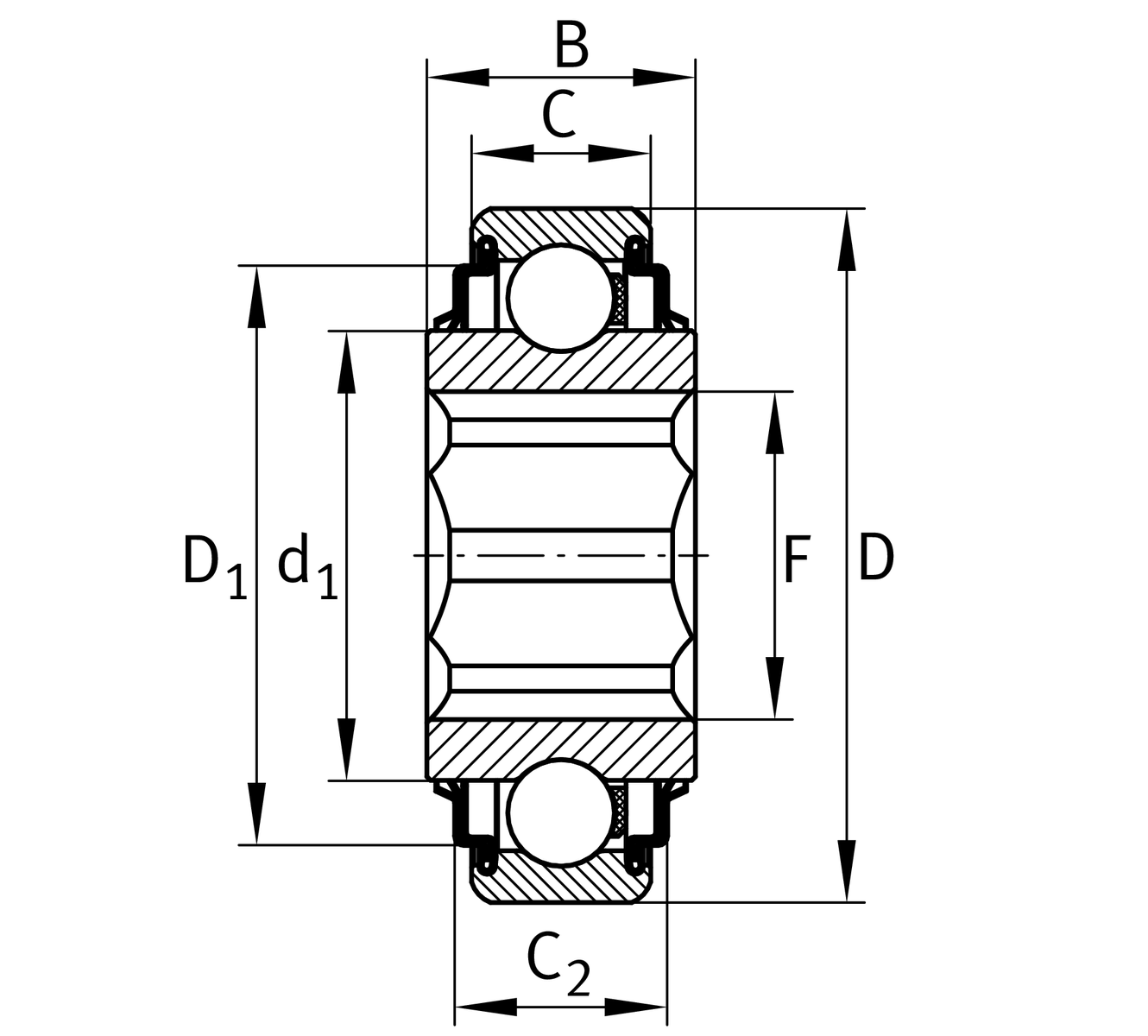

Main Dimensions & Performance Data
| D | 52 mm | Outside diameter |
| B | 25.4 mm | Width |
| Cr | 14,900 N | Basic dynamic load rating, radial |
| C0r | 7,800 N | Basic static load rating, radial |
| ≈m | 175 g | Weight |
Dimensions
| D1 | 42.5 mm | Outside diameter seal |
| C | 15 mm | Width, outer ring |

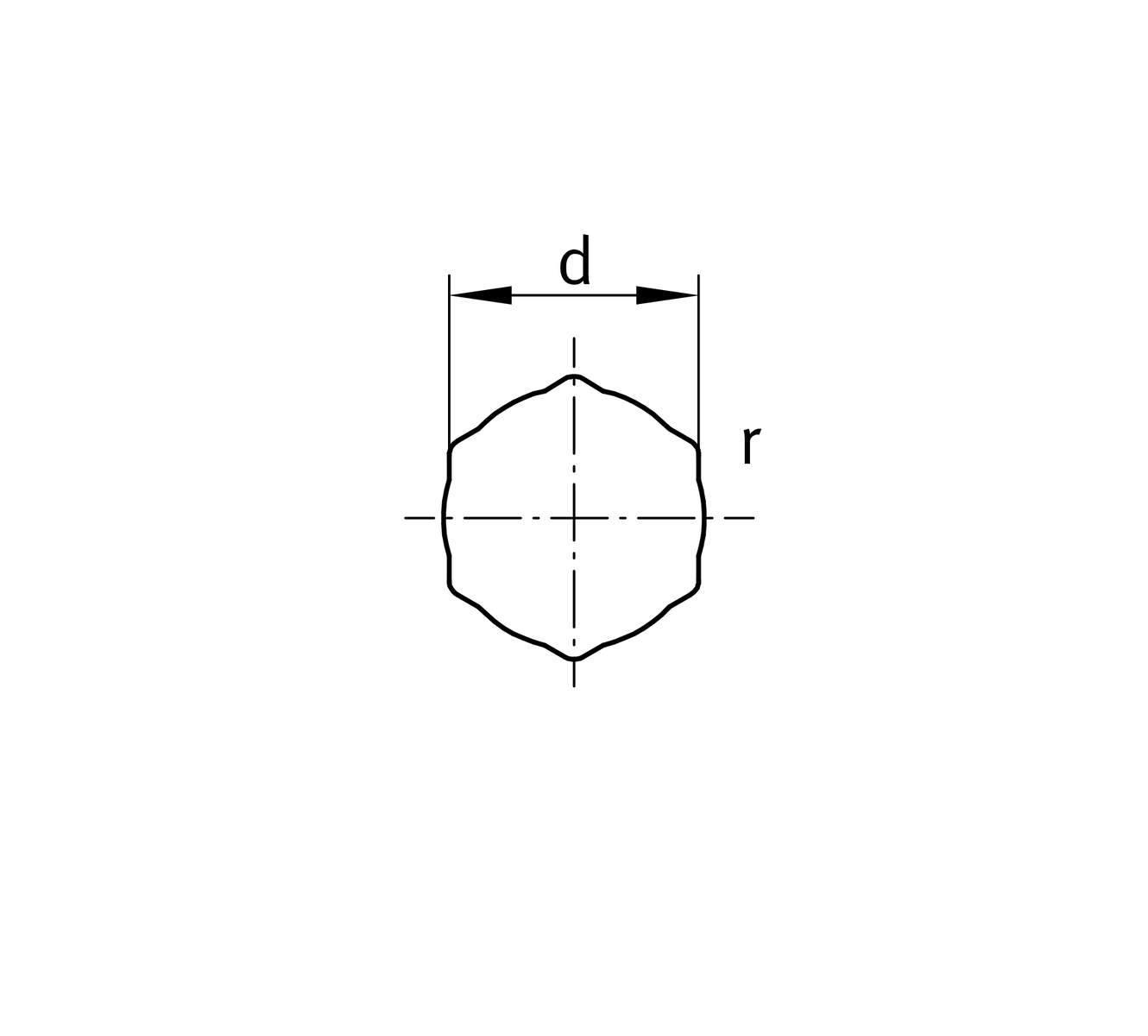

| F | 26.5 mm | Maximum distance hexagonal bore |
| r | 0.12 mm | Radius hexagonal bore |
| C2 | 16.5 mm | Sealing total width |
| d1 | 33.8 mm | Rib diameter inner ring |
| d | 22.225 mm | Width of flats |
| d | 22.225 mm | Width across flats (Inch) |
0.15 mm | Width across flats upper tolerance | |
0.05 mm | Width across flats lower tolerance |
Calculation factors
| f0 | 13.8 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Deviating ballset | 205 | 205 |
