Main Dimensions & Performance Data
| dLW | 16 mm | Diameter shaft |
| dLW | 16 | Dimension of shaft and support rail unit |
| dLWTol | h6 | Diameter tolerance shaft |
| h4 | 26 mm | Height dimension 1 |
| h4 tol | 0.02 mm | Height dimension tolerance (High) |
| h4 tol | -0.02 mm | Height dimension tolerance (Low) |
| b | 45 mm | Support rail width bottom |
| Lmax | 6,000 mm | Shaft and support rail unit-length 2 |
| Ltol max | 3 mm | length tolerance (max) |
| Ltol min | -3 mm | length tolerance (min) |
| ≈m | 2.95 kg/m | Weight |

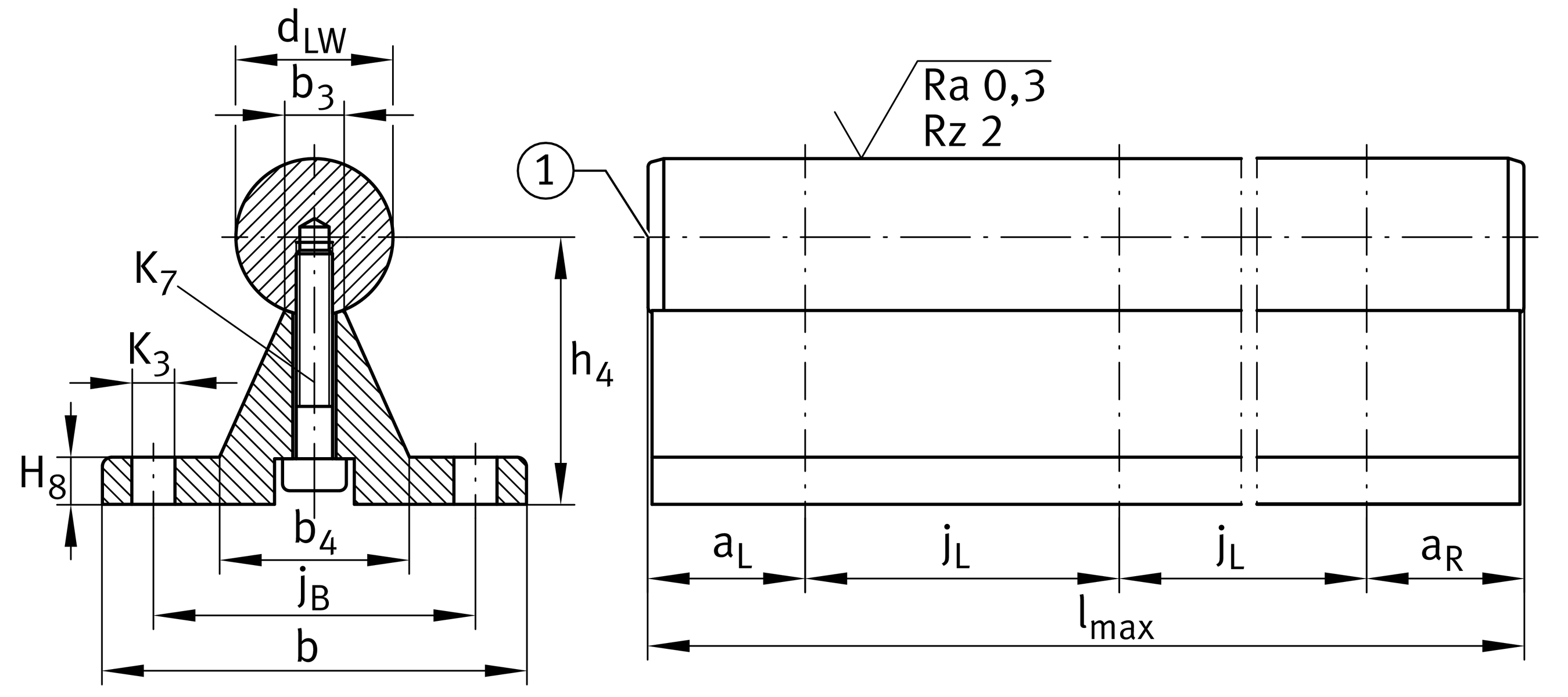

Mounting dimensions
| aL min | 20 mm | distance thread aL (min) 3 |
| aL max | 93 mm | distance thread aL (max) 3 |
| aR min | 20 mm | distance thread aR (min) 3 |
| aR max | 93 mm | distance thread aR (max) 3 |
| b3 | 6.8 mm | Support rail width prism |
| b4 | 22.4 mm | Support rail width top |
| H8 | 5 mm | Support rail thickness foot |
| jB | 33 mm | bore width distance jB |
| jL | 100 mm | bore length distance jL |
| K3 | 5.5 mm | Adjacent construction bore 4 |
| K7 | M5x22 | screw size |
| ms | 2.95 kg/m | Shaft and Support rail unit weight |
