Main Dimensions & Performance Data
| dLW | 12 mm | Diameter shaft |
| dLW | 12 | Dimension of shaft and support rail unit |
| dLWTol | h6 | Diameter tolerance shaft |
| h4 | 22 mm | Height dimension 1 |
| h4 tol | 0.1 mm | Height dimension tolerance (High) |
| h4 tol | -0.1 mm | Height dimension tolerance (Low) |
G4 | Accuracy class h4 2 | |
0,03 | Variation from h4 | |
| b | 40 mm | Support rail width bottom |
| Lmax | 4,000 mm | Shaft and support rail unit-length 3 |
| Ltol max | 2 mm | length tolerance (max) |
| Ltol min | -2 mm | length tolerance (min) |
| ≈m | 1.6 kg/m | Weight |

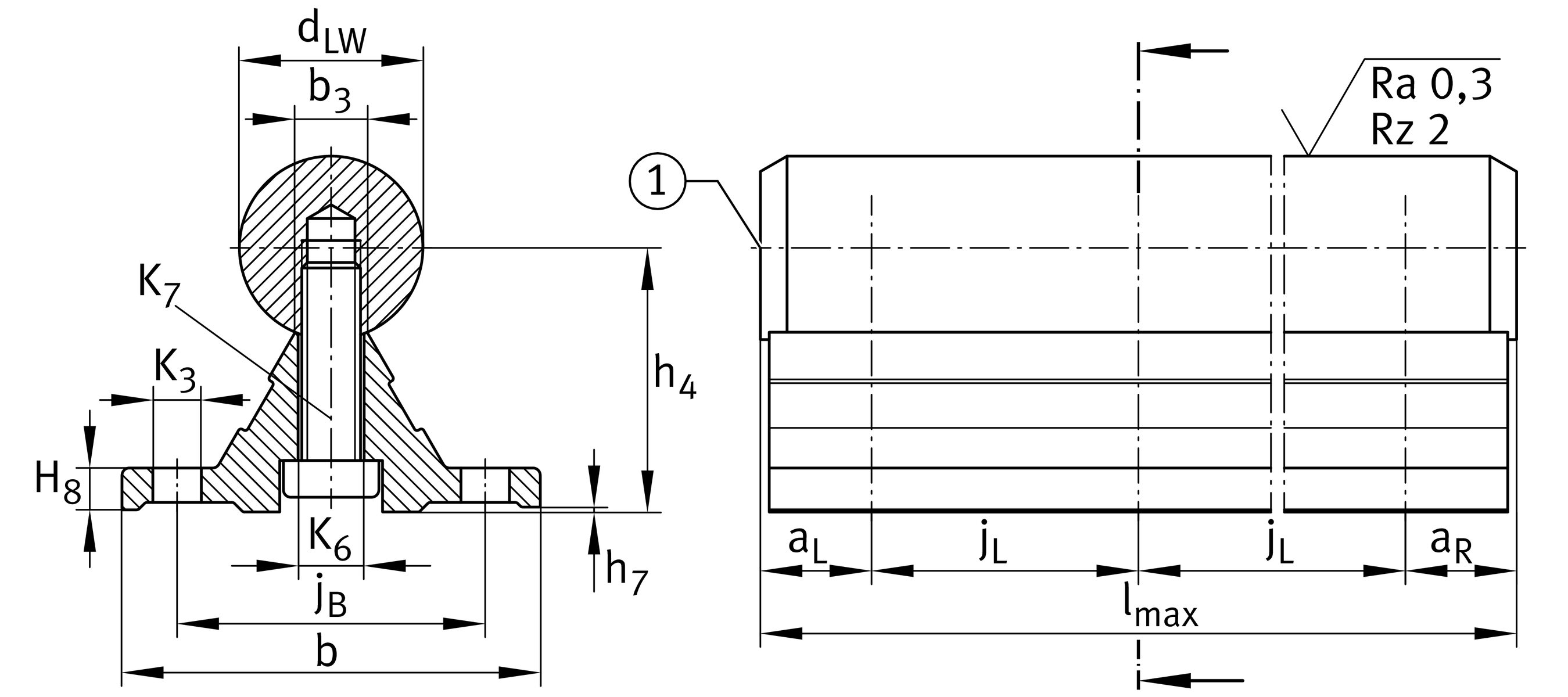

Mounting dimensions
| aL min | 20 mm | distance thread aL (min) 4 |
| aL max | 69 mm | distance thread aL (max) 4 |
| aR min | 20 mm | distance thread aR (min) 4 |
| aR max | 69 mm | distance thread aR (max) 4 |
| b3 | 5 mm | Support rail width prism |
| H8 | 5 mm | Support rail thickness foot |
| h7 | 0.2 mm | Gap dimension support body foot |
| jB | 29 mm | bore width distance jB |
| jL | 75 mm | bore length distance jL |
| K3 | 4.5 mm | Adjacent construction bore 5 |
| K6 | 4.5 mm | Bore connection construction |
| K7 | M4x18 | screw size |
| ms | 1.6 kg/m | Shaft and Support rail unit weight |
