TKVD25-W-U

Profile rail TKVD25-W-U

Thêm vào yêu cầu báo giá

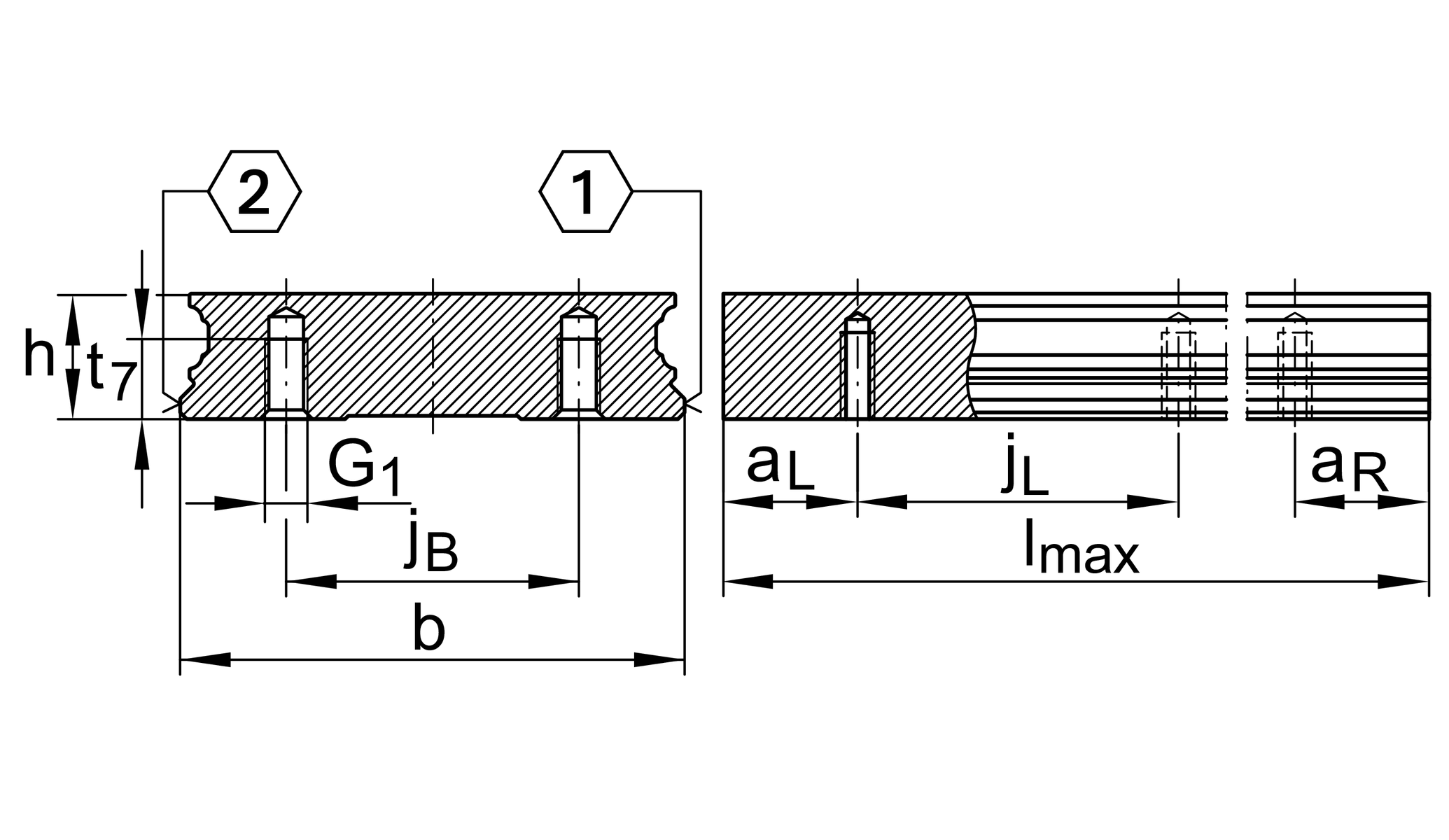

Main Dimensions & Performance Data

h	18.7 mm	Height
b	69 mm	Width
Tol b	-0.005 mm	Upper tolerance
Tol b	-0.035 mm	Lower tolerance
≈m	9.4 kg/m	Weight

Mounting dimensions

G₁	M6	Thread
G1 M_A	17 Nm	Tightening torque ¹

Dimensions

l_max	6,000 mm	Max length single piece guideway ²
a_{L max}	71 mm	Distance ³
a_{L min}	20 mm	Distance ³
a_{R max}	71 mm	Distance ³
a_{R min}	20 mm	Distance ³
j_L	80 mm	Increment
j_B	40 mm	Increment
a₅	14.5 mm	Distance
t₇	12 mm	Thread length

Additional information

	KWVE25-W...	usable carriage(s)
	KUVE25-W...	usable linear systems

Your current product variant

Size code	25
Length	~6000
Guideway design	W	wide execution

Thêm vào yêu cầu báo giá
