Main Dimensions & Performance Data
| h | 18.7 mm | Height |
| b | 69 mm | Width |
| Tol b | -0.005 mm | Upper tolerance |
| Tol b | -0.035 mm | Lower tolerance |
| ≈m | 9.4 kg/m | Weight |

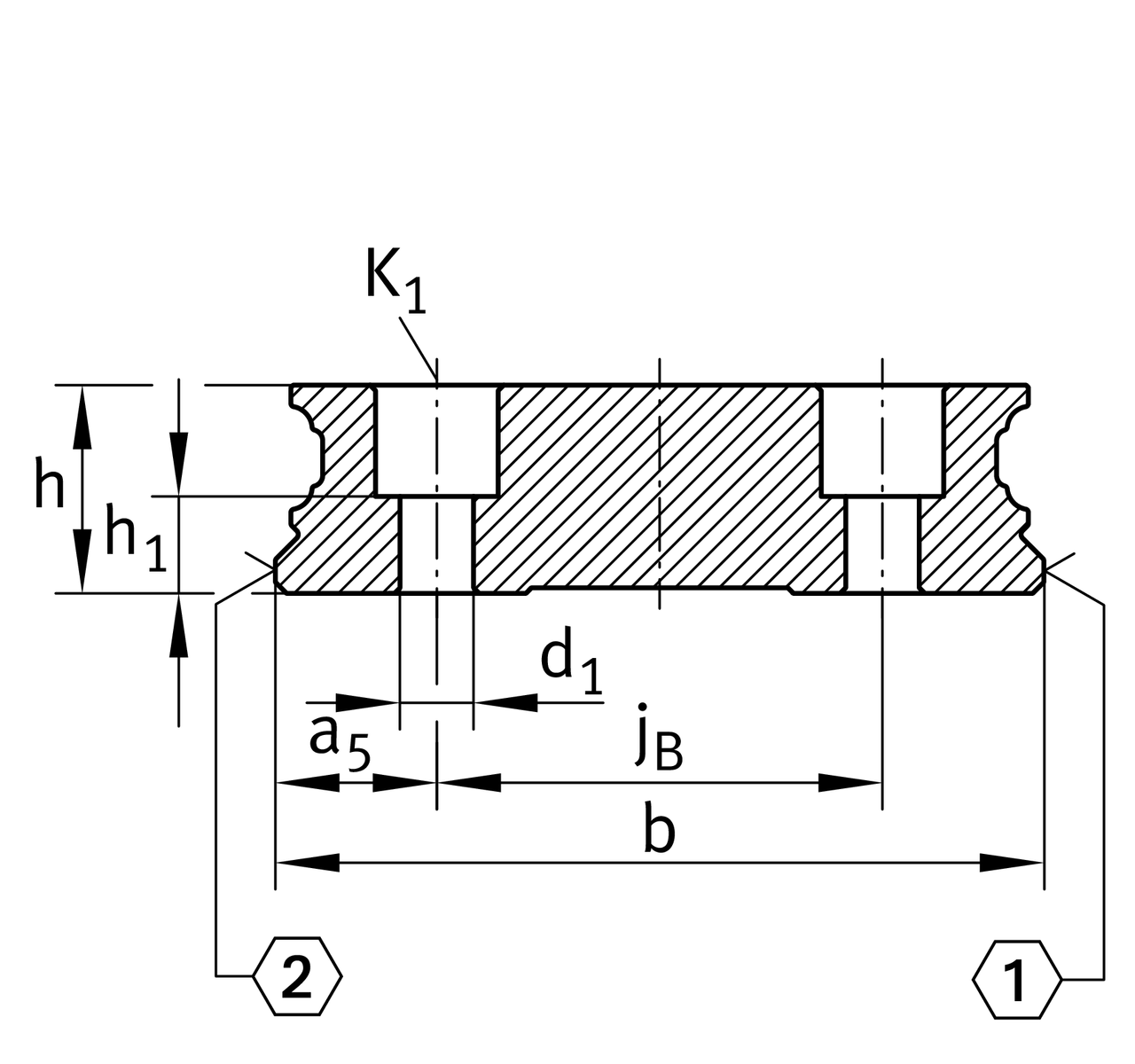

Mounting dimensions
| K1 | M6 | Thread |
| K1 MA | 17 Nm | Tightening torque 1 |
| d1 | 6.8 mm | Bore diameter |

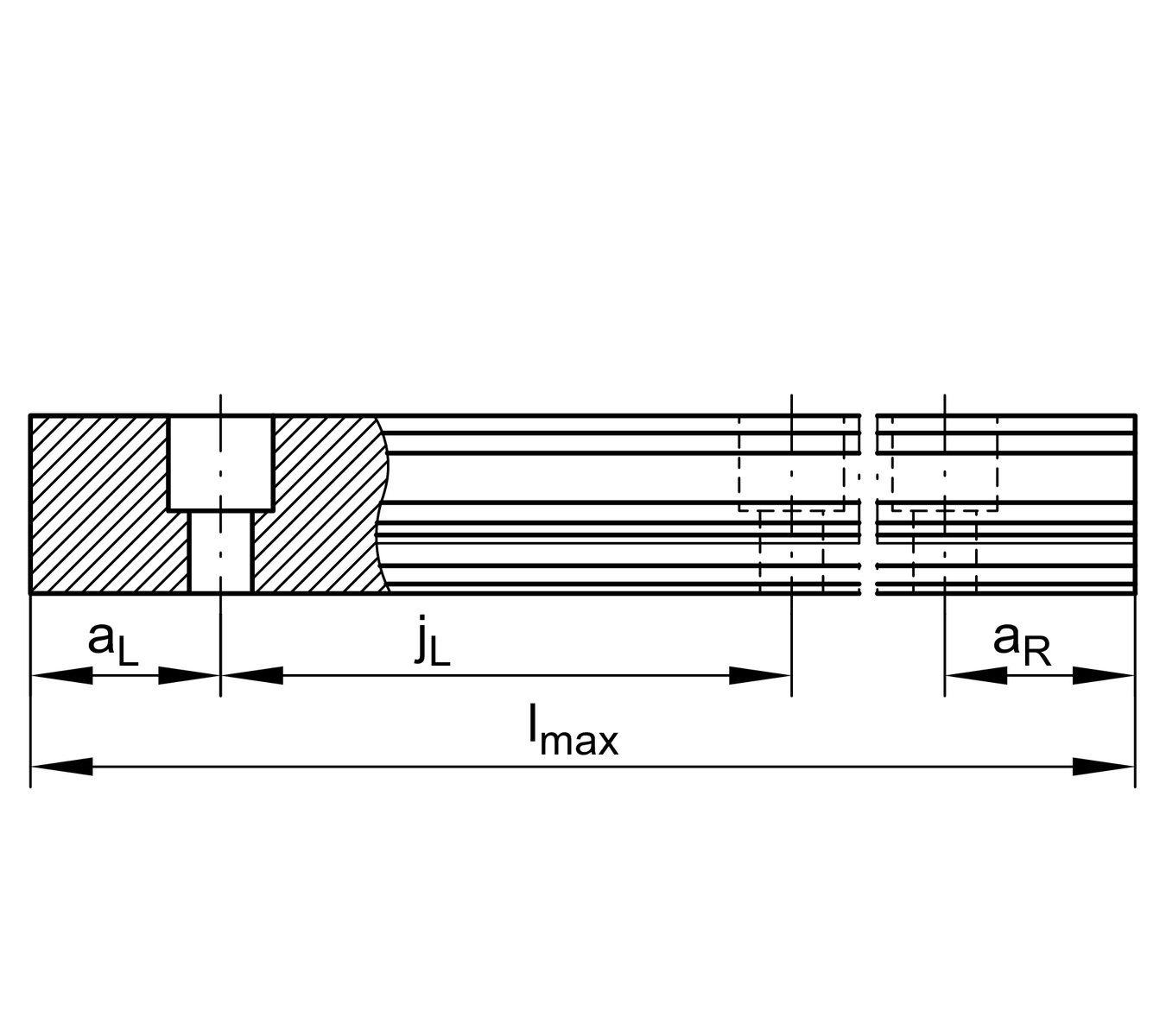

Dimensions
| lmax | 6,000 mm | Max length single piece guideway 2 |
| aL max | 71 mm | Distance 3 |
| aL min | 20 mm | Distance 3 |
| aR max | 71 mm | Distance 3 |
| aR min | 20 mm | Distance 3 |
| jL | 80 mm | Increment |
| jB | 40 mm | Increment |
| a5 | 14.5 mm | Distance |
| h1 | 8.2 mm | length |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Distance Distance |
Additional information
KWVE25-W... | usable carriage(s) | |
KUVE25-W... | usable linear systems |
Your current product variant
| Size code | 25 | |
| Length | ~6000 | |
| Guideway design | W | wide execution |
