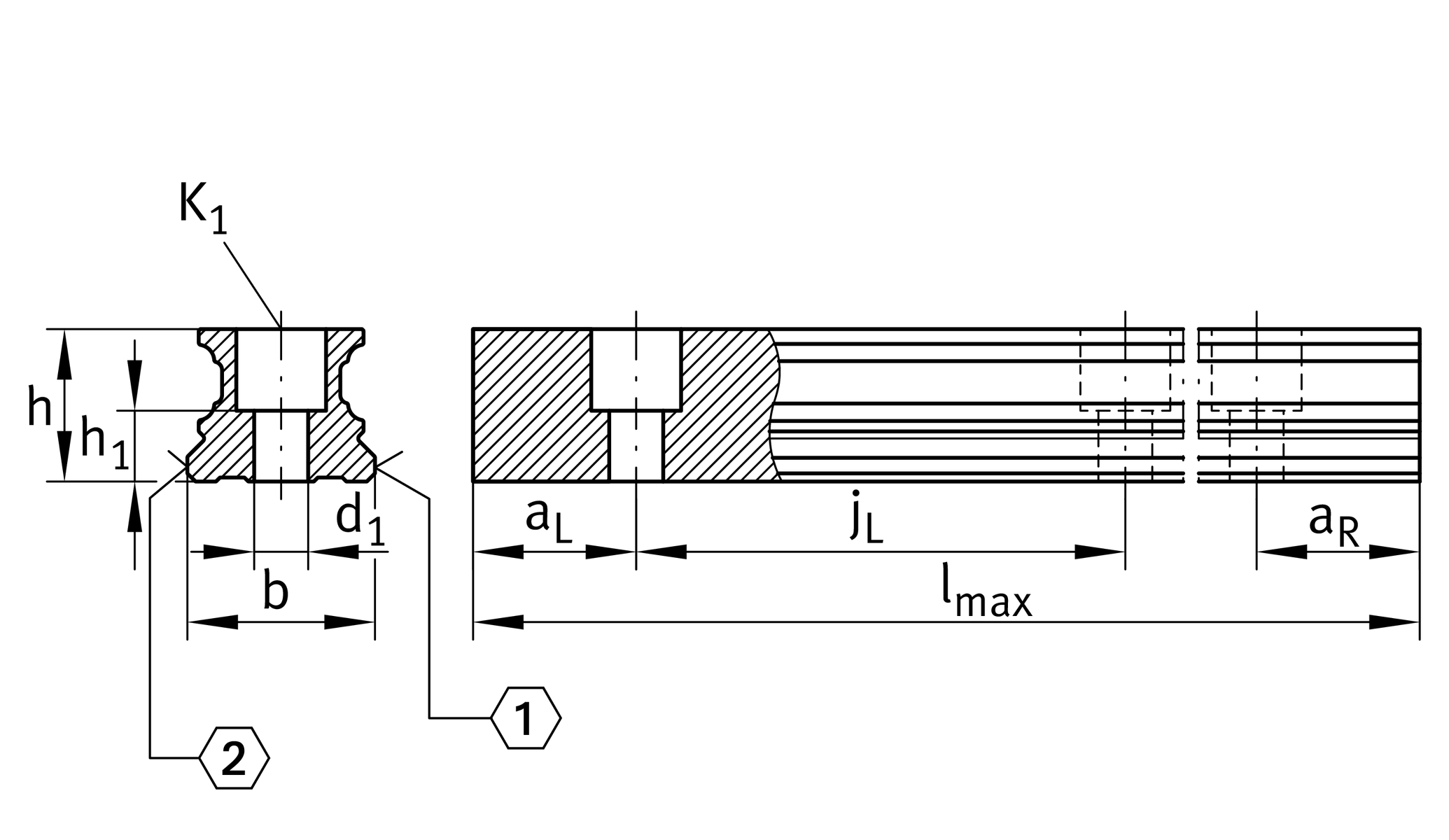

Main Dimensions & Performance Data
| h | 18.7 mm | Height |
| b | 23 mm | Width |
| Tol b | -0.005 mm | Upper tolerance |
| Tol b | -0.035 mm | Lower tolerance |
| ≈m | 2.7 kg/m | Weight |
Mounting dimensions
| K1 | M6 | Thread |
| K1 MA | 17 Nm | Tightening torque 1 |
| d1 | 6.8 mm | Bore diameter |
Dimensions
| lmax | 6,000 mm | Max length single piece guideway 2 |
| aL max | 53 mm | Distance 3 |
| aL min | 20 mm | Distance 3 |
| aR max | 53 mm | Distance 3 |
| aR min | 20 mm | Distance 3 |
| jL | 60 mm | Increment |
| h1 | 8.2 mm | length |
| Tol h1 | 0.5 mm | Upper tolerance |
| Tol h1 | -0.5 mm | Distance Distance |
Additional information
KWVE25-B.. | usable carriage(s) | |
KUVE25-B.. | usable linear systems |
Your current product variant
| Size code | 25 | |
| Length | ~6000 |
