TKVD20-W-U
Profile rail TKVD20-W-U
Thêm vào yêu cầu báo giá

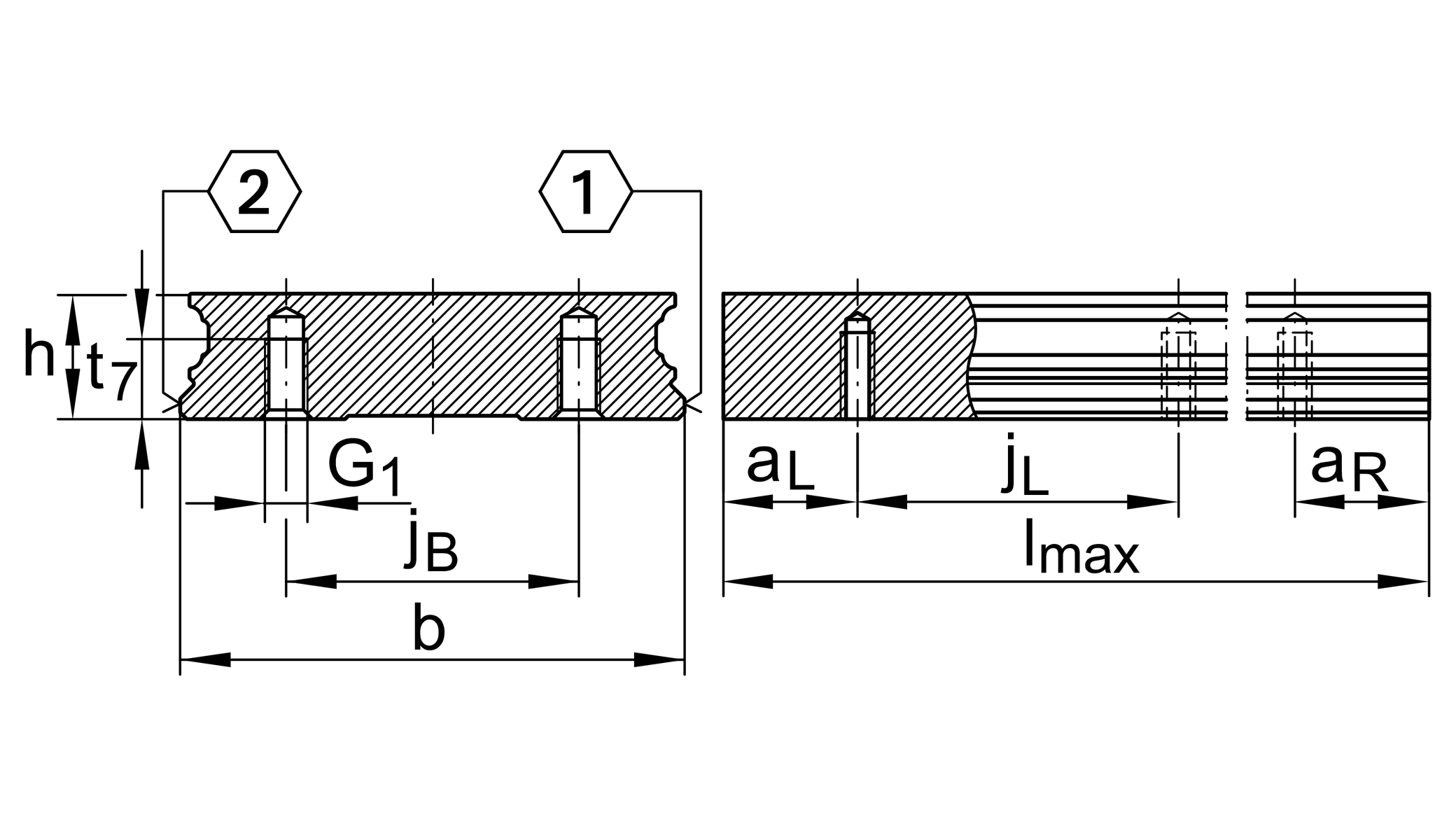

Main Dimensions & Performance Data
h
17 mm
Height
b
42 mm
Width
Tol b
-0.005 mm
Upper tolerance
Tol b
-0.035 mm
Lower tolerance
≈m
5 kg/m
Weight

Mounting dimensions
G1
M6
Thread
G1 MA
17 Nm
Tightening torque 1

Dimensions
lmax
2,940 mm
Max length single piece guideway 2
aL max
53 mm
Distance 3
aL min
20 mm
Distance 3
aR max
53 mm
Distance 3
aR min
20 mm
Distance 3
jL
60 mm
Increment
jB
24 mm
Increment
a5
9 mm
Distance
t7
10 mm
Thread length

Additional information
KWVE20-W...
usable carriage(s)
KUVE20-W...
usable linear systems

Your current product variant
Size code20
Length~3000
Guideway designWwide execution
