FAG INA Schaeffler
INA
DRS35110
Seal carrier Assy DRS35110
Thêm vào yêu cầu báo giá

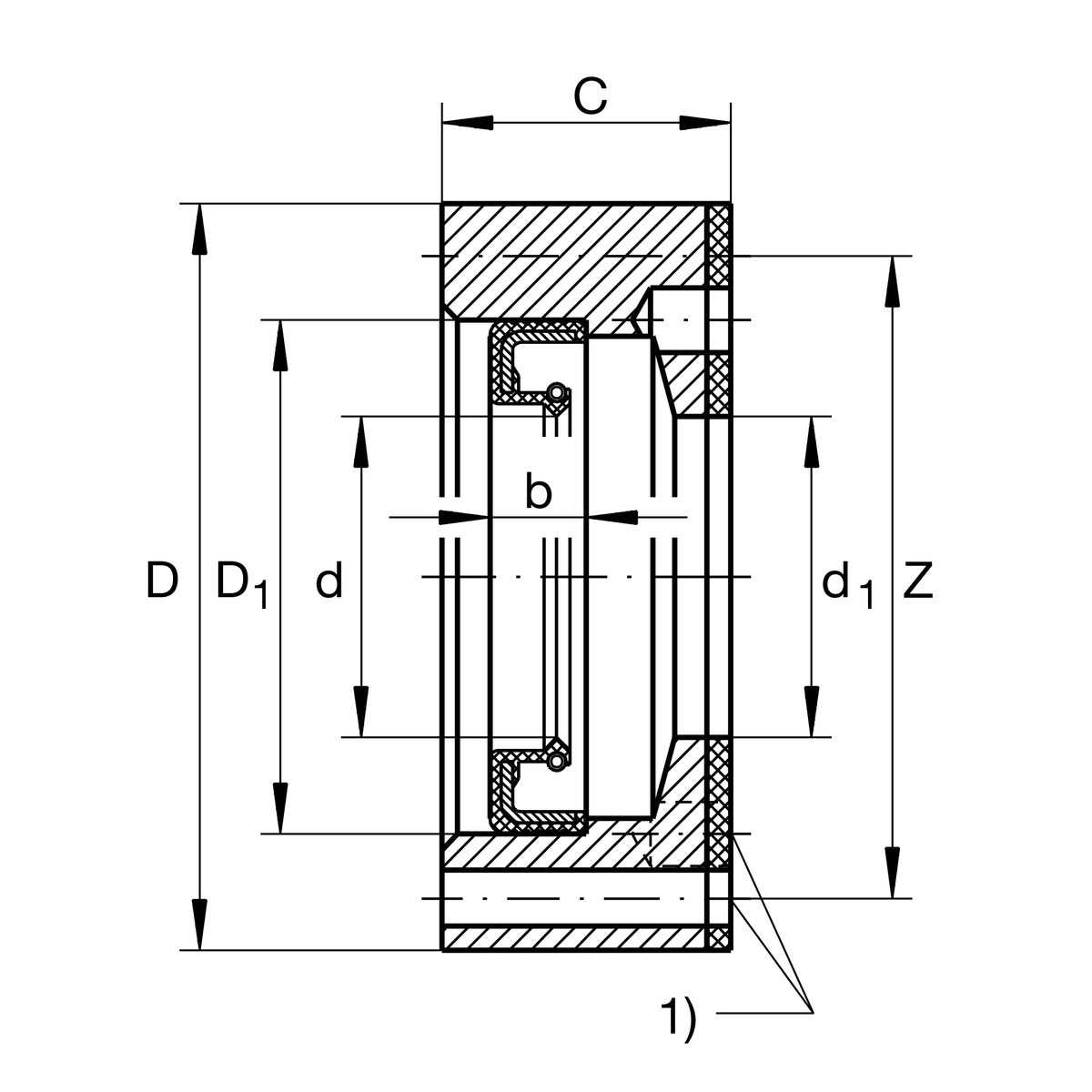

Main Dimensions & Performance Data
d1
73 mm
Inner diameter centering
D
110 mm
Outside diameter
C
25 mm
Width wave carrier
≈m
0.603 kg
Weight

Dimensions
Z
101 mm
Pitch circle diameter (holes)
d
73 mm
Inner diameter centering seal lip
D1
95 mm
Outside diameter seal
b
10 mm
Width seal
M3X30
Screw size
1)
4
Number of screws

Additional information
ZARF35110(-L)-TV
Bearing designation
