FAG INA Schaeffler
INA
DRS45105
Seal carrier Assy DRS45105
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
70 mm
Inner diameter centering
D
105 mm
Outside diameter
C
20 mm
Width wave carrier
≈m
0.506 kg
Weight

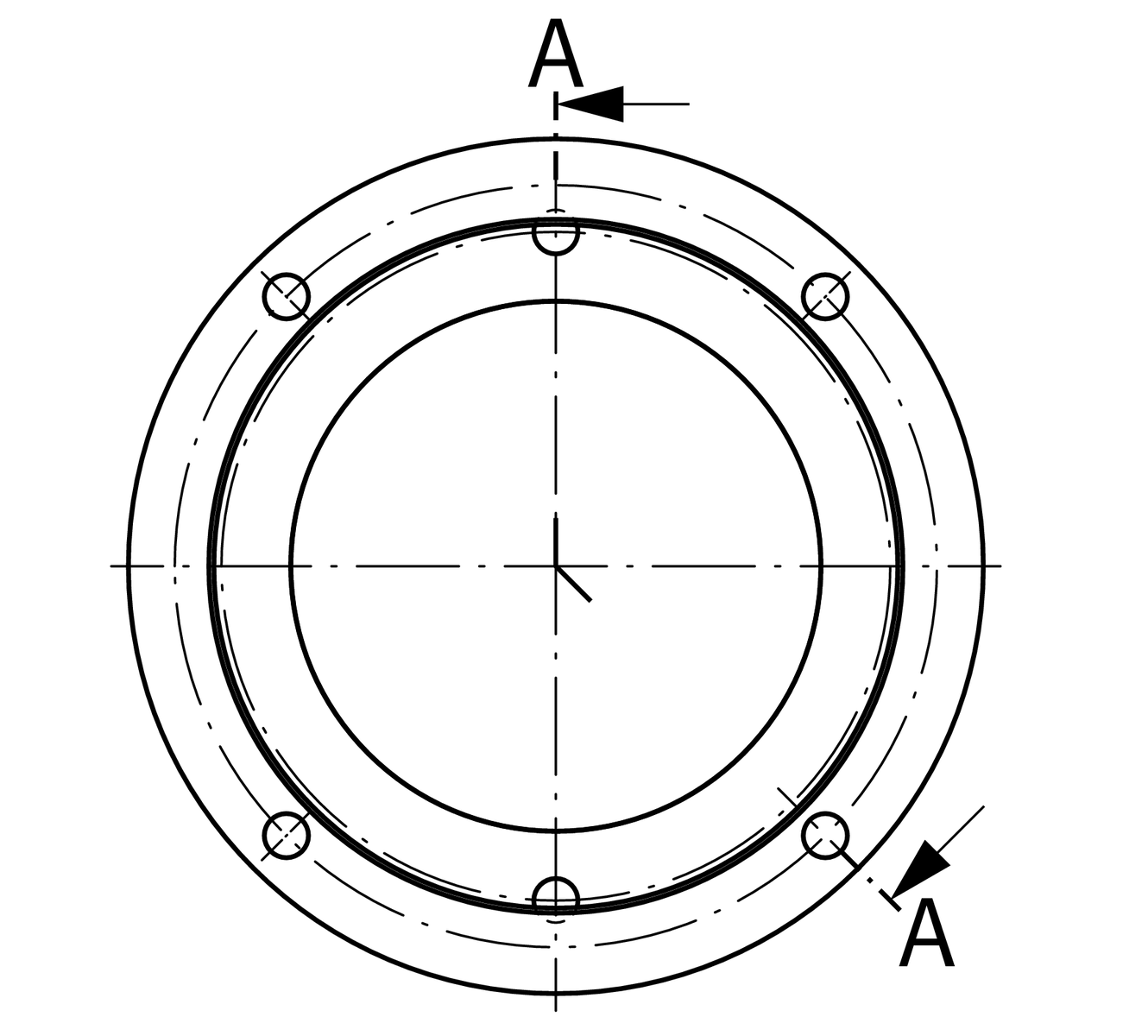

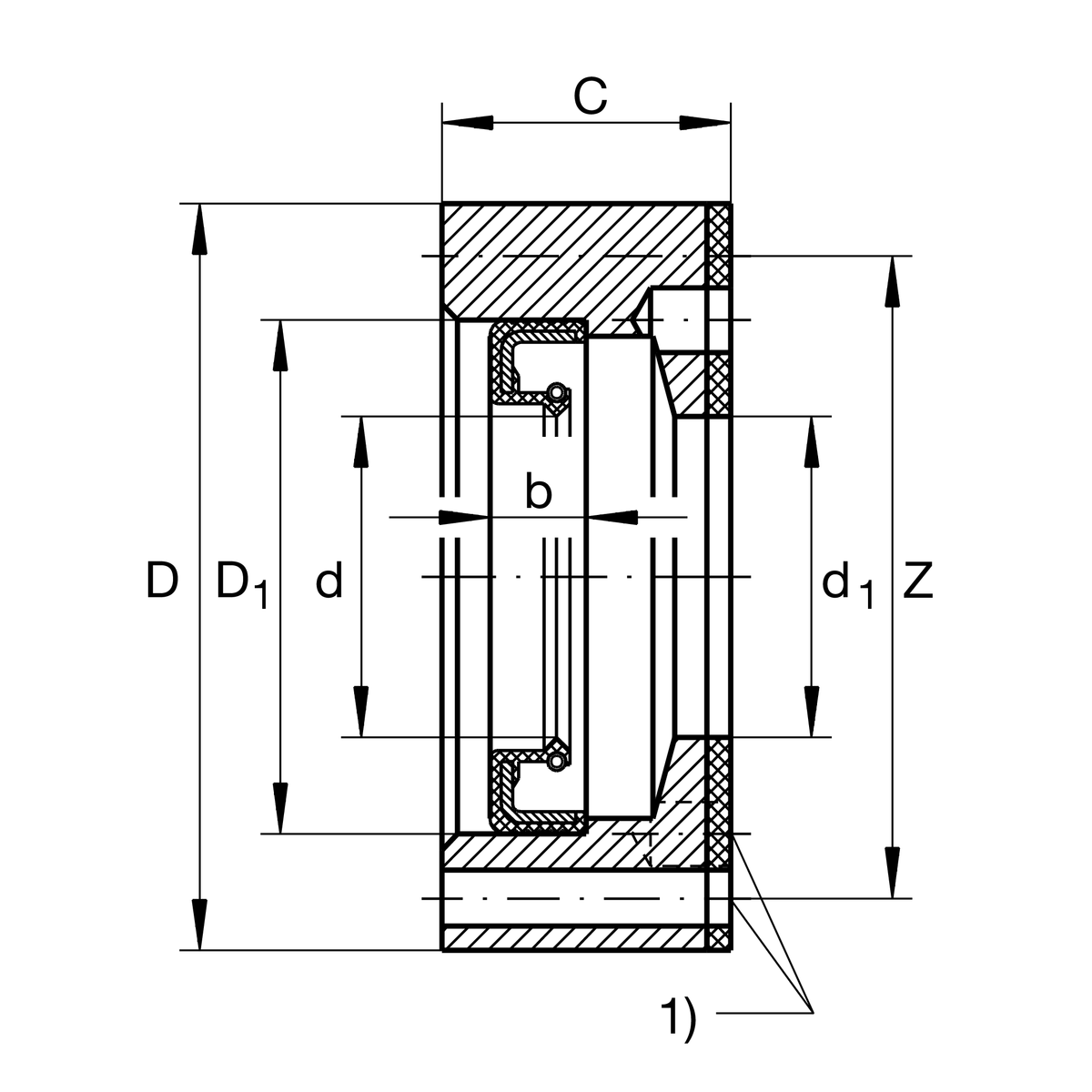

Dimensions
Z
95 mm
Pitch circle diameter (holes)
d
70 mm
Inner diameter centering seal lip
D1
85 mm
Outside diameter seal
b
8 mm
Width seal
M4X30
Screw size
1)
4
Number of screws

Additional information
ZARF45105(-L)-TV
Bearing designation
