Main Dimensions & Performance Data
| d | 280 mm | Bore diameter |
| D | 460 mm | Outside diameter |
| B | 146 mm | Width |
| Cr | 2,750,000 N | Basic dynamic load rating, radial |
| C0r | 4,200,000 N | Basic static load rating, radial |
| Cur | 325,000 N | Fatigue load limit, radial |
| nG | 355 1/min | Limiting speed |
| ≈m | 90.8 kg | Weight |

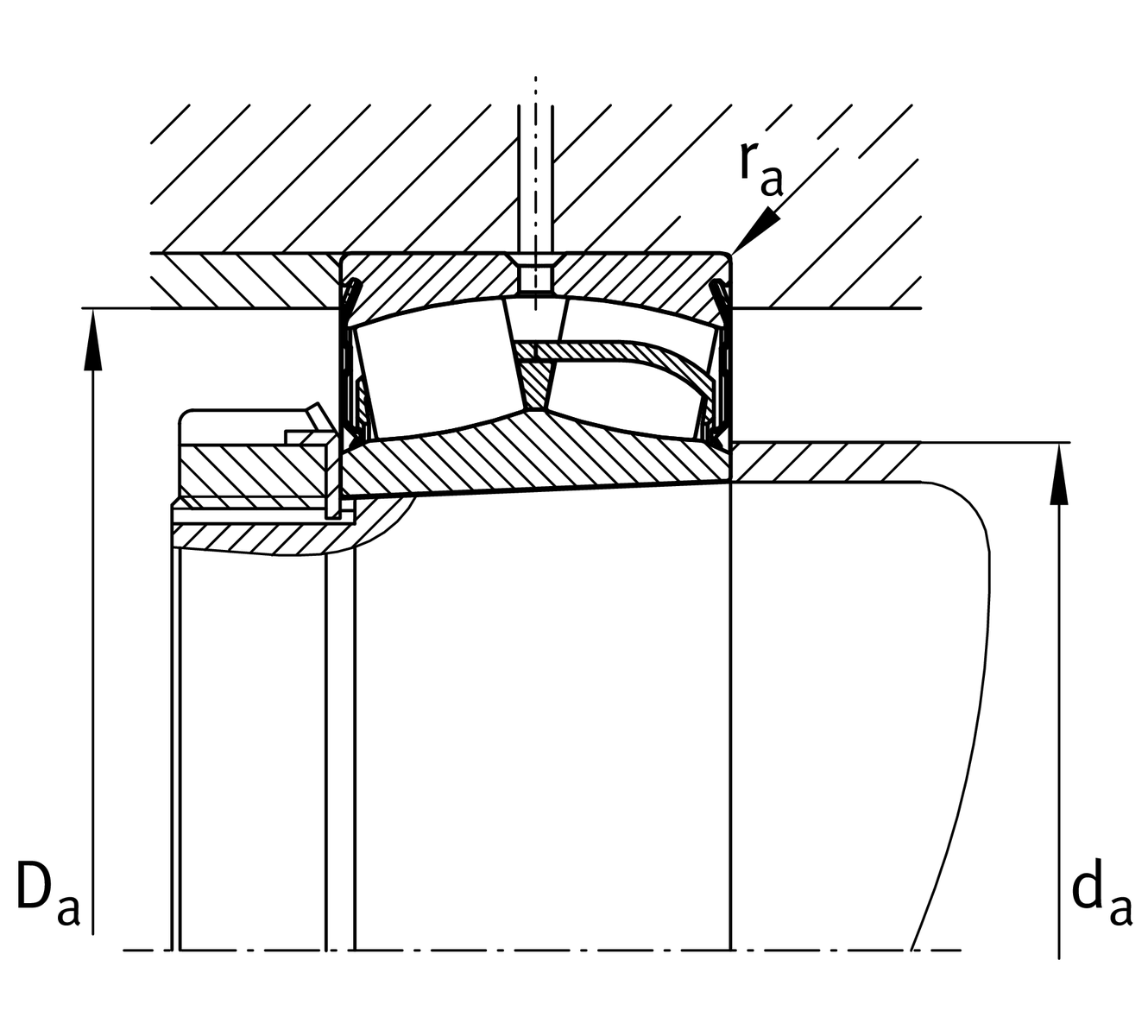

Mounting dimensions
| da min | 300 mm | Minimum diameter shaft shoulder |
| da max | 315 mm | Maximum diameter of shaft shoulder |
| Da max | 440 mm | Maximum diameter of housing shoulder |
| ra max | 4 mm | Maximum recess radius |
| db min | 296 mm | Minimum cavity diameter of the sleeve |
| Ba min | 12 mm | Minimum cavity width of the sleeve |

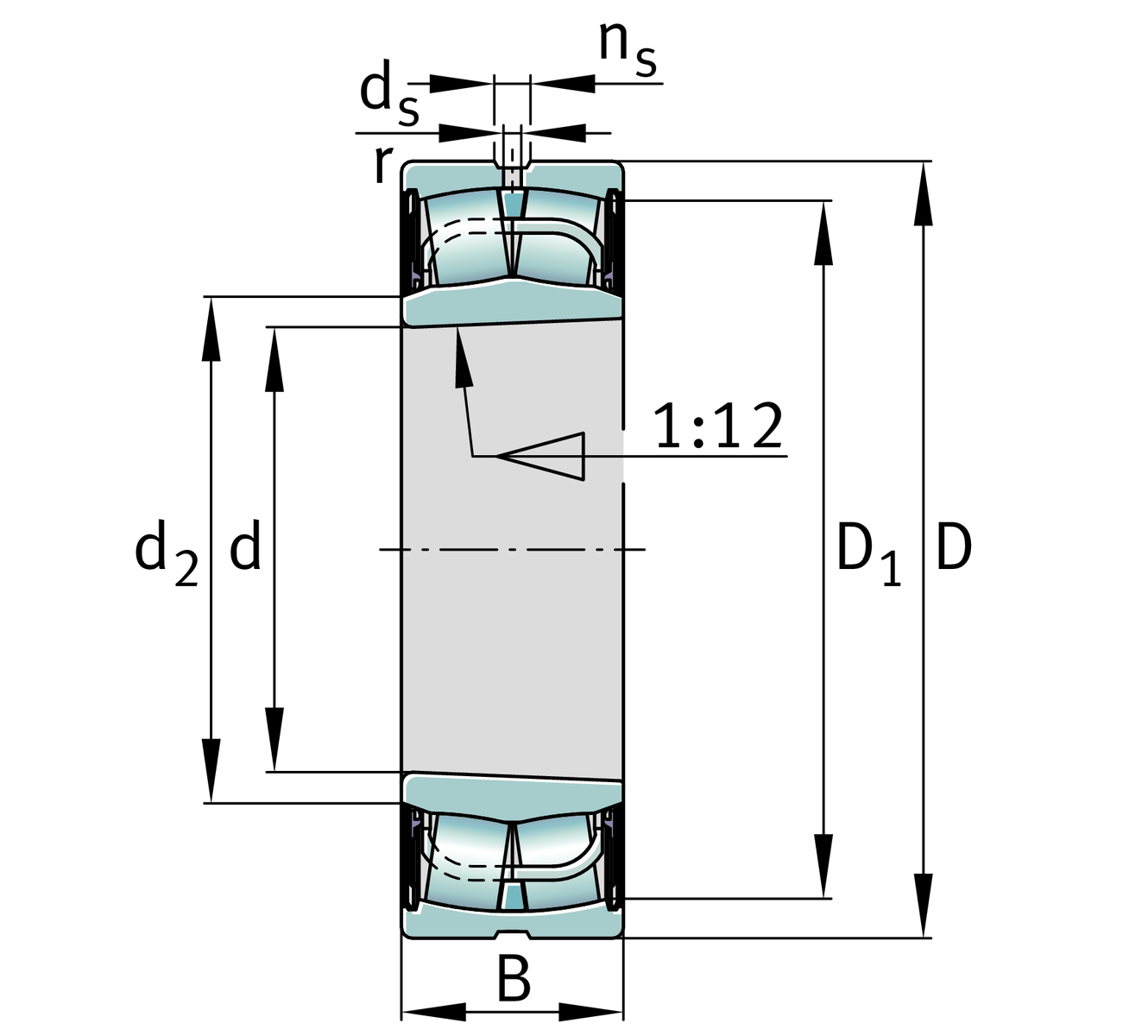

Dimensions
| rmin | 5 mm | Minimum chamfer dimension |
| D1 | 431 mm | Bore diameter outer ring |
| d2 | 315 mm | Raceway diameter of the inner ring |
| ds | 9.5 mm | Diameter lubrication hole |
| ns | 17.7 mm | Width of lubricating groove |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Calculation factors
| e | 0.28 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2.37 | Dynamic axial load factor |
| Y2 | 3.53 | Dynamic axial load factor |
| Y0 | 2.32 | Static axial load factor |
Additional information
H3156-HG-T | Adapter sleeve | |
AH3156G | Withdrawal sleeve |
Your current product variant
| Design | BE | with lose center lip ring |
| Bore type | K | Tapered, taper 1:12 |
| Cage | JPB | Sheet metal cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard | |
| Sealing | 2RSR | Seals on both sides, normal temperature |
