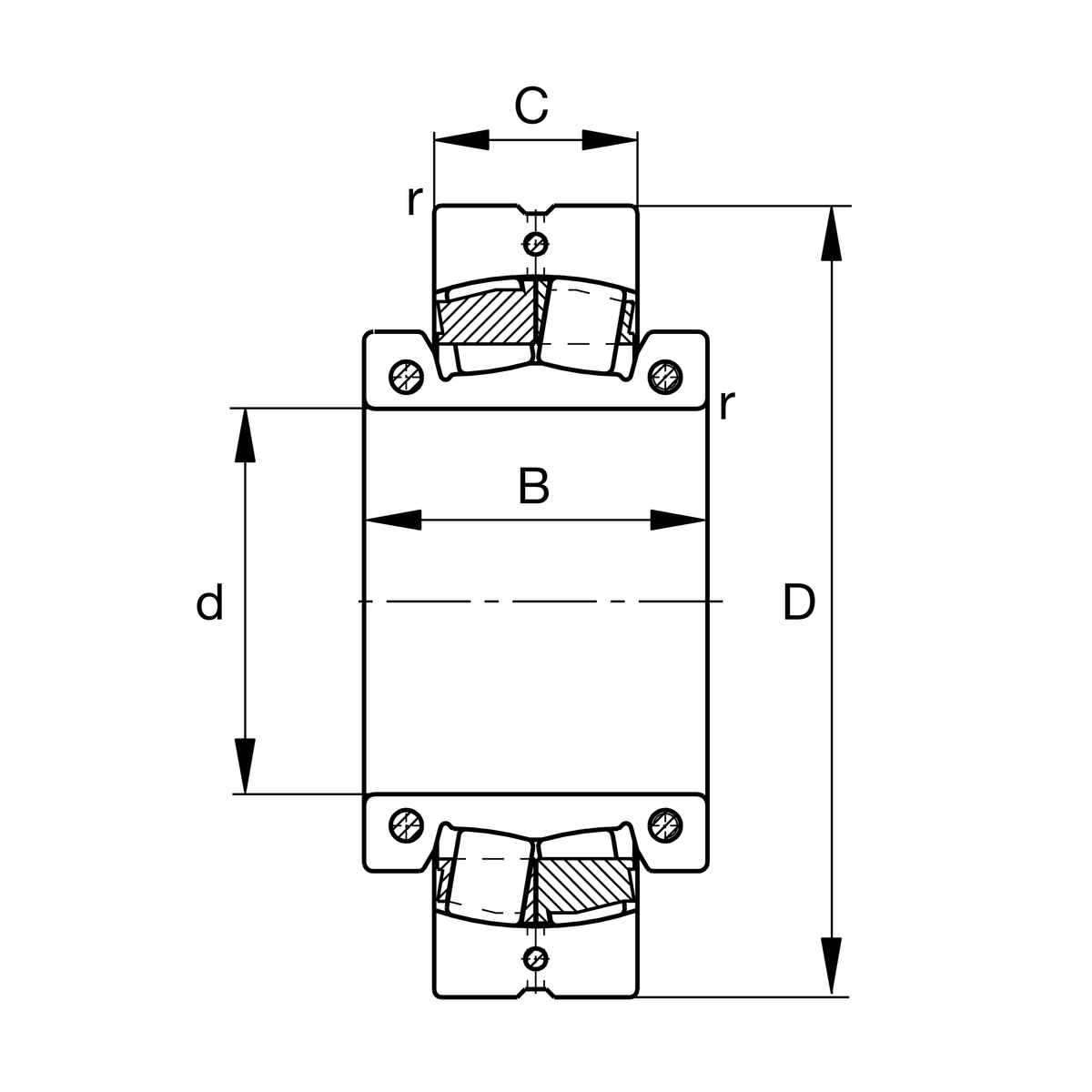

Main Dimensions & Performance Data
| d | 277.812 mm | Bore diameter |
| D | 500 mm | Outside diameter |
| C | 160 mm | Width, outer ring |
| Cr | 2,330,000 N | Basic dynamic load rating, radial |
| C0r | 3,900,000 N | Basic static load rating, radial |
| Cur | 270,000 N | Fatigue load limit, radial |
| nG | 485 1/min | Limiting speed |
| Fa max | 44,000 N | Maximum axial load |
| ≈m | 165 kg | Weight |
Mounting dimensions
| Mi | 190 Nm | Tightening torque clamping screw |
| Ma | 120 Nm | Tightening torque clamping screw |
Dimensions
| rmin | 5 mm | Minimum chamfer dimension |
| B | 218 mm | Width, inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.29 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2.32 | Dynamic axial load factor |
| Y2 | 3.45 | Dynamic axial load factor |
| Y0 | 2.26 | Static axial load factor |
Additional information
23160K | Bearing designation | |
H3160X1015 | Adapter sleeve |
Your current product variant
| Design | E1A | without central rip |
| Bore type | Z | Cylindrical |
| Cage | MA | Solid brass cage |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Relubrication feature | Standard | |
| Splitted | S. | Split bearing inch |
