TME50-XL-N
Flanged housing unit TME50-XL-N
Thêm vào yêu cầu báo giá

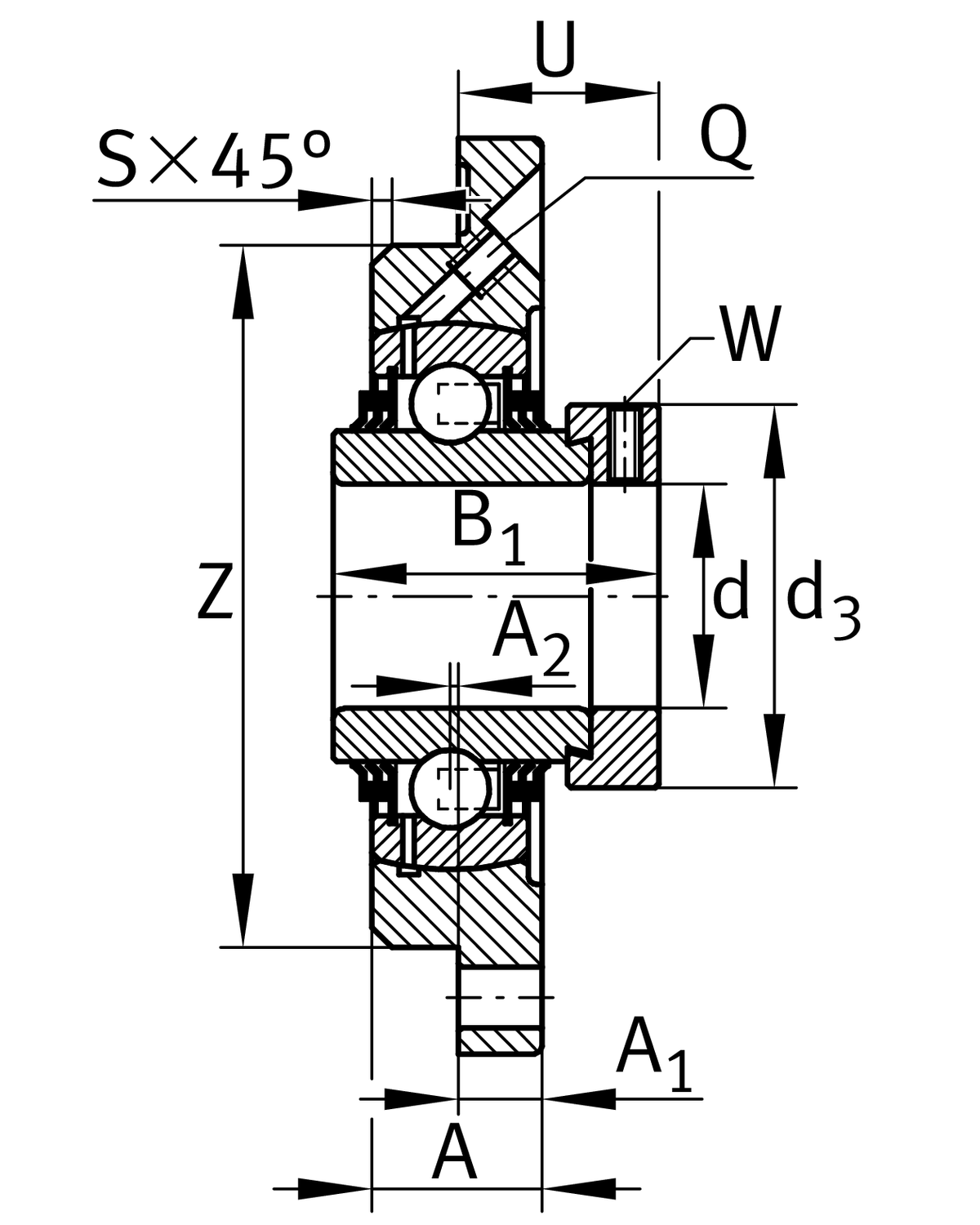

Main Dimensions & Performance Data
d
50 mm
Bore diameter
H
165 mm
Height flange
B1
62.8 mm
Locking collar total width
U
37.1 mm
Total height unit
Cr
35,000 N
Basic dynamic load rating, radial
C0r
23,200 N
Basic static load rating, radial
Cur
990 N
Fatigue load limit, radial
≈m
2.32 kg
Weight

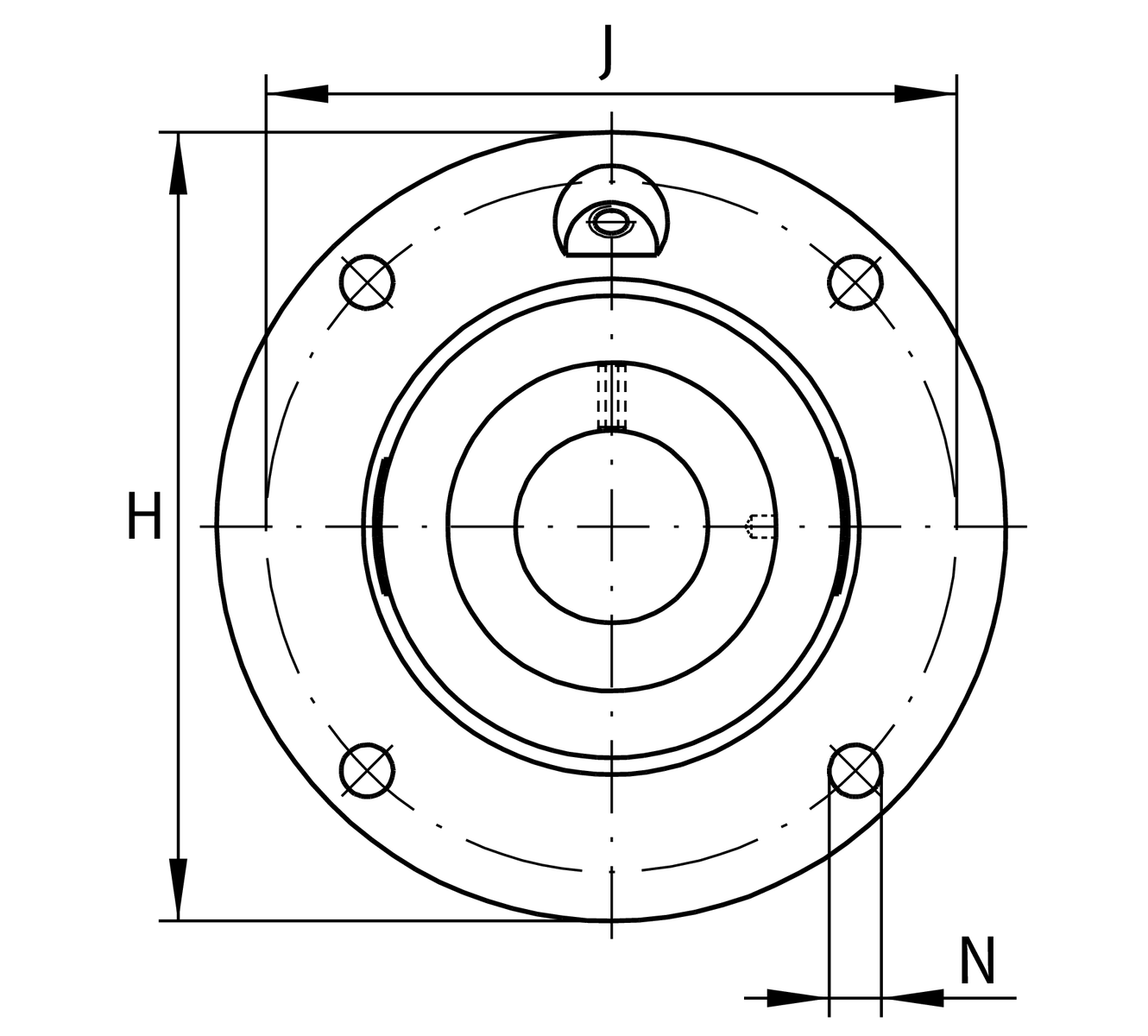

Mounting dimensions
J
135 mm
Pitch circle diameter (holes)
N
14 mm
Fixing bore
Z
110 mm
Diameter spigot
h8
Diameter spigot clearance
n
4
Number of screwing holes

Dimensions
A
25 mm
Height housing
A1
13 mm
Thickness of flange
A2
1 mm
Distance raceway
S
3 mm
Chamfer width
Q
M8X1
Connection thread for lubrication

Additional information
1
Number of housings
GG.ME10-N
Housing
GE50-XL-KTT-B
Bearing designation
KASK10
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
