Main Dimensions & Performance Data
| d | 240 mm | Bore diameter bearing |
| D | 370 mm | Outside diameter bearing |
| B | 190 mm | Width Inner ring |
| Cr | 3,870,000 N | Basic dynamic load rating, radial |
| C0r | 14,900,000 N | Basic static load rating, radial |
| ≈m | 64.5 kg | Weight |

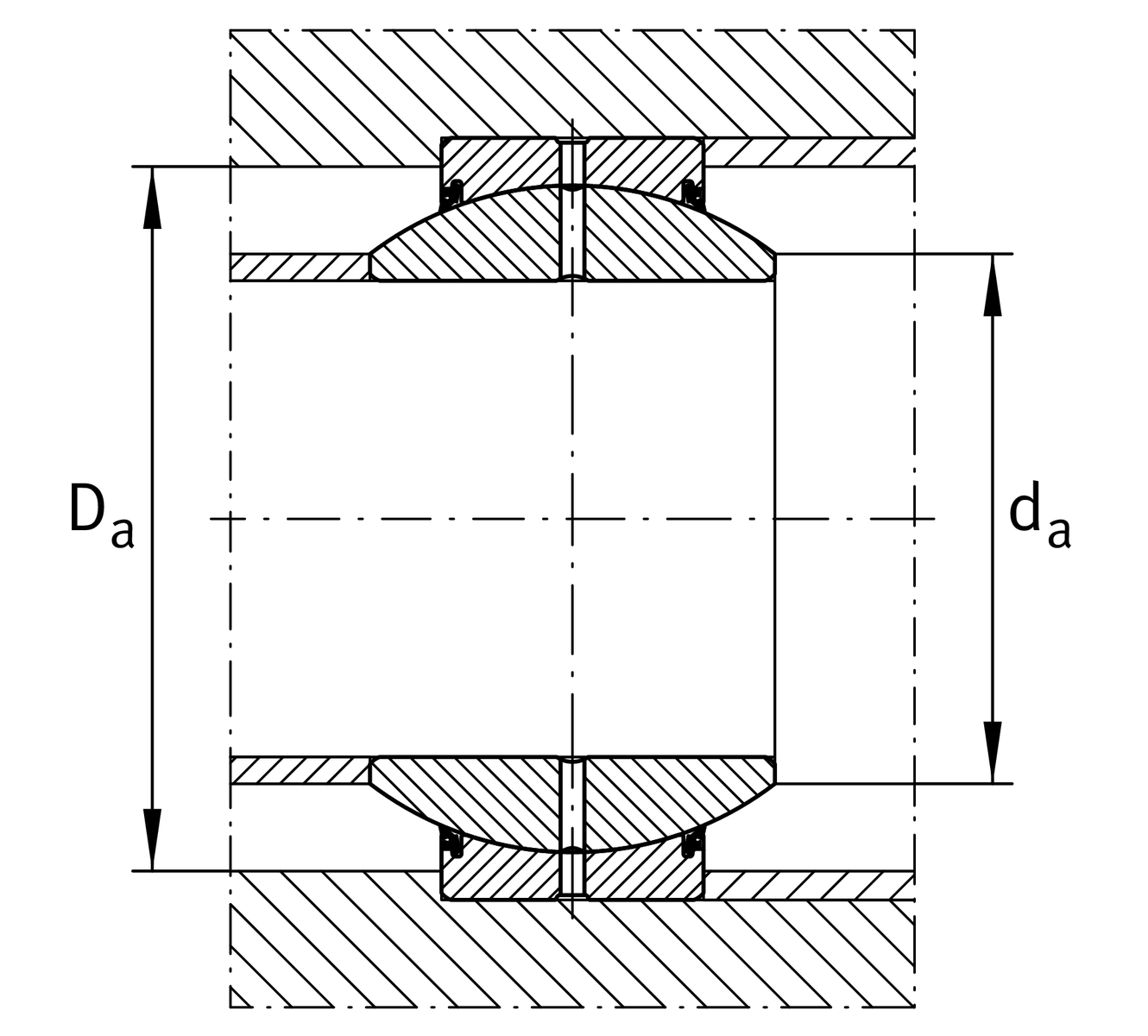

Mounting dimensions
| r1smin | 1.1 mm | Edge Spacing |
| r2smin | 1.1 mm | Edge Spacing |
| da max | 263.6 mm | Connection measure Inner ring |
| Da min | 319 mm | Housing Connection Diameter |

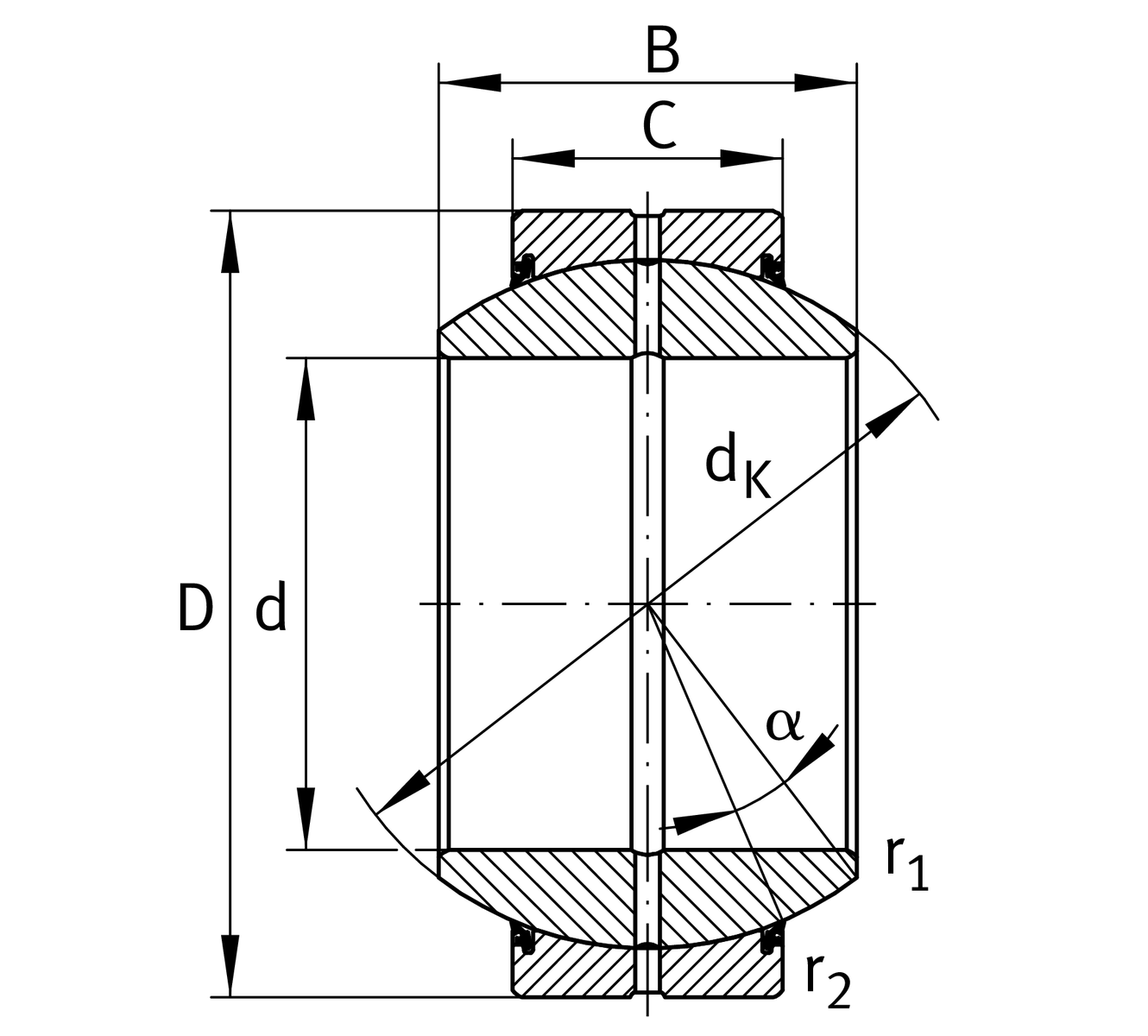

Dimensions
| C | 110 mm | Width Outer ring |
| dK | 325 mm | Ball diameter |
| α | 15 ° | Tilt angle |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0.03 mm | Bore diameter bearing, lower tolerance |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0.04 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| Gr | 0,125 - 0,239 | Radial Clearance |
| BUT | -0.35 mm | Width inner ring, lower tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -0.8 mm | Width outer ring, lower tolerance |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 130 °C | Operating temperature max. |
Your current product variant
| Sealing | 2RS | Lip seals on both sides |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
