FAG INA Schaeffler
FAG
UCF209-28
Flanged housing unit UCF209-28
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
44.45 mm
Bore diameter
L
137 mm
Flange width
U
52.2 mm
Total height unit
Cr
32,500 N
Basic dynamic load rating, radial
C0r
20,400 N
Basic static load rating, radial
Cur
870 N
Fatigue load limit, radial
≈m
2.297 kg
Weight

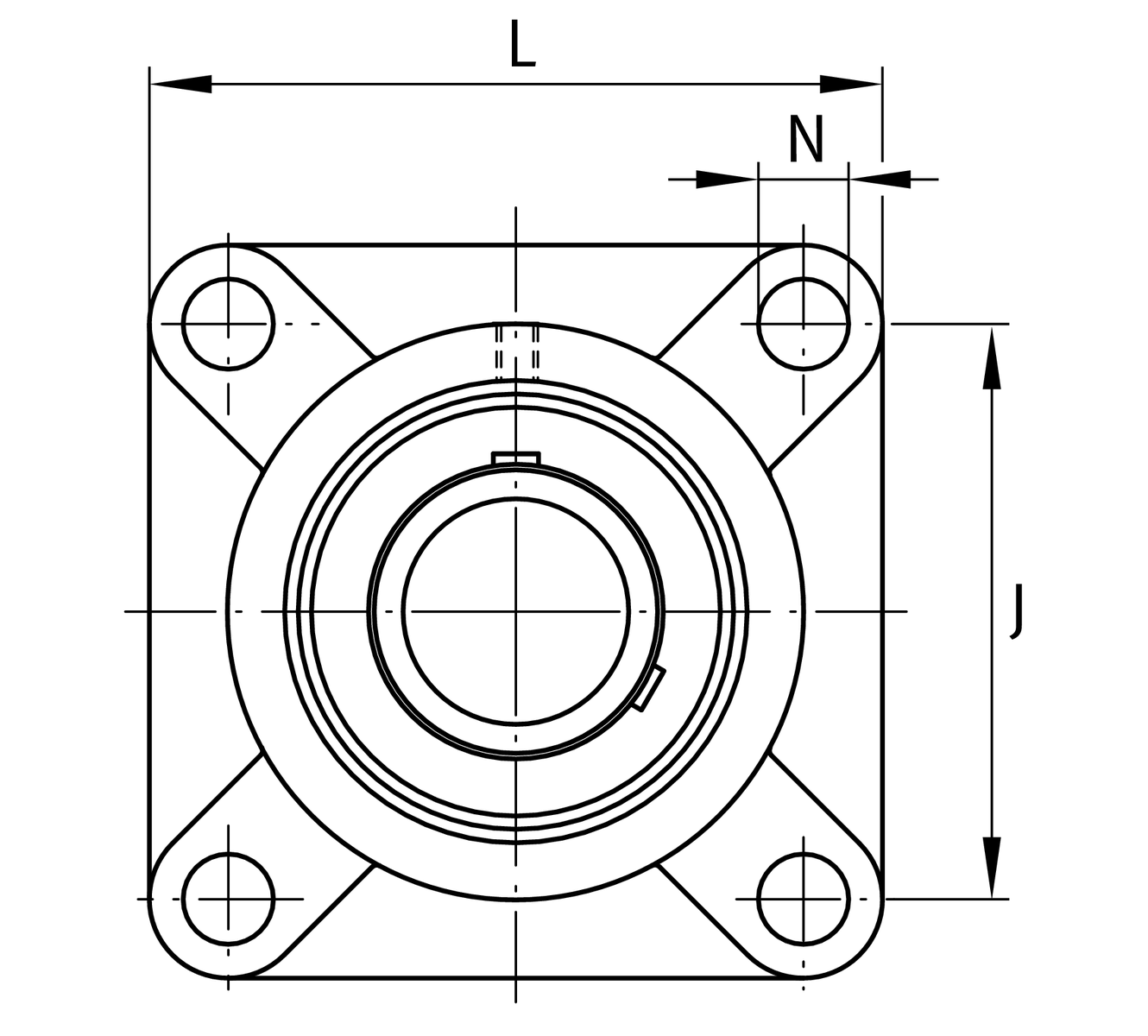

Mounting dimensions
J
105 mm
Distance fixing bore
N
16 mm
Fixing bore
N1
105 mm
Distance fixing bore
n
4
Number of screwing holes

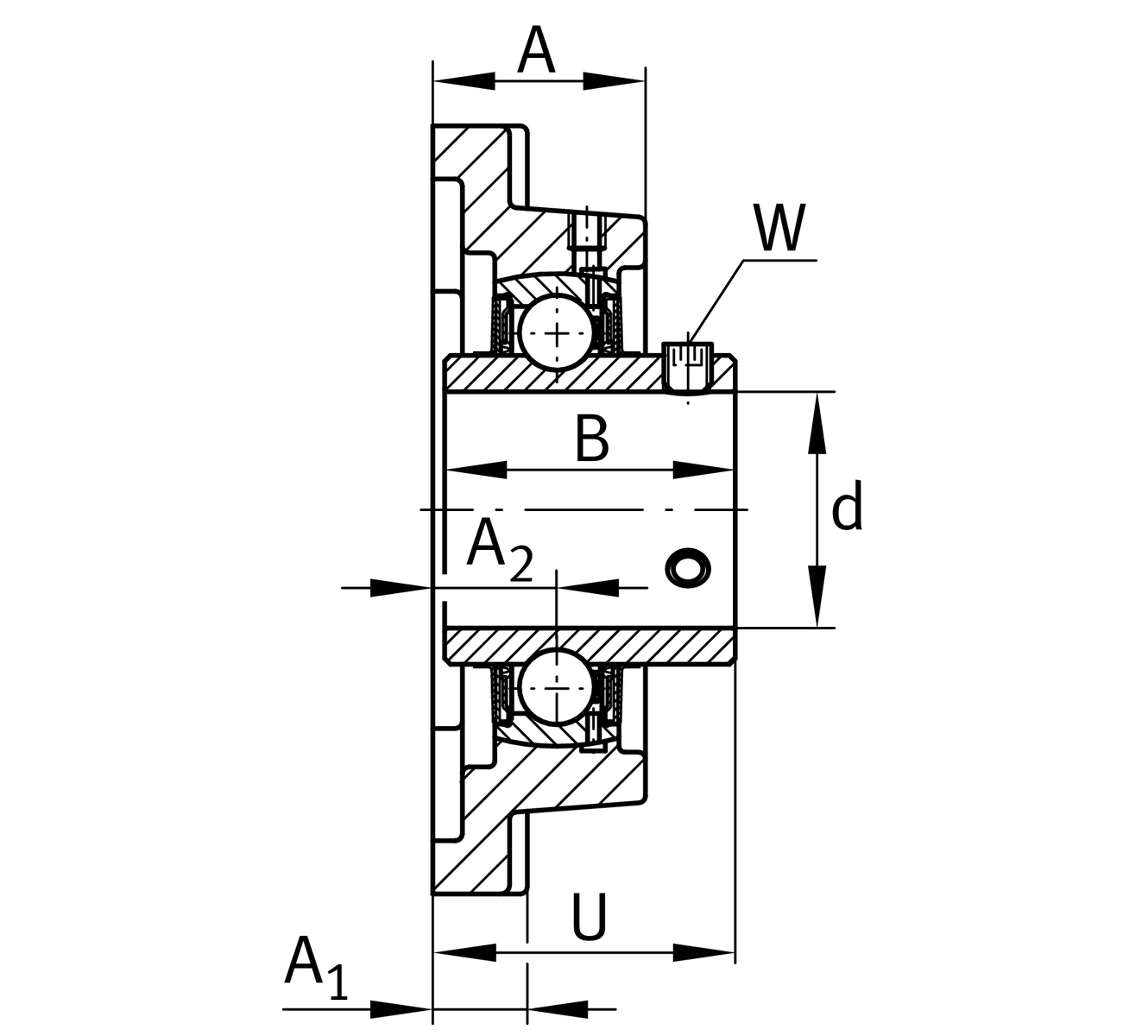

Dimensions
A
38 mm
Height housing
A1
18 mm
Thickness of flange
A2
22 mm
Distance raceway
B
49.2 mm
Width
Q
M6
Connection thread for lubrication

Additional information
1
Number of housings
F209
Housing
UC209-28
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
