Main Dimensions & Performance Data
| d | 260 mm | Bore diameter |
| D | 400 mm | Outside diameter |
| B | 104 mm | Width |
| Cr | 1,670,000 N | Basic dynamic load rating, radial |
| C0r | 2,600,000 N | Basic static load rating, radial |
| Cur | 239,000 N | Fatigue load limit, radial |
| nG | 1,850 1/min | Limiting speed |
| nϑr | 1,170 1/min | Reference speed |
| ≈m | 45.2 kg | Weight |
Mounting dimensions
| da min | 274.6 mm | Minimum diameter shaft shoulder |
| da max | 291 mm | Maximum diameter of shaft shoulder |
| Da max | 385.4 mm | Maximum diameter of housing shoulder |
| ra max | 3 mm | Maximum recess radius |
| db min | 272 mm | Minimum cavity diameter of the sleeve |
| Ba min | 13 mm | Minimum cavity width of the sleeve |

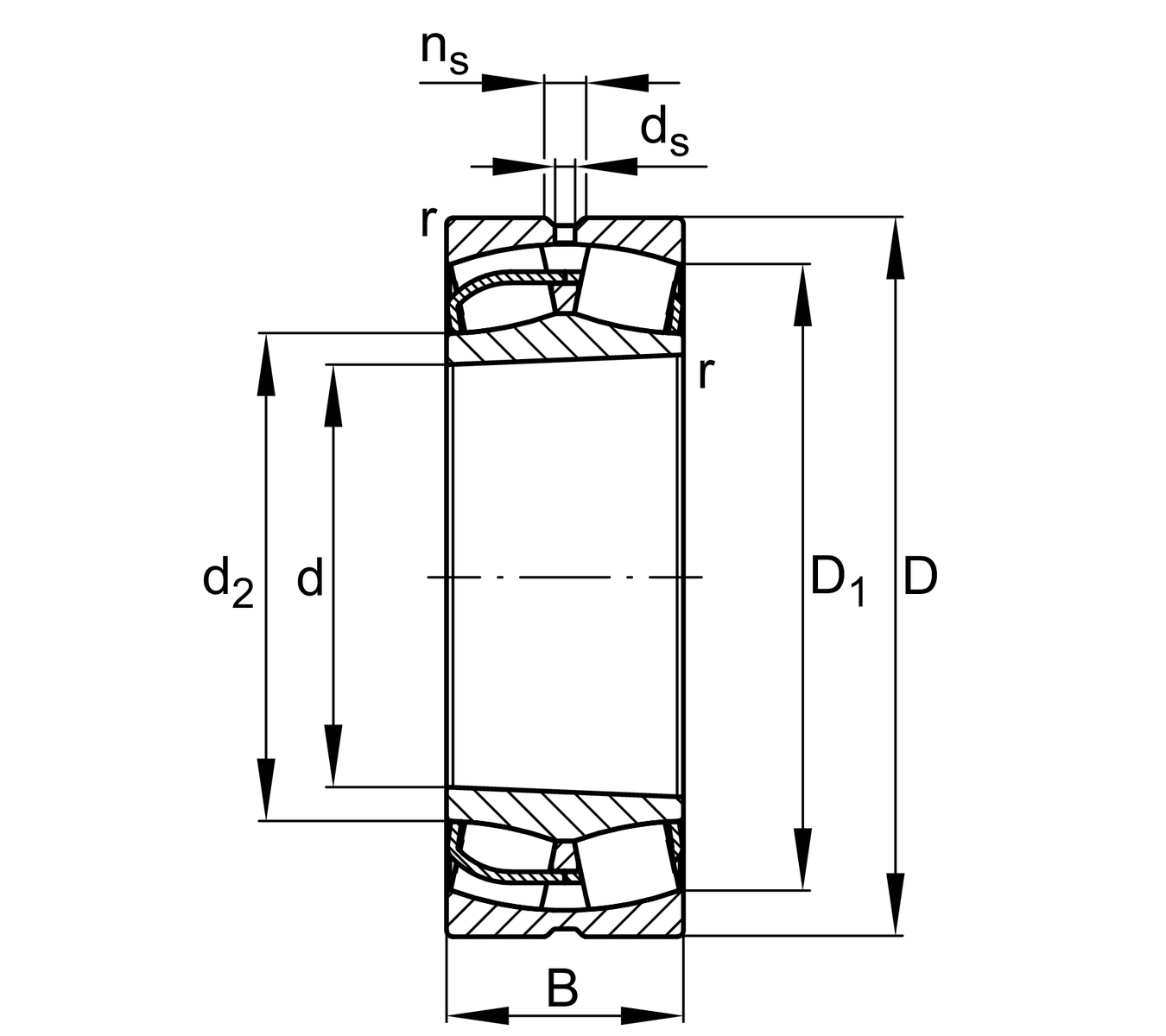

Dimensions
| rmin | 4 mm | Minimum chamfer dimension |
| D1 | 358.7 mm | Bore diameter outer ring |
| d2 | 295.5 mm | Raceway diameter of the inner ring |
| ds | 9.5 mm | Diameter lubrication hole |
| ns | 17.7 mm | Width of lubricating groove |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.23 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2.9 | Dynamic axial load factor |
| Y2 | 4.31 | Dynamic axial load factor |
| Y0 | 2.83 | Static axial load factor |
Additional information
H3052X | Adapter sleeve | |
AH3052 | Withdrawal sleeve |
Your current product variant
| Design | BE | with lose center lip ring |
| Bore type | K | Tapered, taper 1:12 |
| Cage | JPB | Sheet metal cage |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Relubrication feature | Standard |
