SX0118/500-VSP
Crossed roller bearing SX0118/500-VSP
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
500 mm
Bore Diameter
0.008 mm
Bore diameter upper tolerance
-0.032 mm
Bore diameter lower tolerance
Da
620 mm
Outside Diameter
0 mm
Outside diameter upper tolerance
-0.044 mm
Outside diameter lower tolerance
H
56 mm
Height of the assembled bearing
hi
56 mm
heigth inner ring
0.16 mm
Width upper tolerance
-0.16 mm
Width lower tolerance
≈m
42.7 kg
Weight

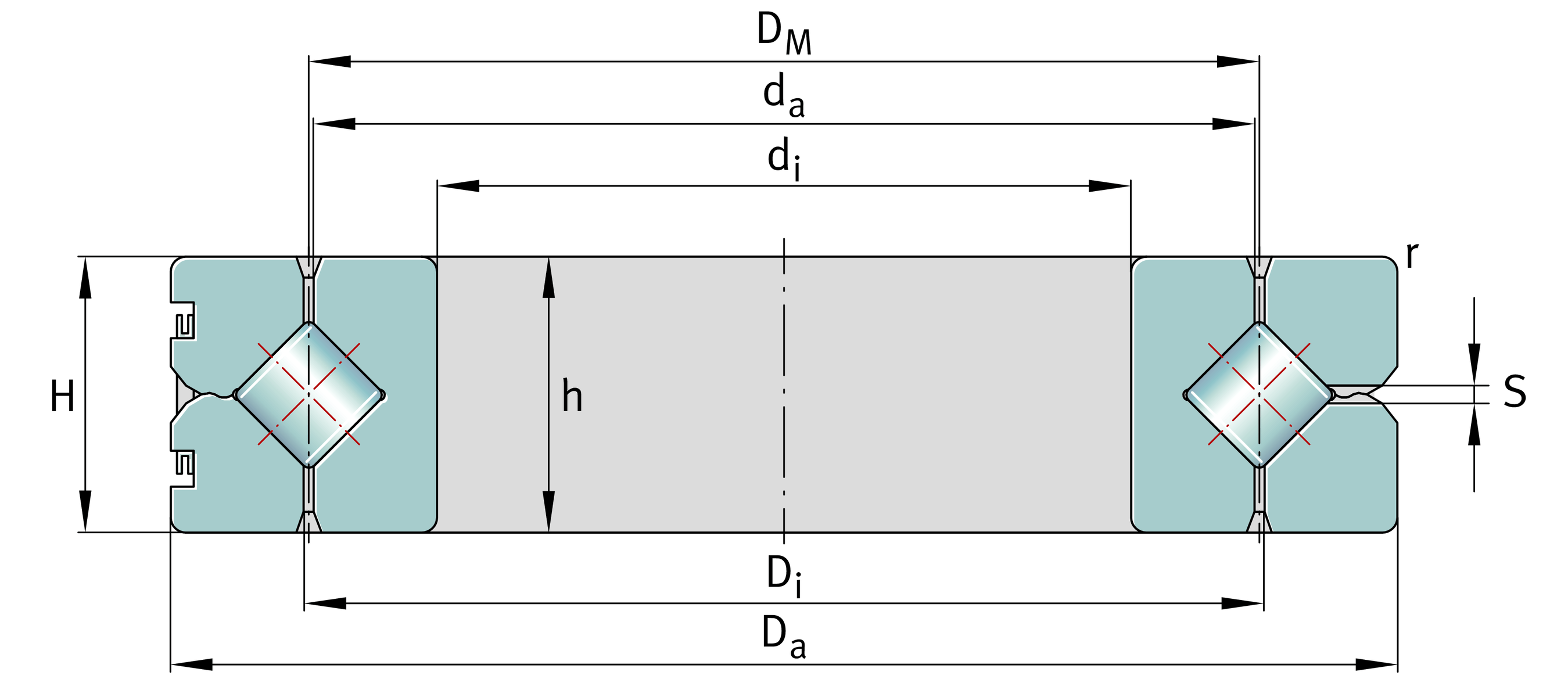

Dimensions
Di
561.2 mm
Inner diameter outer ring
DM
560 mm
rolling element pitch circle diameter
da
558.8 mm
outer diameter inner ring
h
56 mm
height of individual ring
0 mm
Height of individual ring upper tolerance
-0.05 mm
Height of individual ring lower tolerance
rmin
3 mm
chamfer dimension
S
2.5 mm
diameter of lubrication hole

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
80 °C
Operating temperature max.

Calculation factors
0.04 mm
Running accuracy, radial
0.01 mm
Running accuracy, axial
VSPmin
0.005 mm
Minimum bearing preload
VSPmax
0.03 mm
Maximum bearing preload
Ca
550,000 N
Basic dynamic load rating, axial
C0a
2,470,000 N
Basic static load rating, axial
Cr
390,000 N
Basic dynamic load rating, radial (for radial load only)
C0r
1,210,000 N
Basic static load rating, radial (for radial load only)
NG oil
135 1/min
Limiting speed for oil lubrication with preload
NG Grease
65 1/min
Limiting speed for grease lubrication with preload
618/500
Dimensions identical to ISO dimension series 18

Your current product variant
PreloadVSPBearing preload Standard
