VLI201094-N-VSP
Slewing ring, Four Point contact bearing, internal gear teeth VLI201094-N-VSP
Thêm vào yêu cầu báo giá

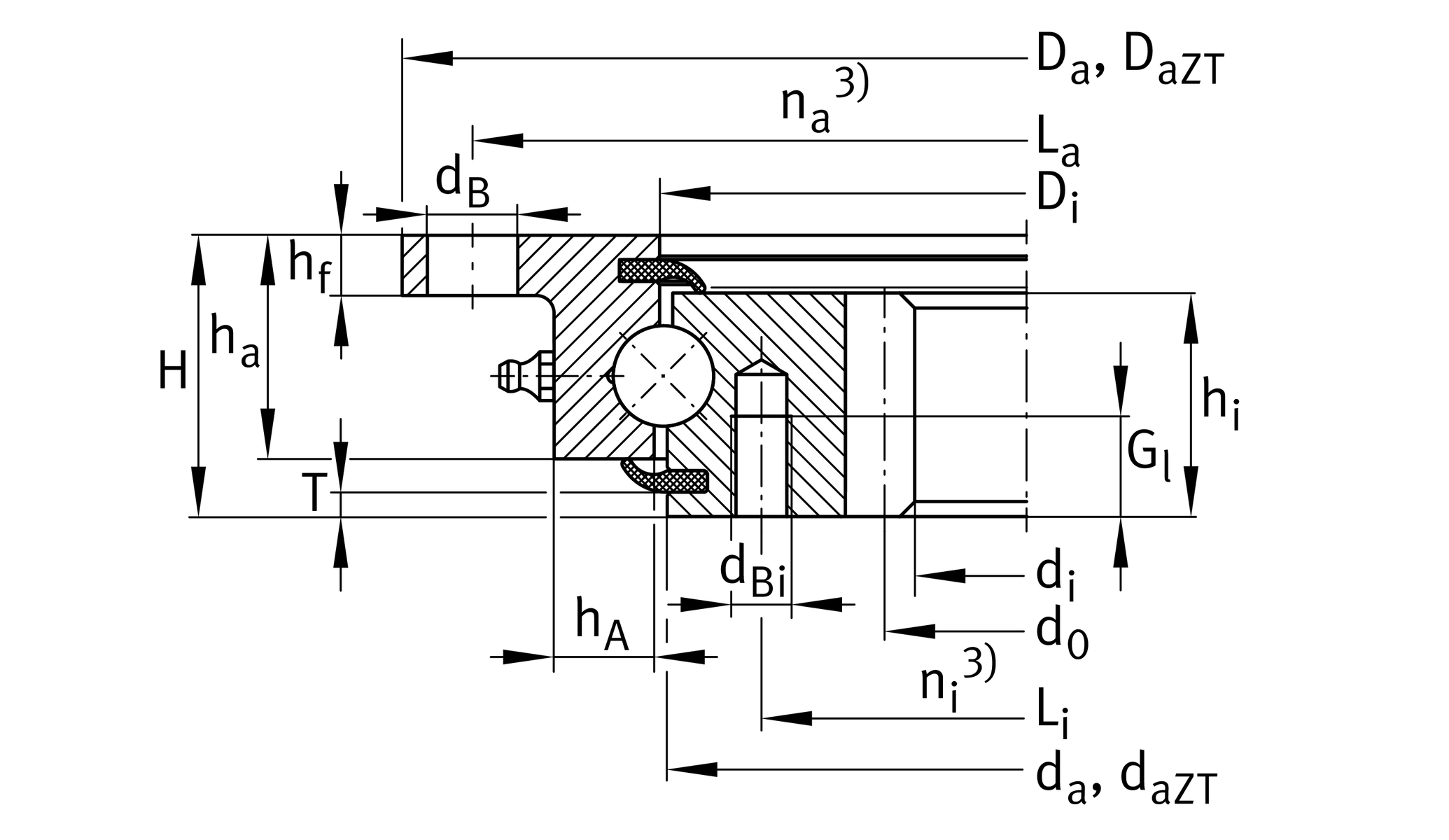

Main Dimensions & Performance Data
d1
984 mm
Bore Diameter
H
56 mm
Height
Da
1,198 mm
Outside Diameter
-0.7 mm
Outside diameter lower tolerance
0 mm
Outside diameter upper tolerance
-IT8
Diameter centring outer ring tolerance
hf
12 mm
height of flange
ha
44.5 mm
Width outer ring
hi
44.5 mm
Width inner ring
≈m
81.55 kg
Weight

Dimensions
Di
1,095.5 mm
Inner diameter outer ring
0.7 mm
Inner diameter outer ring upper tolerance
0 mm
Inner diameter outer ring lower tolerance
La
1,170 mm
Pitchcircle diameter fixing holes outer ring
na
16
Number of fixing holes in outer ring
dB
18 mm
Fixing bore
da
1,092.5 mm
Outside diameter inner ring
0 mm
Outside diameter inner ring upper tolerance
-0.7 mm
Outside diameter inner ring lower tolerance
Li
1,055 mm
Pitchcircle diameter fixing holes inner ring
dBi
M12
Tread fixing bore
Gl
20 mm
Thread depth fixing hole
ni
24
Number of fixing holes in inner ring
Fr zul
99,100 N
Max. radial load fixing screws (friction locking)
m
8 mm
Modul of gearing
z
125
Number of teeth
d0
1,000 mm
Pitch circle diameter gearing
hA
20 mm
Ring cross section
Fz norm
31,400 N
Max. tooth force root fatigue strenght (at a shock factor of 1,2)
Fz max
46,700 N
Max. tooth force against tooth fracture (at a shock factor of 1,35)

Temperature range
Tmin
-25 °C
Operating temperature min.
Tmax
80 °C
Operating temperature max.

Calculation factors
Ca
198,000 N
Basic dynamic load rating, axial
C0a
780,000 N
Basic static load rating, axial
Cr
179,000 N
Basic dynamic load rating, radial
C0r
290,000 N
Basic static load rating, radial
