VLI200944-N-ZT
Slewing ring, Four Point contact bearing, internal gear teeth VLI200944-N-ZT
Thêm vào yêu cầu báo giá

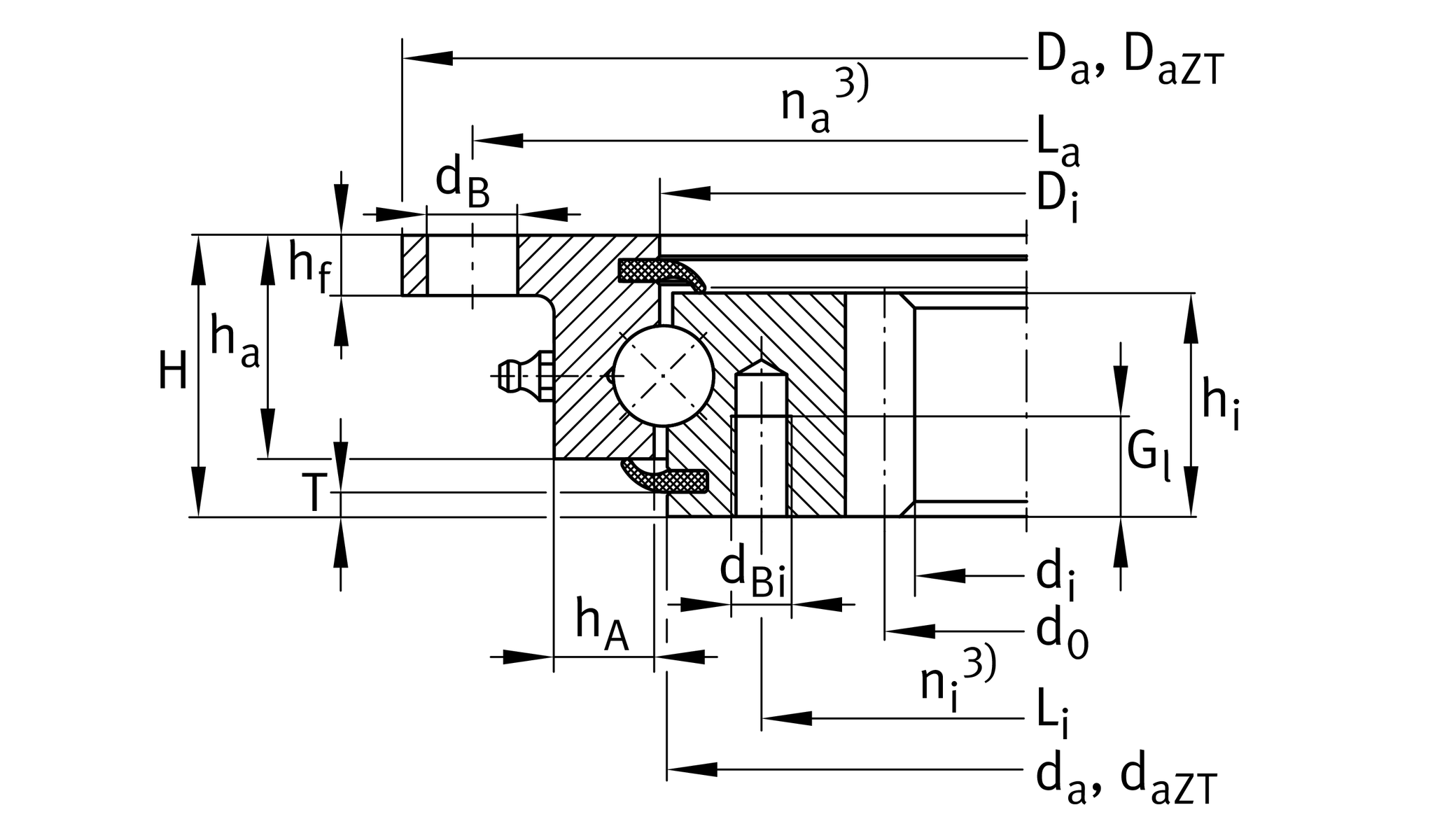

Main Dimensions & Performance Data
d1
840 mm
Bore Diameter
daZT
941 mm
Diameter centring inner ring
-IT8
Diameter centring inner ring tolerance
T
4.4 mm
Length centering inner ring
H
56 mm
Height
Da ZT
1,046 mm
Diameter centring outer ring
-IT8
Diameter centring outer ring tolerance
hf
12 mm
height of flange
ha
44.5 mm
Width outer ring
hi
44.5 mm
Width inner ring
≈m
67.5 kg
Weight

Dimensions
Di
945.5 mm
Inner diameter outer ring
0.7 mm
Inner diameter outer ring upper tolerance
0 mm
Inner diameter outer ring lower tolerance
La
1,020 mm
Pitchcircle diameter fixing holes outer ring
na
16
Number of fixing holes in outer ring
dB
18 mm
Fixing bore
da
942.5 mm
Outside diameter inner ring
0 mm
Outside diameter inner ring upper tolerance
-0.7 mm
Outside diameter inner ring lower tolerance
Li
905 mm
Pitchcircle diameter fixing holes inner ring
dBi
M12
Tread fixing bore
Gl
20 mm
Thread depth fixing hole
ni
22
Number of fixing holes in inner ring
Fr zul
122,000 N
Max. radial load fixing screws (friction locking)
m
8 mm
Modul of gearing
z
107
Number of teeth
d0
856 mm
Pitch circle diameter gearing
hA
20 mm
Ring cross section
Fz norm
31,400 N
Max. tooth force root fatigue strenght (at a shock factor of 1,2)
Fz max
46,700 N
Max. tooth force against tooth fracture (at a shock factor of 1,35)

Temperature range
Tmin
-25 °C
Operating temperature min.
Tmax
80 °C
Operating temperature max.

Calculation factors
Ca
188,000 N
Basic dynamic load rating, axial
C0a
670,000 N
Basic static load rating, axial
Cr
170,000 N
Basic dynamic load rating, radial
C0r
250,000 N
Basic static load rating, radial

Your current product variant
CenteringZTCentering on inner and outer ring
GearingNNormalized gear teeth on bearing ring
Radial internal clearanceStandard_VLStandard radial clearance 0 to 0,5 and axial tilting clearance 0 to 0,7
