Main Dimensions & Performance Data
| d | 460 mm | Bore diameter |
| D | 760 mm | Outside diameter |
| B | 240 mm | Width |
| Cr | 6,900,000 N | Basic dynamic load rating, radial |
| C0r | 11,500,000 N | Basic static load rating, radial |
| Cur | 760,000 N | Fatigue load limit, radial |
| nG | 770 1/min | Limiting speed |
| nϑr | 395 1/min | Reference speed |
| ≈m | 420 kg | Weight |

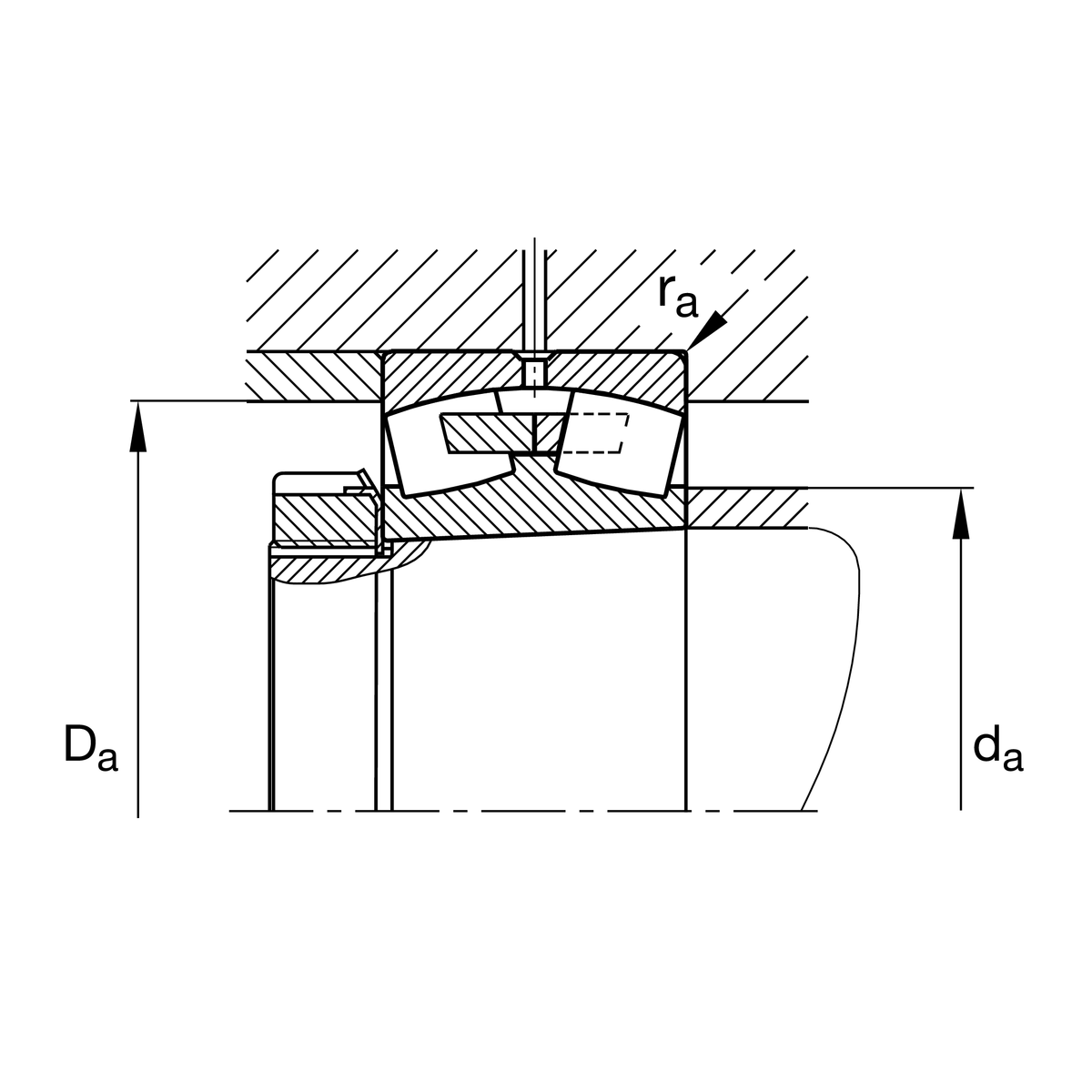

Mounting dimensions
| da min | 492 mm | Minimum diameter shaft shoulder |
| Da max | 728 mm | Maximum diameter of housing shoulder |
| ra max | 6 mm | Maximum recess radius |
| da max | 533 mm | Maximum diameter of shaft shoulder |
| db min | 484 mm | Minimum cavity diameter of the sleeve |
| Ba min | 17 mm | Minimum cavity width of the sleeve |
Dimensions
| rmin | 7.5 mm | Minimum chamfer dimension |
| D1 | 663.4 mm | Bore diameter outer ring |
| ds | 12.5 mm | Diameter lubrication hole |
| ns | 23.5 mm | Width of lubricating groove |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.31 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2.21 | Dynamic axial load factor |
| Y2 | 3.29 | Dynamic axial load factor |
| Y0 | 2.16 | Static axial load factor |
Additional information
H3192-HG | Adapter sleeve | |
AHX3192G-H | Withdrawal sleeve |
Your current product variant
| Design | BEA | with lose center lip ring |
| Bore type | K | Tapered, taper 1:12 |
| Cage | MB1 | Solid brass cage |
| Relubrication feature | Standard |
