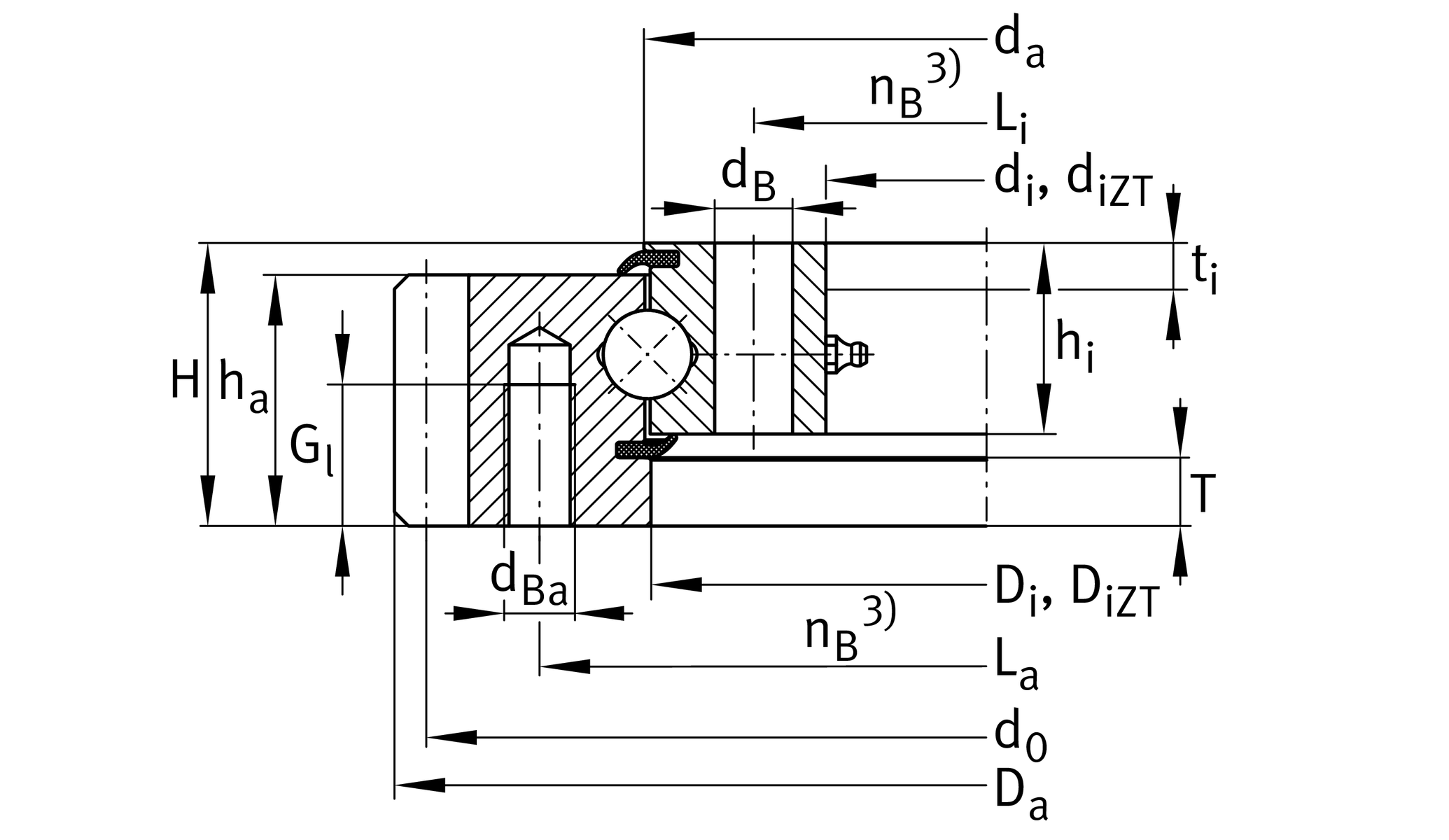

Main Dimensions & Performance Data
| di | 655 mm | Bore Diameter |
| H | 80 mm | Height |
| Da | 898 mm | Outside Diameter |
| ha | 71 mm | Width outer ring |
| hi | 54 mm | height of inner ring |
0.03 mm | Normal radial clearance min. | |
0.13 mm | Normal radial clearance max. | |
0.05 mm | Normal axial clearance min. | |
0.24 mm | Normal axial clearance max. | |
| ≈m | 127.1 kg | Weight |
Dimensions
| Di | 753 mm | Inner diameter outer ring |
| da | 757 mm | Outside diameter inner ring |
| ni | 24 | Number of fixing holes in inner ring |
| Li | 695 mm | Pitchcircle diameter fixing holes inner ring |
| dB | 22 mm | Fixing bore |
| na | 24 | Number of fixing holes in outer ring |
| La | 816 mm | Pitchcircle diameter fixing holes outer ring |
| dBa | M20 | Tread fixing bore |
| Gl | 40 mm | Thread depth fixing hole |
| Fr zul | 290,400 N | Max. radial load fixing screws (friction locking) |
| d0 | 882 mm | Pitch circle diameter gearing |
| m | 9 mm | Modul of gearing |
| z | 98 | Number of teeth |
| Fz norm | 55,100 N | Max. tooth force root fatigue strenght (at a shock factor of 1,2) |
| Fz max | 80,200 N | Max. tooth force against tooth fracture (at a shock factor of 1,35) |
Temperature range
| Tmin | -25 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
Calculation factors
| Ca | 395,000 N | Basic dynamic load rating, axial |
| C0a | 2,700,000 N | Basic static load rating, axial |
| Cr | 360,000 N | Basic dynamic load rating, radial |
| C0r | 1,230,000 N | Basic static load rating, radial |
Your current product variant
| Gearing | N | Normalized gear teeth on bearing ring |
