INA
VLA200744-N
Slewing ring, four Point contact bearings, external gear VLA200744-N
Thêm vào yêu cầu báo giá

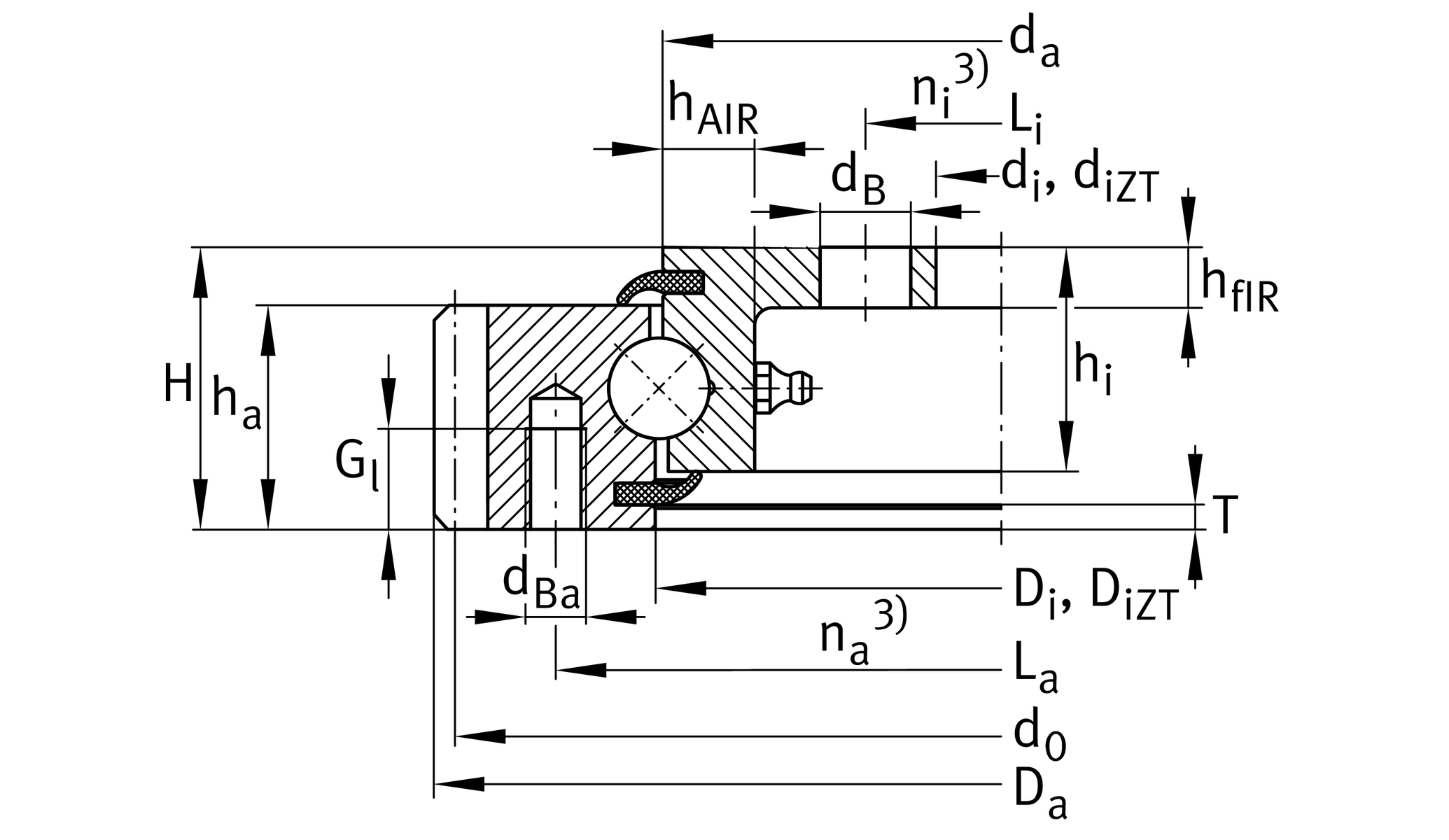

Main Dimensions & Performance Data
di
634 mm
Bore Diameter
0.6 mm
Bore diameter upper tolerance
0 mm
Bore diameter lower tolerance
hf IR
12 mm
height of flange
H
56 mm
Height
Da
838.1 mm
Outside Diameter
t
12 mm
Length centering inner ring
ha
44.5 mm
Width outer ring
hi
44.5 mm
height of inner ring
≈m
54.5 kg
Weight

Dimensions
Di
745.5 mm
Inner diameter outer ring
0.6 mm
Inner diameter outer ring upper tolerance
0 mm
Inner diameter outer ring lower tolerance
da
742.5 mm
Outside diameter inner ring
0 mm
Outside diameter inner ring upper tolerance
-0.6 mm
Outside diameter inner ring lower tolerance
ni
16
Number of fixing holes in inner ring
Li
662 mm
Pitchcircle diameter fixing holes inner ring
dB
18 mm
Fixing bore
na
18
Number of fixing holes in outer ring
La
785 mm
Pitchcircle diameter fixing holes outer ring
dBa
M12
Tread fixing bore
Gl
20 mm
Thread depth fixing hole
hAIR
20 mm
Ring cross section
Fr zul
74,300 N
Max. radial load fixing screws (friction locking)
d0
828 mm
Pitch circle diameter gearing
m
6 mm
Modul of gearing
z
138
Number of teeth
Fz norm
21,300 N
Max. tooth force root fatigue strenght (at a shock factor of 1,2)
Fz max
31,500 N
Max. tooth force against tooth fracture (at a shock factor of 1,35)

Temperature range
Tmin
-25 °C
Operating temperature min.
Tmax
80 °C
Operating temperature max.

Calculation factors
Ca
171,000 N
Basic dynamic load rating, axial
C0a
530,000 N
Basic static load rating, axial
Cr
155,000 N
Basic dynamic load rating, radial
C0r
197,000 N
Basic static load rating, radial

Your current product variant
GearingNNormalized gear teeth on bearing ring
Radial internal clearanceStandard_VLStandard radial clearance 0 to 0,5 and axial tilting clearance 0 to 0,7
