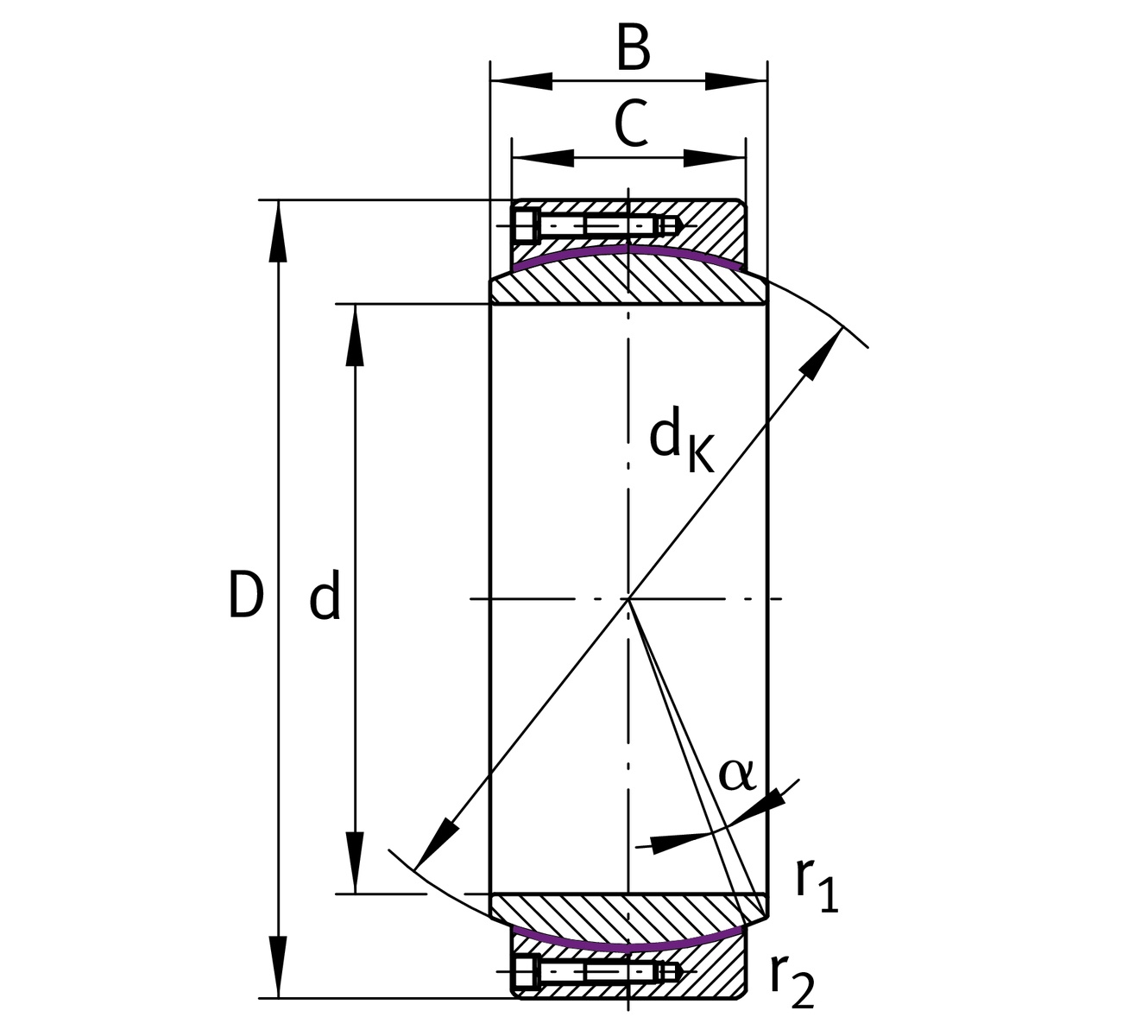

Main Dimensions & Performance Data
| d | 630 mm | Bore diameter bearing |
| D | 850 mm | Outside diameter bearing |
| B | 300 mm | Width Inner ring |
| C | 260 mm | Width Outer ring |
| Cr | 57,700,000 N | Basic dynamic load rating, radial |
| C0r | 96,200,000 N | Basic static load rating, radial |
| ≈m | 532.8 kg | Weight |

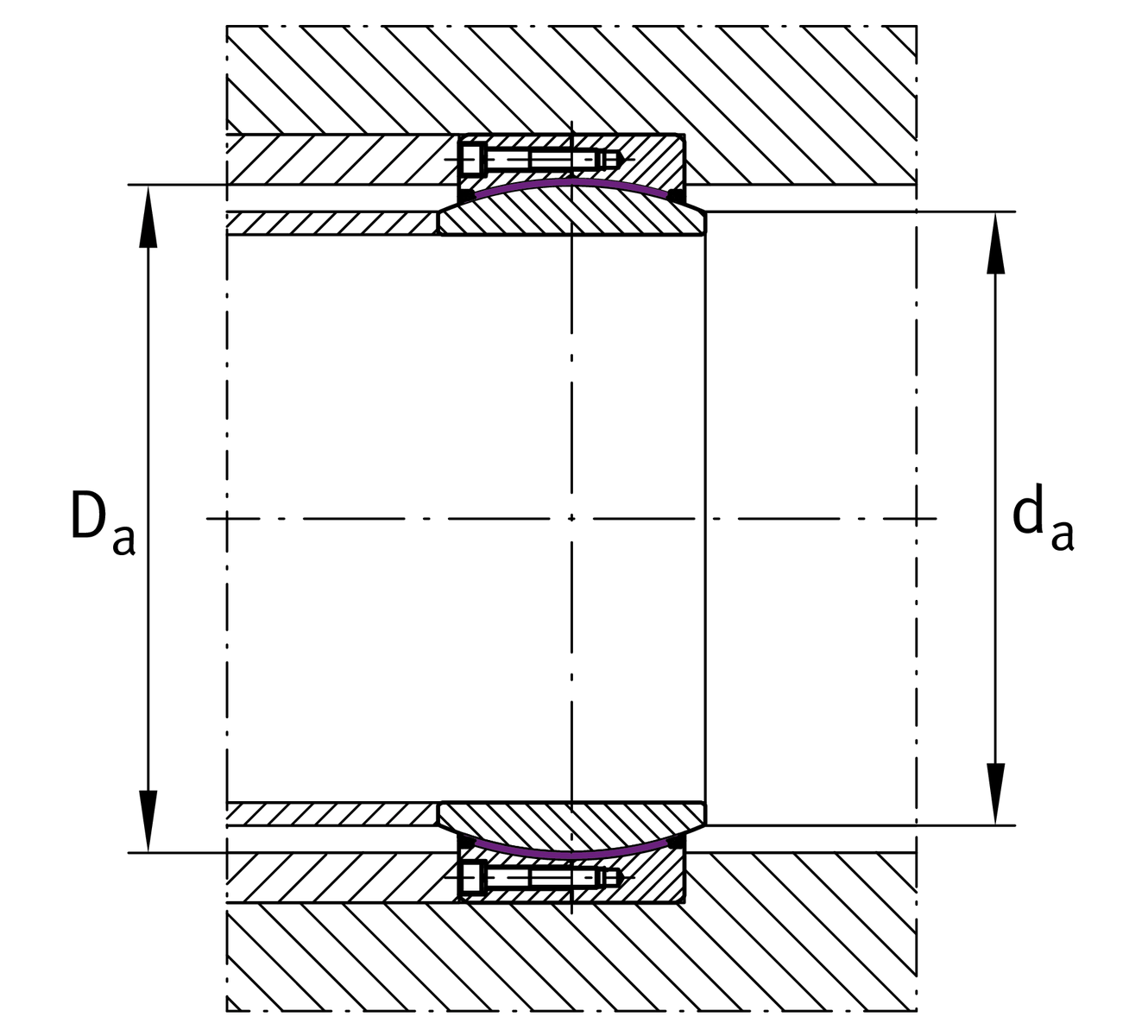

Mounting dimensions
| r1smin | 3 mm | Edge Spacing |
| r2smin | 6 mm | Edge Spacing |
| Da min | 698 mm | Housing Connection Diameter |
| damax | 676.5 mm | Connection measurement, inner ring |
Dimensions
| dK | 740 mm | Ball diameter |
| α | 3.3 ° | Tilt angle |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0.1 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| dUT | -0.05 mm | Bore diameter bearing, lower tolerance |
| BUT | -0.5 mm | Width inner ring, lower tolerance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -1.2 mm | Width outer ring, lower tolerance |
| Gr | 0 - 0,16 | Radial Clearance |
| Grmax | 0.16 mm | Radial clearance, maximum |
| Grmin | 0 mm | Radial clearance, minimum |
Temperature range
| Tmin | -50 °C | Operating temperature min. |
| Tmax | 150 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | |
| Bore lining | Without | |
| Coating | Without | |
| Material | Steel | Steel |
| Fabric | ELGOGLIDE | ELGOGLIDE |
