SRMH01-WH

Measuring instrument rpm SRMH01-WH

Thêm vào yêu cầu báo giá

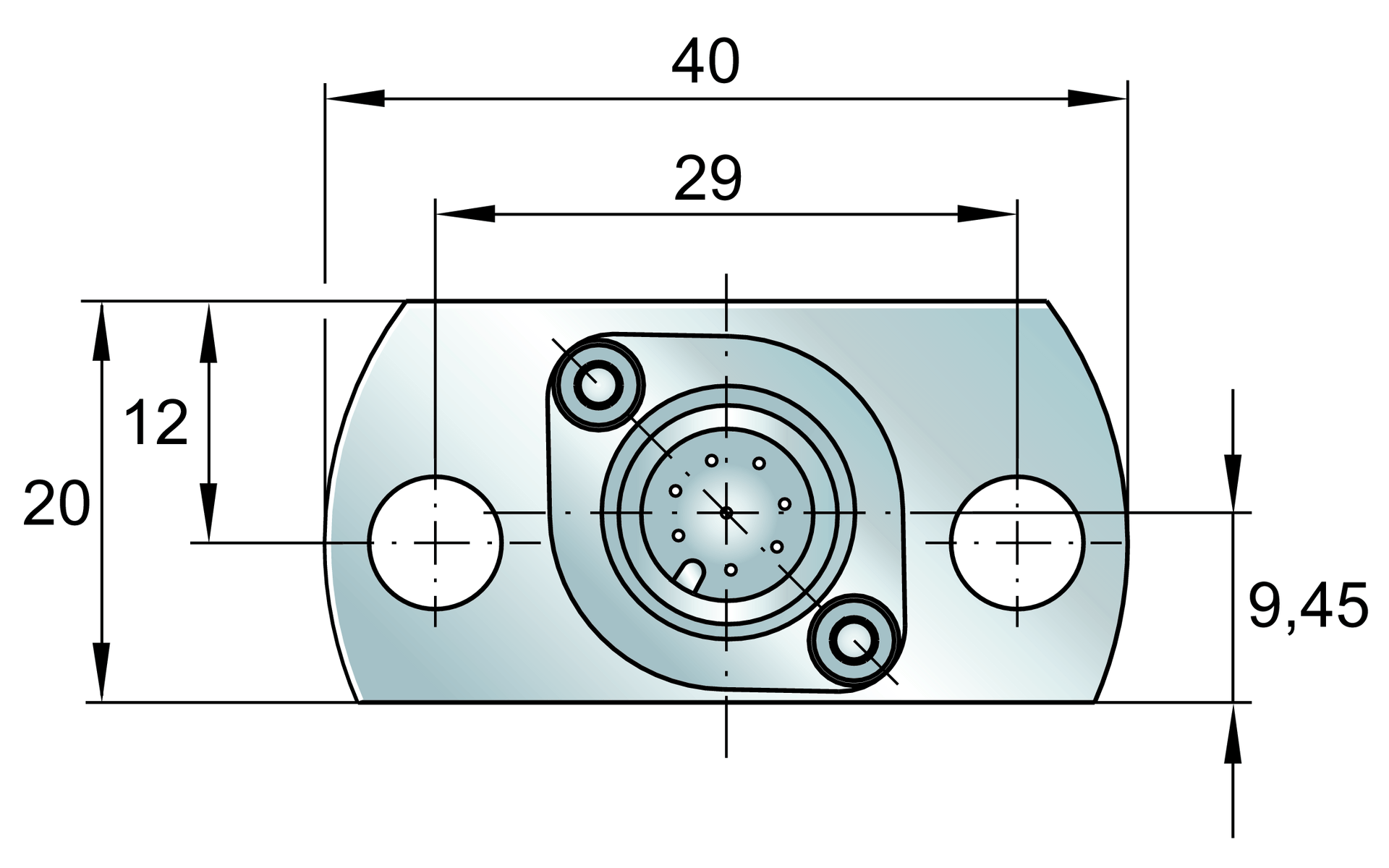

Mounting dimensions

	6.6 mm	Bore diameter sensor SRMH
	29 mm	Bore pitch width sensor SRMH
≈m	38 g	Weight

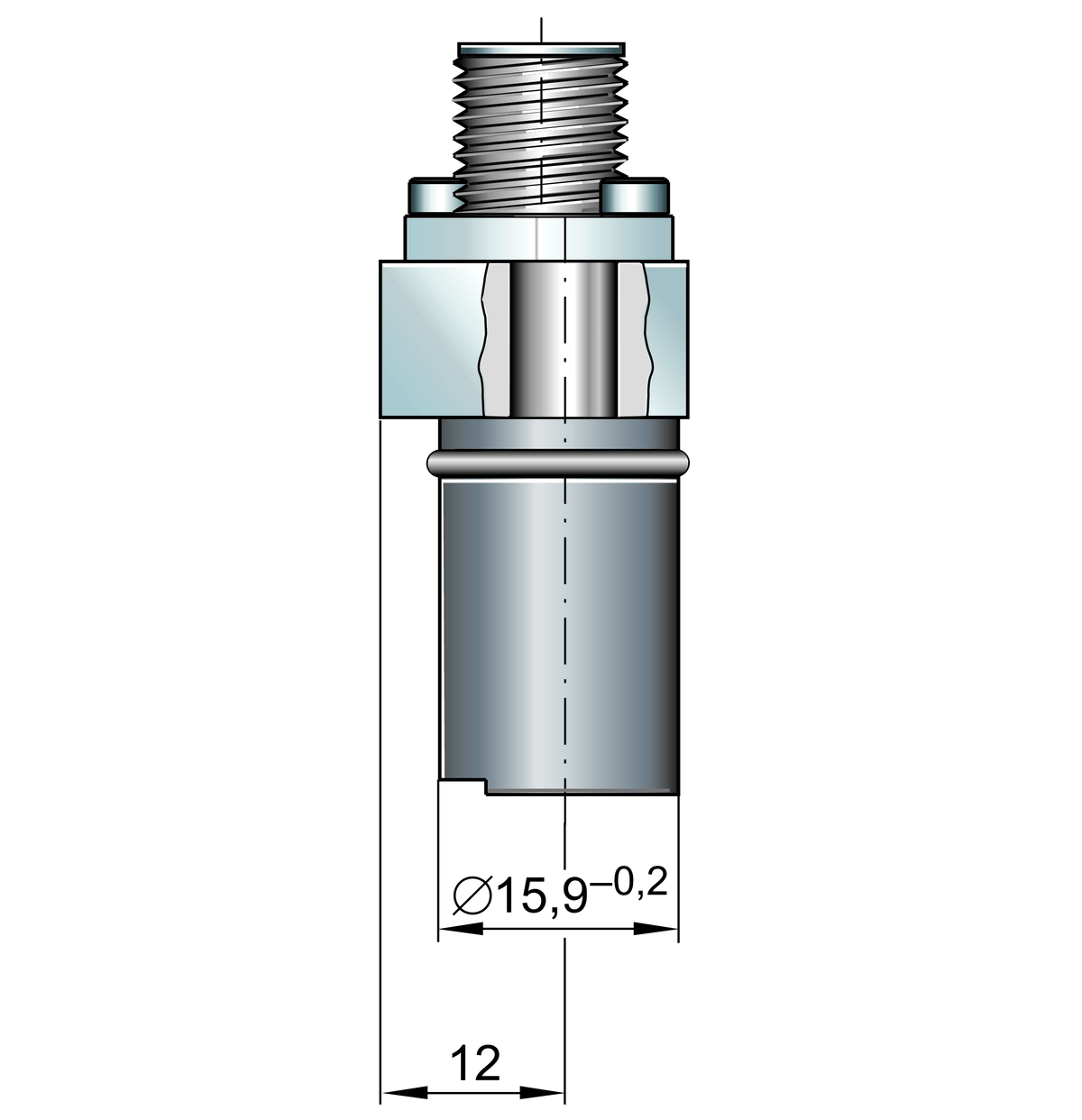

Main dimensions

	48.5 mm	Length SRMH total
	35 mm	Length SRMH excluding plugs
	25 mm	Length SRMH cylindrical housing
	15.9 mm	Diameter sensor housing SRMH
	40 mm	Flange length sensor SRMH
	20 mm	Flange width sensor SRMH

Temperature range

	70 °C	Operating temperature max
	IP67	Ingress protection
	0 °C	Operating temperature min

Additional information

	white	Colour
	ISO4762 M6x20-8.8	Cylinder head screws SRMH
	10 Nm	Bolting torque max
	9 Nm	Bolting torque min
