SRMB01

Measuring instrument rpm SRMB01

Thêm vào yêu cầu báo giá

Digital Output

	SIN COS 1Vpp + reference signal	Electronic interface
≈m	450 g	Weight

Power Supply

	5 Vdc	Supply voltage
	280 mA	Current consumption

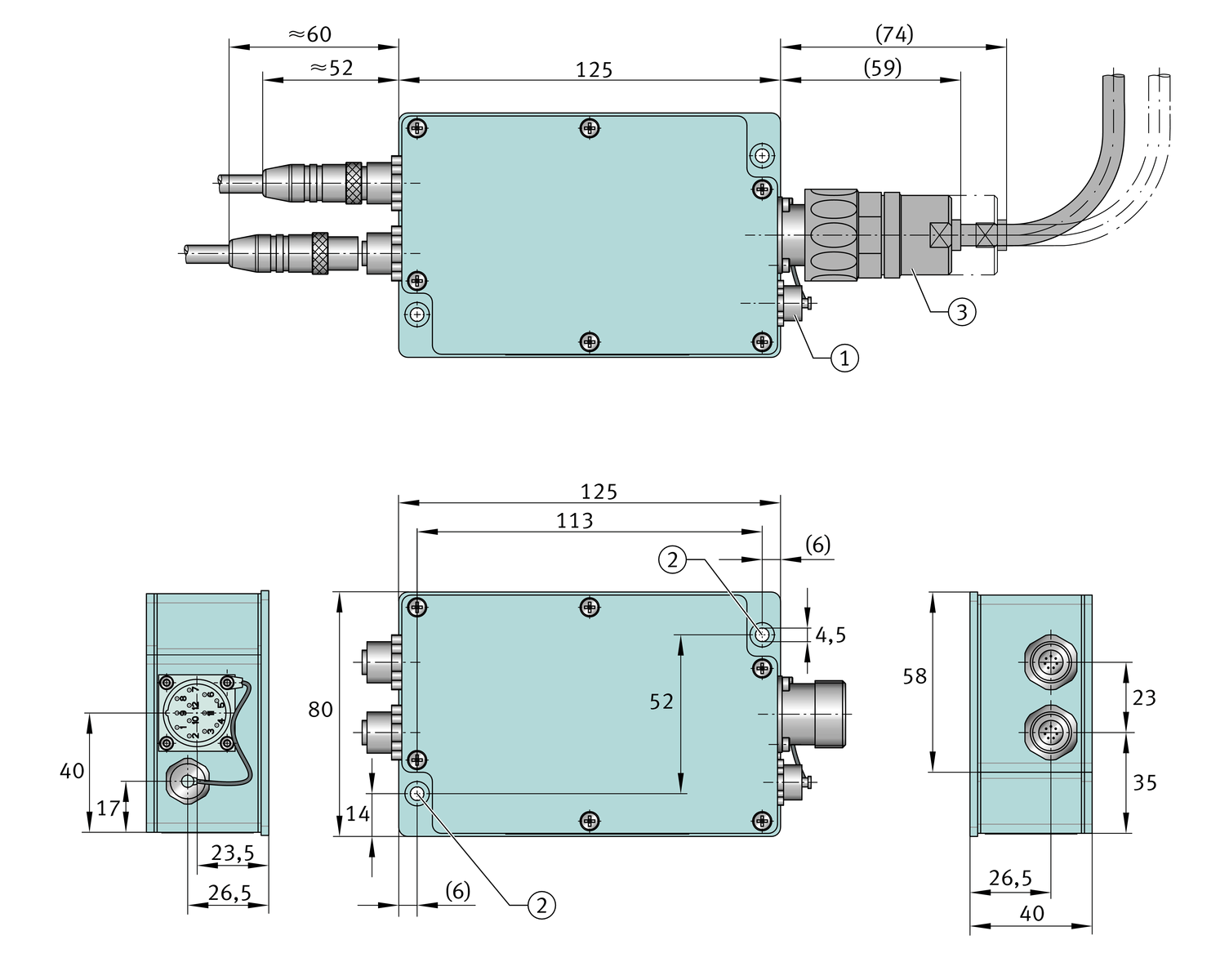

Main dimensions

	125 mm	Length SRMB exclud plugs
	80 mm	Width SRMB
	40 mm	Height SRMB
	236 mm	Length SRMB total

Temperature range

	70 °C	Operating temperature max
	IP 65	Ingress protection
	0 °C	Operating temperature min

Additional information

	ISO4762 M4X10-8.8	Cylinder head screws SRMB

Cable

	M23x1	Thread plug connector
	12	Number pins plug connector
