FAG INA Schaeffler
INA
SK102-207-KRR-B-AH10
Self-aligning deep groove ball bearings SK102-207-KRR-B-AH10
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
DSP
72 mm
Outside diameter
B
37.7 mm
Width
Cr
27,500 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
≈m
469.29 g
Weight

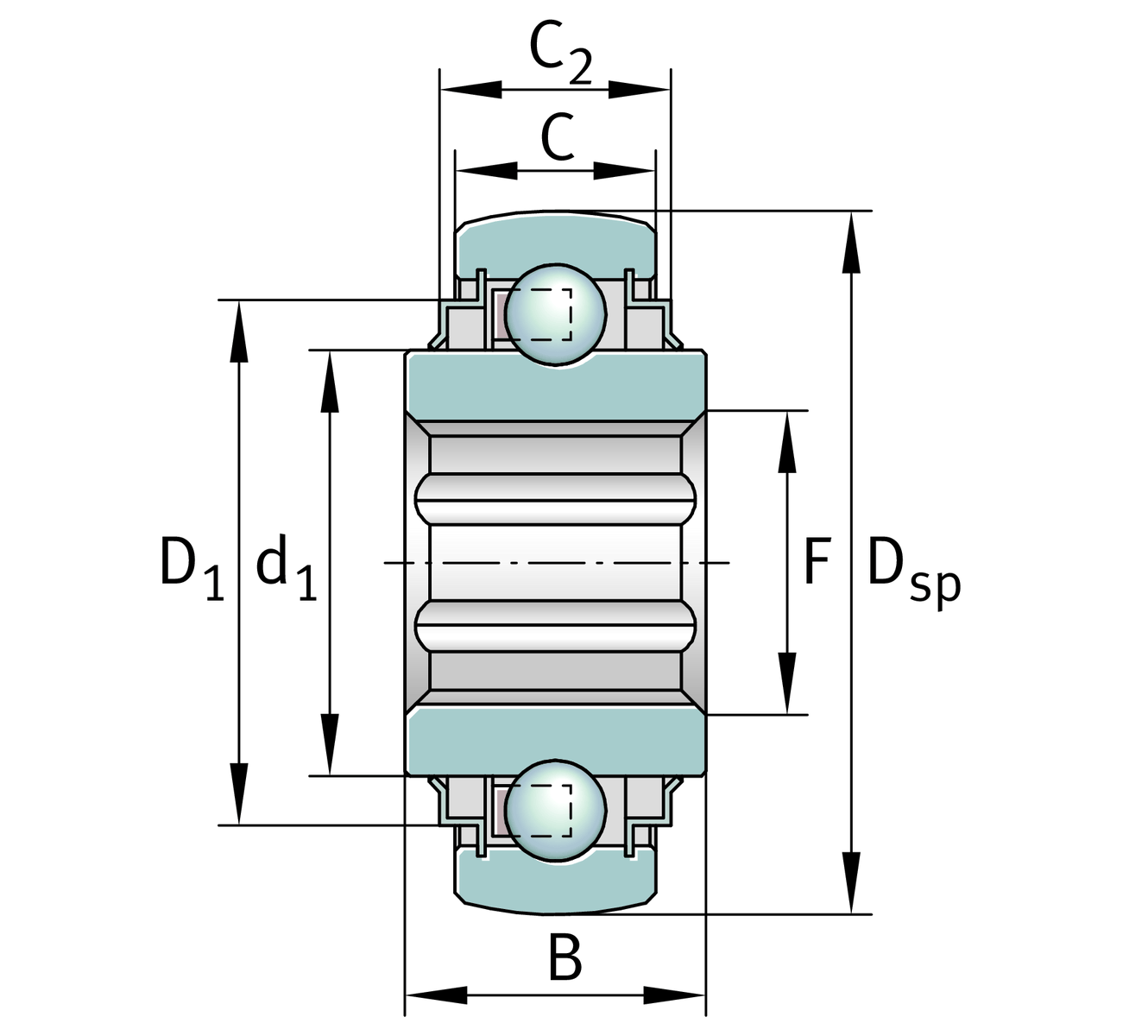

Dimensions
D1
60.3 mm
Outside diameter seal
C
17 mm
Width, outer ring
F
38 mm
Maximum distance hexagonal bore
r
0.25 mm
Radius hexagonal bore
C2
20.5 mm
Sealing total width
d1
46.8 mm
Rib diameter inner ring
d
28.6 mm
Width of flats
0.15 mm
Width across flats upper tolerance
d
28.575 mm
Width across flats (Inch)
0.05 mm
Width across flats lower tolerance

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceBSpherical
Deviating ballset207207
