VLI200544-N-VSP
Slewing ring, Four Point contact bearing, internal gear teeth VLI200544-N-VSP
Thêm vào yêu cầu báo giá

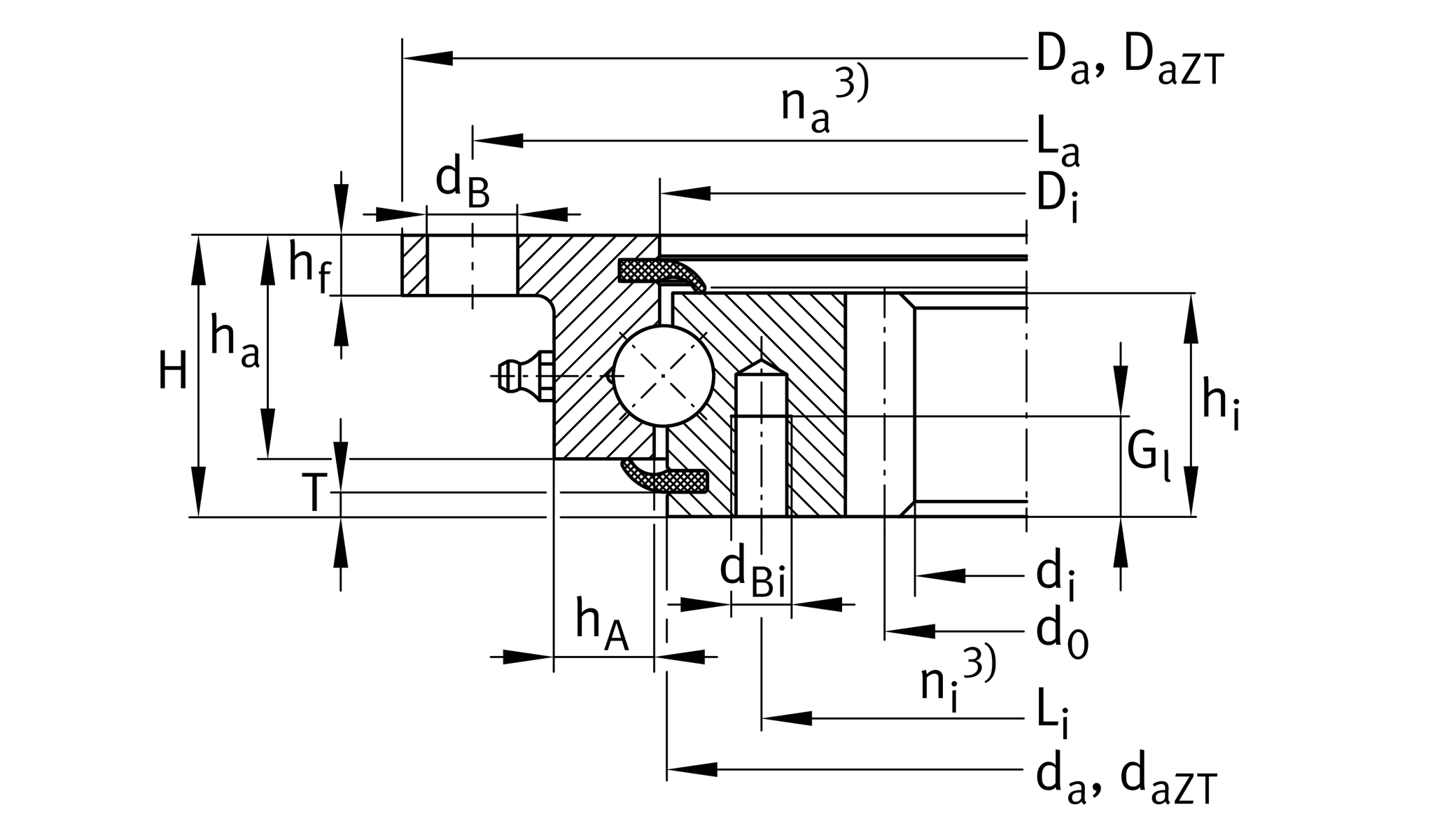

Main Dimensions & Performance Data
d1
444 mm
Bore Diameter
H
56 mm
Height
Da
648 mm
Outside Diameter
-0.5 mm
Outside diameter lower tolerance
0 mm
Outside diameter upper tolerance
-IT8
Diameter centring outer ring tolerance
hf
12 mm
height of flange
ha
44.5 mm
Width outer ring
hi
44.5 mm
Width inner ring
≈m
38 kg
Weight

Dimensions
Di
545.5 mm
Inner diameter outer ring
0.5 mm
Inner diameter outer ring upper tolerance
0 mm
Inner diameter outer ring lower tolerance
La
620 mm
Pitchcircle diameter fixing holes outer ring
na
10
Number of fixing holes in outer ring
dB
18 mm
Fixing bore
da
542.5 mm
Outside diameter inner ring
0 mm
Outside diameter inner ring upper tolerance
-0.5 mm
Outside diameter inner ring lower tolerance
Li
505 mm
Pitchcircle diameter fixing holes inner ring
dBi
M12
Tread fixing bore
Gl
20 mm
Thread depth fixing hole
ni
16
Number of fixing holes in inner ring
Fr zul
66,100 N
Max. radial load fixing screws (friction locking)
m
6 mm
Modul of gearing
z
76
Number of teeth
d0
456 mm
Pitch circle diameter gearing
hA
20 mm
Ring cross section
Fz norm
23,700 N
Max. tooth force root fatigue strenght (at a shock factor of 1,2)
Fz max
35,000 N
Max. tooth force against tooth fracture (at a shock factor of 1,35)

Temperature range
Tmin
-25 °C
Operating temperature min.
Tmax
80 °C
Operating temperature max.

Calculation factors
Ca
152,000 N
Basic dynamic load rating, axial
C0a
385,000 N
Basic static load rating, axial
Cr
138,000 N
Basic dynamic load rating, radial
C0r
144,000 N
Basic static load rating, radial

Your current product variant
GearingNNormalized gear teeth on bearing ring
PreloadVSPBearing with preload
