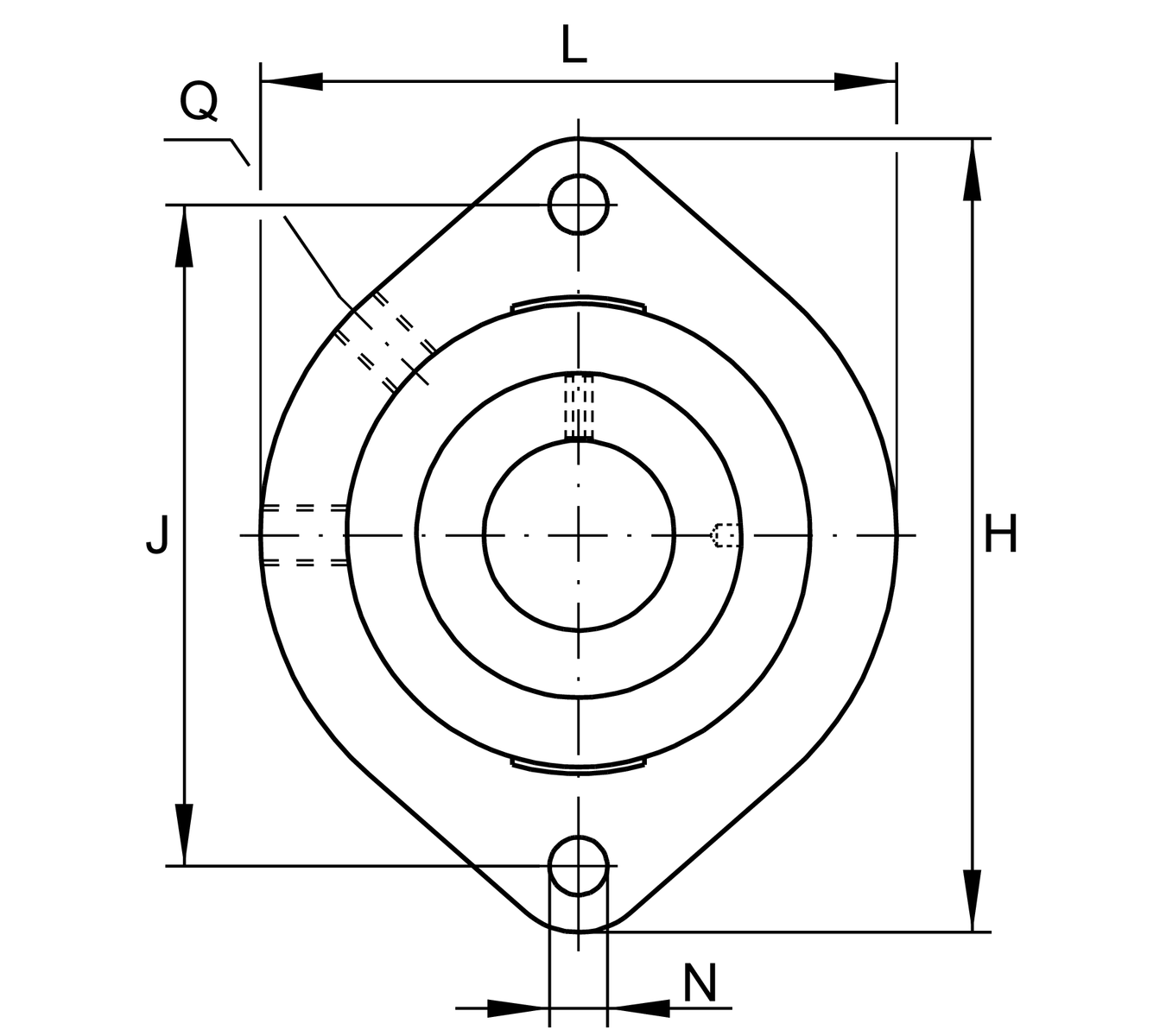

Main Dimensions & Performance Data
| d | 25 mm | Bore diameter |
| L | 71 mm | Flange width |
| H | 97 mm | Height flange |
| U | 33.4 mm | Total height unit |
| Cr | 14,900 N | Basic dynamic load rating, radial |
| C0r | 7,800 N | Basic static load rating, radial |
| ≈m | 0.47 kg | Weight |
Mounting dimensions
| J | 76.2 mm | Distance fixing bore |
| N | 9 mm | Fixing bore |
| W | 3 mm | Width across flats |
| n | 2 | Number of screwing holes |

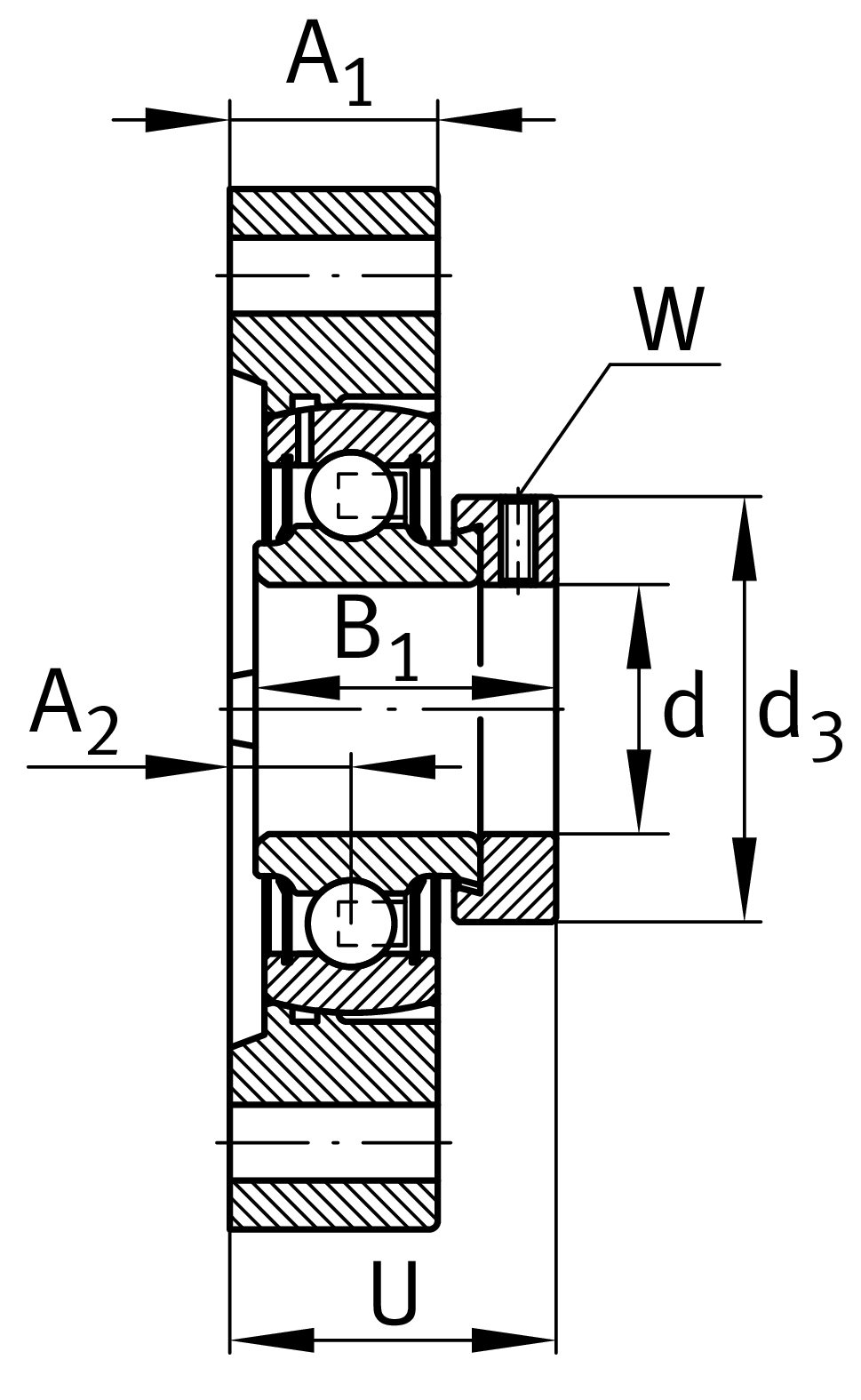

Dimensions
| A1 | 19.5 mm | Thickness of flange |
| A2 | 9.9 mm | Distance raceway |
| B1 | 31 mm | Locking collar total width |
| Q | M6 | Connection thread for lubrication |
| d3 | 37.5 mm | Outside diameter eccentric locking collar |
Additional information
GEHGLCTE05-GG-FA125.1 | Housing | |
GRAE25-XL-NPP-B-FA125.5 | Bearing designation |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Your current product variant
| Material | GG | Grey cast iron |
| Manufacturing instruction | FA125 | Unit with Corrotect coating, corrosion-resistant |
