Main Dimensions & Performance Data
| d | 395 mm | Bore diameter |
0 mm | Bore diameter upper tolerance | |
-0.023 mm | Bore diameter lower tolerance | |
| D | 525 mm | Outside diameter |
0 mm | Outside diameter upper tolerance | |
-0.028 mm | Outside diameter lower tolerance | |
| H | 65 mm | Height |
| Cr | 121,000 N | Basic dynamic load rating, radial |
| C0r | 390,000 N | Basic static load rating, radial |
| Ca | 214,000 N | Basic dynamic load rating, axial |
| C0a | 1,540,000 N | Basic static load rating, axial |
| nG | 650 1/min | Limiting speed |
| ≈m | 32.2 kg | Weight |

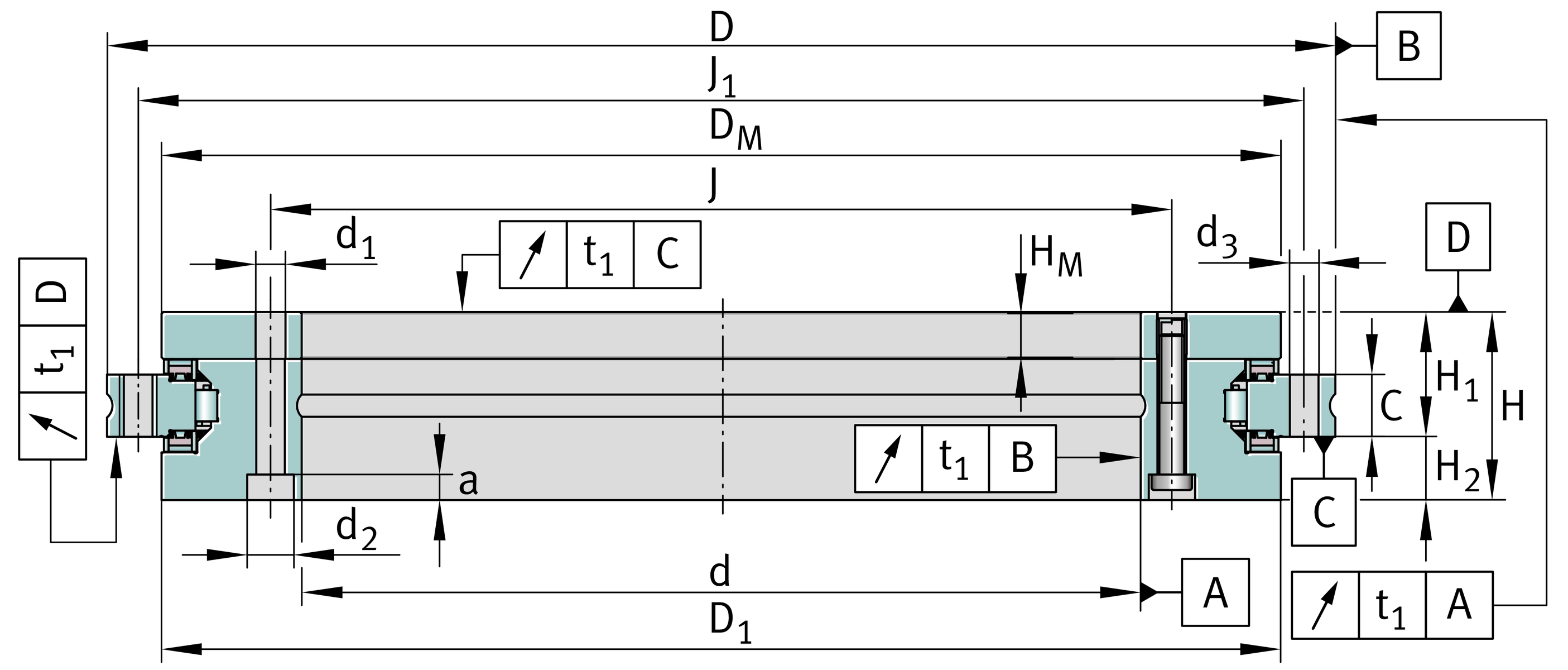

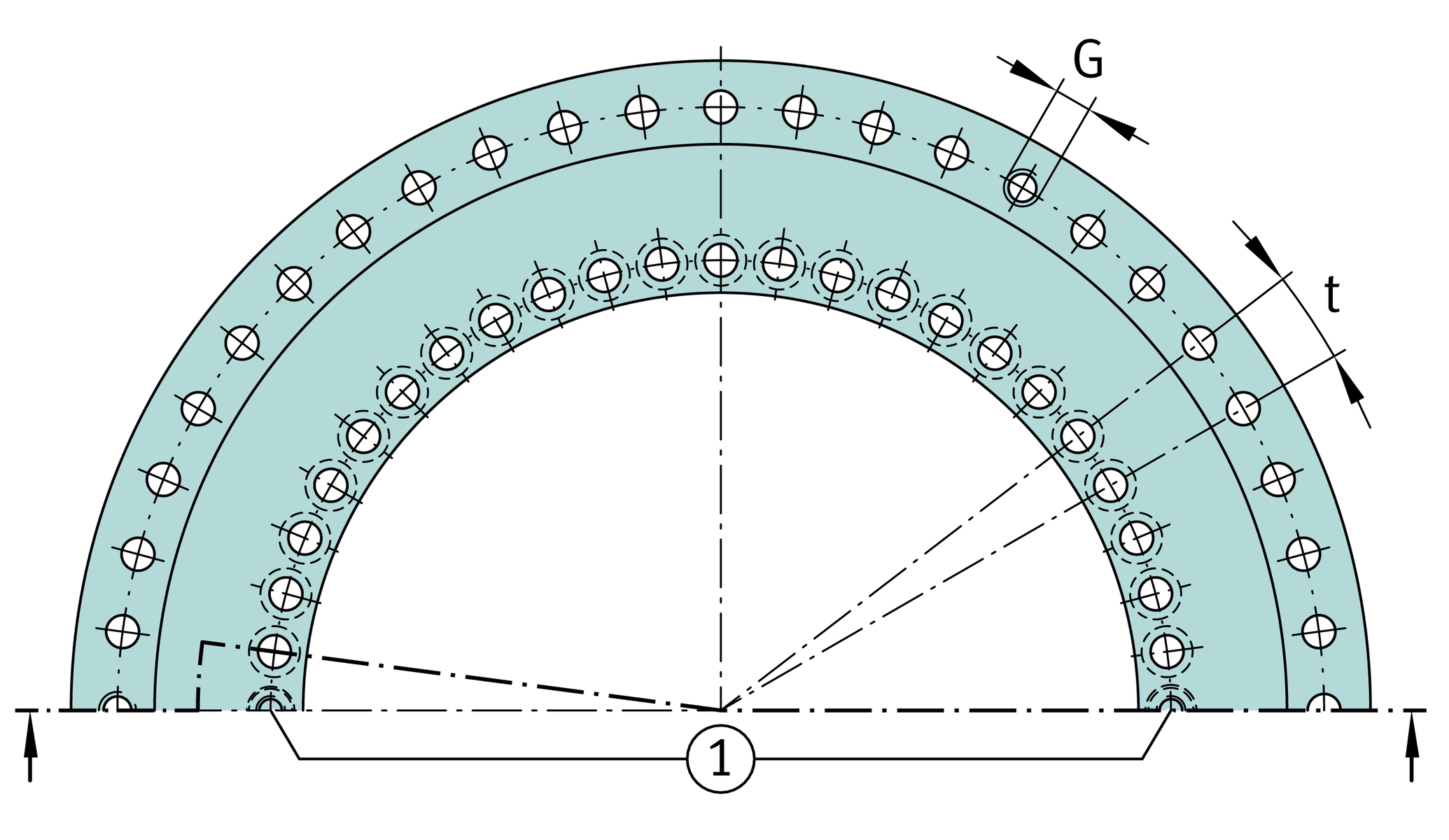

Mounting dimensions
| J | 415 mm | Pitch circle diameter fixing holes in inner ring |
| J1 | 505 mm | Pitch circle diameter fixing holes in outer ring |
| d1 | 9.3 mm | Fixing holes diameter inner ring |
| d2 | 15 mm | Counterbore diameter of fixing holes |
| a | 8.2 mm | Counterbore depth of fixing holes |
46 | Quantity of fixing holes inner ring | |
| d3 | 9.3 mm | Fixing holes diameter outer ring |
45 | Quantity of fixing holes outer ring | |
| n | 48 | Pitch quantity |
| t | 7.5 ° | Pitch separation angle |
| G | M12 | Threaded extraction hole |
3 | Quantity of threaded extraction hole | |
| MA | 34 Nm | Screw tightening torque |
2 | Quantity of retaining screws | |
| t1 | 6 µm | Axial and radial runout, measurement standard; Measured on mounted bearing, with ideal adjacent construction. |
Dimensions
| H1 | 42.5 mm | Height contact face outer ring |
0.06 mm | Height contact face outerring H1 upper tolerance | |
-0.07 mm | Height contact face outerring H1 lower tolerance | |
| H2 | 22.5 mm | Height contact face outer ring |
| HM | 17.5 mm | Height shaft washer |
| D1 max | 487.7 mm | Maximum diameter inner ring |
| DM | 485.02 mm | Diameter of dimensional scale on shaft locating washer |
| C | 20 mm | Width of outer ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| caL | 7,800 N/µm | Axial rigidity of bearing position |
| crL | 2,000 N/µm | Radial rigidity of bearing position |
| ckL | 195,000 Nm/mrad | Tilting rigidity of bearing position |
| caL | 23,400 N/µm | Axial rigidity of rolling element set |
| crL | 8,700 N/µm | Radial rigidity of rolling element set |
| ckL | 582,000 Nm/mrad | Tilting rigidity of rolling element set |
| Mm | 4,254 kg*cm2 | Mass moment of inertia for rotating outer ring |
| Mm | 8,352 kg*cm2 | Mass moment of inertia for rotating inner ring |
