Main Dimensions & Performance Data
| d | 15 mm | Bore diameter |
| B | 13 mm | Width, inner ring |
| Cr | 23,000 N | Basic dynamic load rating, radial |
| C0r | 20,500 N | Basic static load rating, radial |
| Cur | 2,160 N | Fatigue load limit, radial |
| nG | 19,800 1/min | Limiting speed |
| nϑr | 11,000 1/min | Thermal speed rating |
| ≈m | 0.062 kg | Weight |

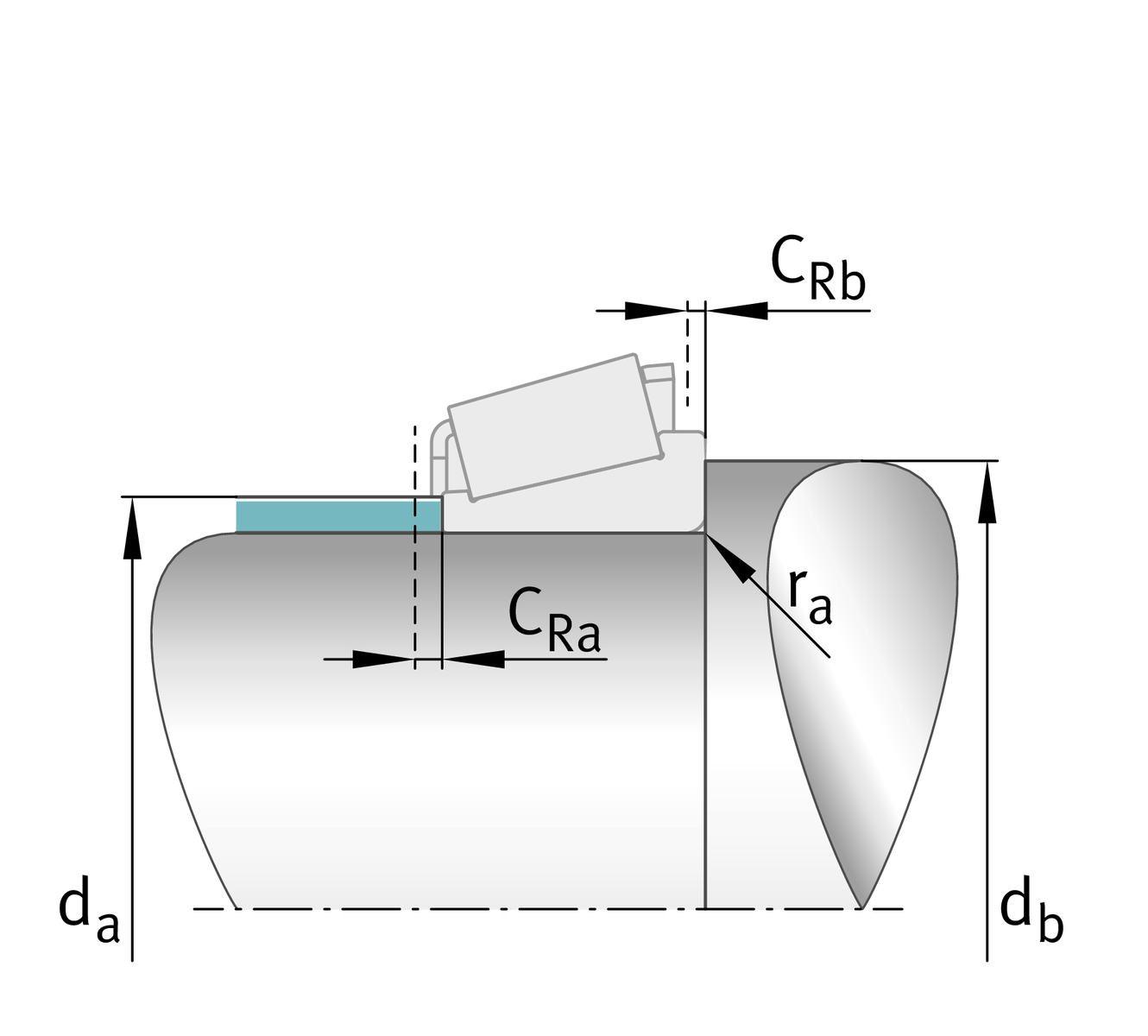

Mounting dimensions
| da max | 22 mm | Maximum diameter of shaft shoulder |
| db min | 21 mm | Minimum diameter of shaft shoulder |
| CRa min | 3.3 mm | Minimum axial space |
| CRb max | 0.2 mm | Maximum axial space |
| ra max | 1 mm | Maximum fillet radius of shaft |

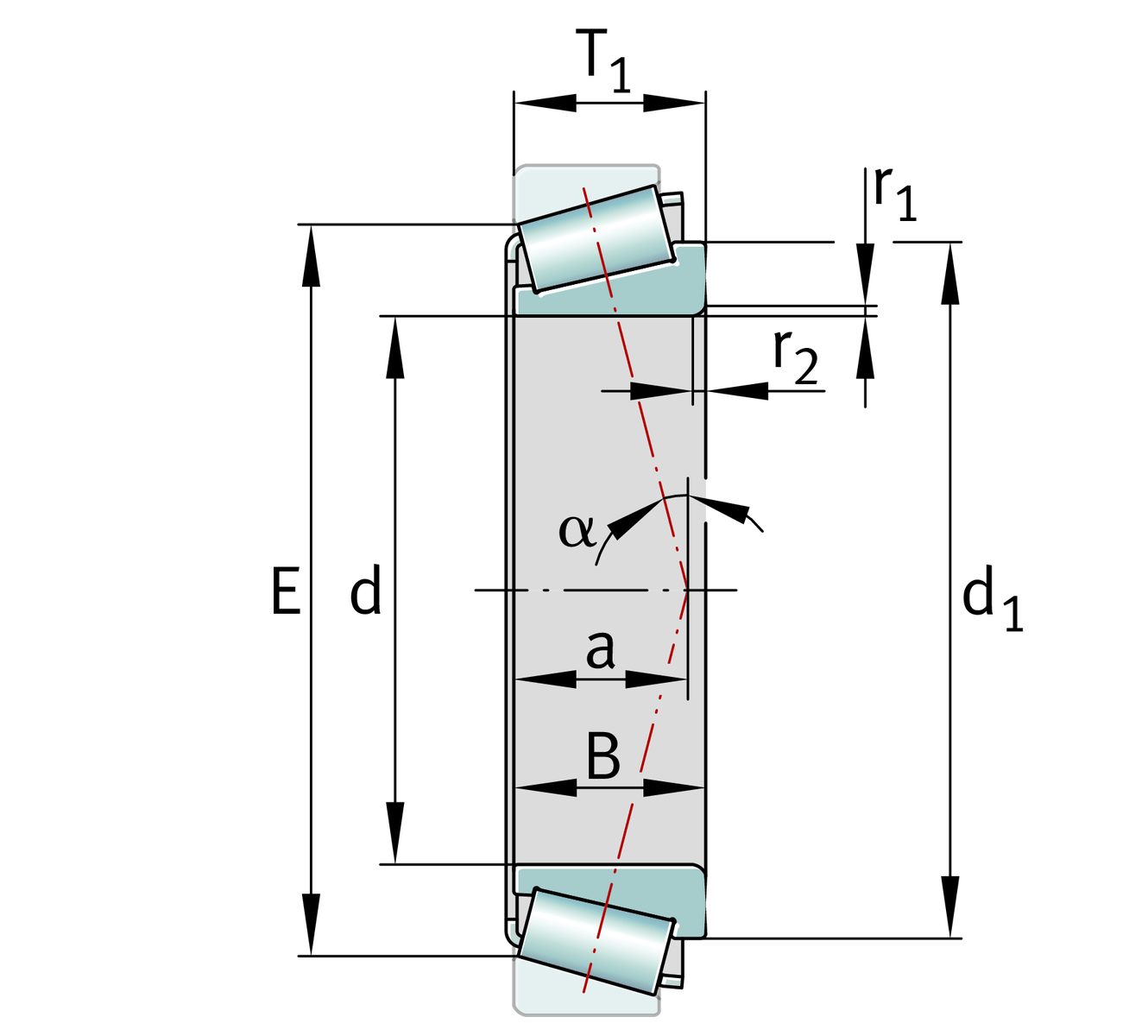

Dimensions
| r1, 2 min | 1 mm | Minimum chamfer dimension of inner ring back face |
| a | 9 mm | Distance between the apexes of the pressure cones |
| d1 | 28.2 mm | Guidance rib diameter of inner ring |
| T1 | 14.25 mm | Width, total of inner subunit assembled with a master outer ring |
| E | 33.272 mm | Inside diameter of outer ring back face |
| α | 10.75806 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Calculation factors
| e | 0.29 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y | 2.11 | Dynamic axial load factor |
| Y0 | 1.16 | Static axial load factor |
Additional information
T2FB015 | Comparative designation to ISO 10317 and ISO 355 |
Your current product variant
| Tolerance class | PN | Normal (ISO 492:2014) |
| Heat treatment | Standard | |
| Cage | Standard | Sheet steel cage, roller-guided |
| Internal design | Standard | |
| Quality level | Standard | |
| Number of rolling element rows | 1 | Single-row design |
